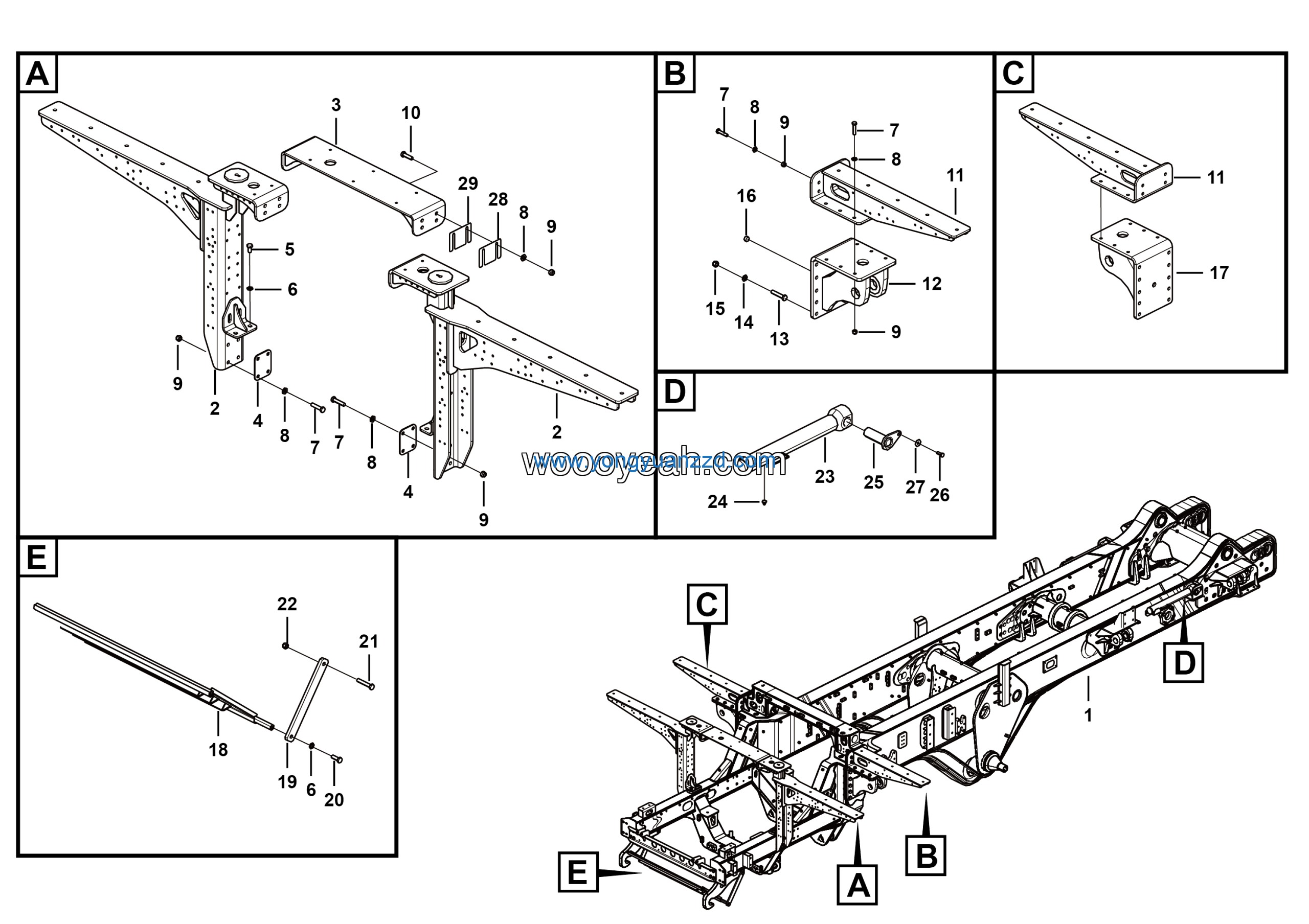

LGMG Off-Highway Dump Truck 2023 – Chasis – I1401-2714018666.S1A
Category: 2023 > Off-Highway Dump Truck > RTH136(EQ) > R1260Y3A0A503
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5786-M16*1.5*55flZnyc-12.9-480 | 4011010640 | 8 |
| 2 | Welded | 27140160983 | 2 |
| 3 | Seat | 27140156253 | 1 |
| 4 | Bolt GB5785-M20*1.5*100flZnyc-12.9-480 | 4011010758 | 20 |
| 5 | Washer GB1230-20flzncy-45-480 | 4015010546 | 40 |
| 6 | Nut GB6185.2-M20*1.5flZnyc-12-480 | 4013010273 | 20 |
| 7 | Cushion block | 27120113681 | 2 |
| 8 | Seat | 27140156273 | 1 |
| 9 | Front guard | 27140187371 | 1 |
| 10 | Linkage 410*50*16 | 27140187411 | 2 |
| 11 | Chasis | 27140186672 | 1 |
| 12 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 4 |
| 13 | Bolt GB5785-M16*1.5*90EpZn-10.9 | 4011000879 | 2 |
| 14 | Nut GB6185.2-M16*1.5EpZn-10 | 4013010171 | 2 |
| 15 | Support | 27140179811 | 2 |
| 16 | Fastening bolt damping block | 27170140901 | 4 |
| 17 | Pin welded | 27140143351 | 2 |
| 18 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 19 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 20 | Plate 180*83*2 | 27140186751 | 4 |
| 21 | Plate 180*83*1 | 27140186761 | 2 |
| 22 | Beam weldment | 27140187322 | 2 |
| 23 | Beam welded | 27140161061 | 1 |
| 24 | Plate | 27140160411 | 2 |
| 25 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 4 |
| 26 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 27 | Bolt GB5785-M16*1.5*70flZnyc-12.9-480 | 4011010598 | 28 |
| 28 | Washer GB1230-16flZnyc-45-480 | 4015010563 | 72 |
| 29 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 36 |
