LGMG Off-Highway Dump Truck 2023 – Chassis electrical system – K2001-2720014710.S1A
Category: 2023 > Off-Highway Dump Truck > MT96L > M096LW3A0M308

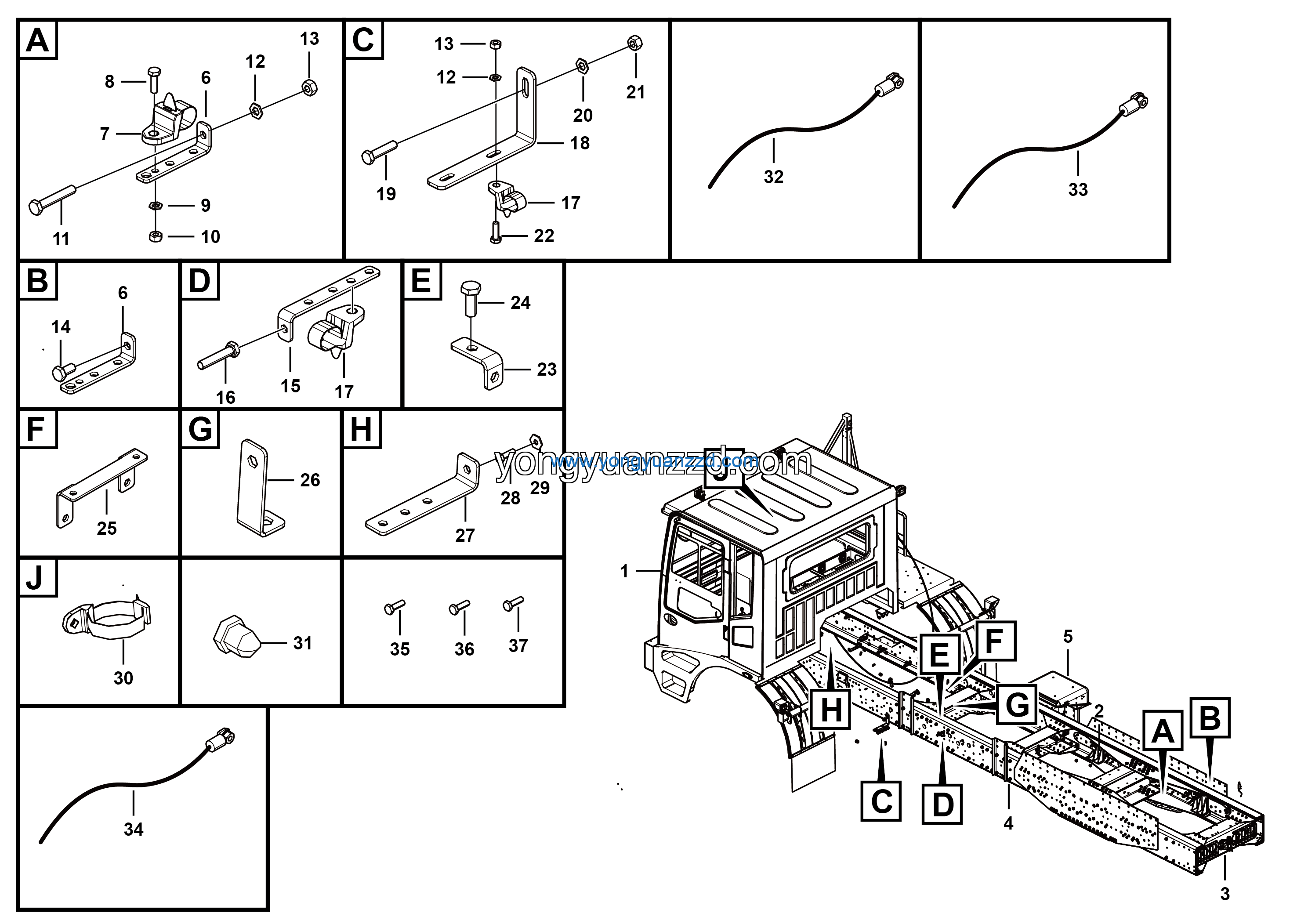

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 46 |
| 2 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 10 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 43 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 43 |
| 5 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 5 |
| 6 | Support | 27020110681 | 5 |
| 7 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 14 |
| 8 | Cable tie 14400342 | 4130703098 | 18 |
| 9 | Plate | 27030144401 | 1 |
| 10 | Bolt GB5783-M14*60EpZn-8.8 | 4011000266 | 1 |
| 11 | Module | 27200142941 | 1 |
| 12 | Washer GB97.1-14EpZn-300HV | 4015000177 | 1 |
| 13 | Nut GB6170-M14EpZn-8 | 4013000013 | 1 |
| 14 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 11 |
| 15 | Holder | 27200142321 | 2 |
| 16 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 17 | Bracket99 | 27200145242 | 1 |
| 18 | Plate | 27200149451 | 1 |
| 19 | Plate | 27340111291 | 3 |
| 20 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 1 |
| 21 | Washer GB96.1-6EpZn-300HV | 4015000198 | 2 |
| 22 | Frame wiring harness | 27200147113 | 1 |
| 23 | Nylon large tie strap HS-J118 | 4130705870 | 1 |
| 24 | Nylon cap nut M8 | 4130705735 | 1 |
| 25 | Line | 27200147372 | 1 |
| 26 | Generator wire p25-8*8*5500-1.8 | 27200147382 | 1 |
| 27 | Line | 27200147521 | 1 |
| 28 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 29 | Bolt GB5783-M8*20-8.8 | 4011000723 | 1 |
| 30 | Bolt GB5783-M6*40flZnyc-10.9-480 | 4011011108 | 1 |
| 31 | System | 27200147141 | 1 |
| 32 | Electrical module in the middle of the chassis | 27200147161 | 1 |
| 33 | System | 27200151511 | 1 |
| 34 | Plate | 27010113352 | 34 |
| 35 | Cable tie HS-J117 | 4130704969 | 32 |
| 36 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 47 |
| 37 | Washer GB97.1-8EpZn-300HV | 4015000072 | 50 |
