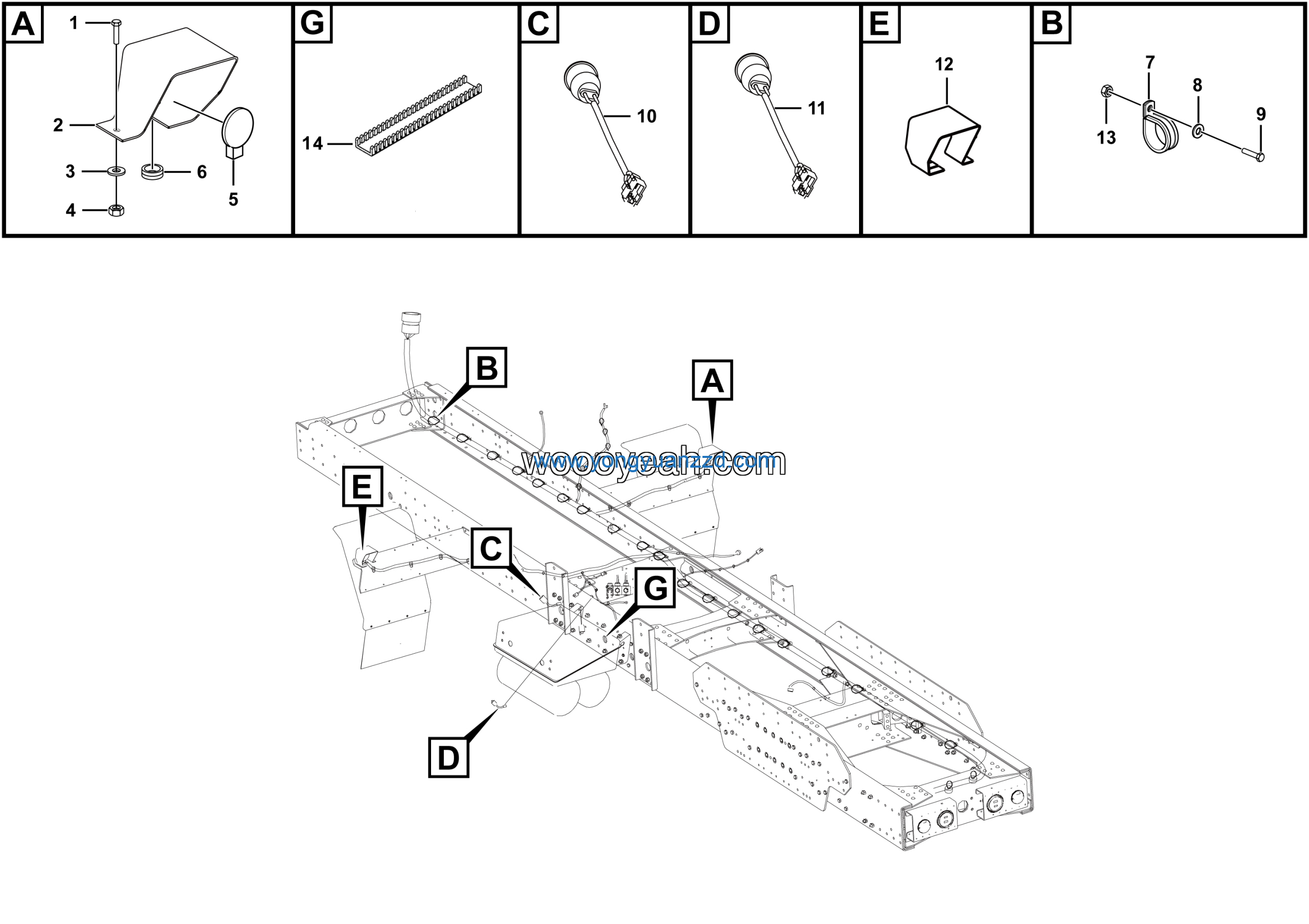

LGMG Off-Highway Dump Truck 2023 – Chassis electricity assy – K2001-2720010752.S1C
Category: 2023 > Off-Highway Dump Truck > MT96H > M096HW3A0A004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Electromagnetic valve air pressure switch 0.3MPa | 4130000007 | 1 |
| 2 | Parking pressure switch 0.55MPa | 4130000006 | 1 |
| 3 | Left lamp guard | 27200102311 | 1 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 5 | Cable protector | 27140108701 | 1 |
| 6 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 7 | Right lamp guard | 27200102321 | 1 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 9 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 10 | LEDWork lamp SM6502 | 4130000659 | 2 |
| 11 | Guard | 27140105031 | 1 |
| 12 | Pipe clamp | 26370001941 | 1 |
| 13 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 14 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
