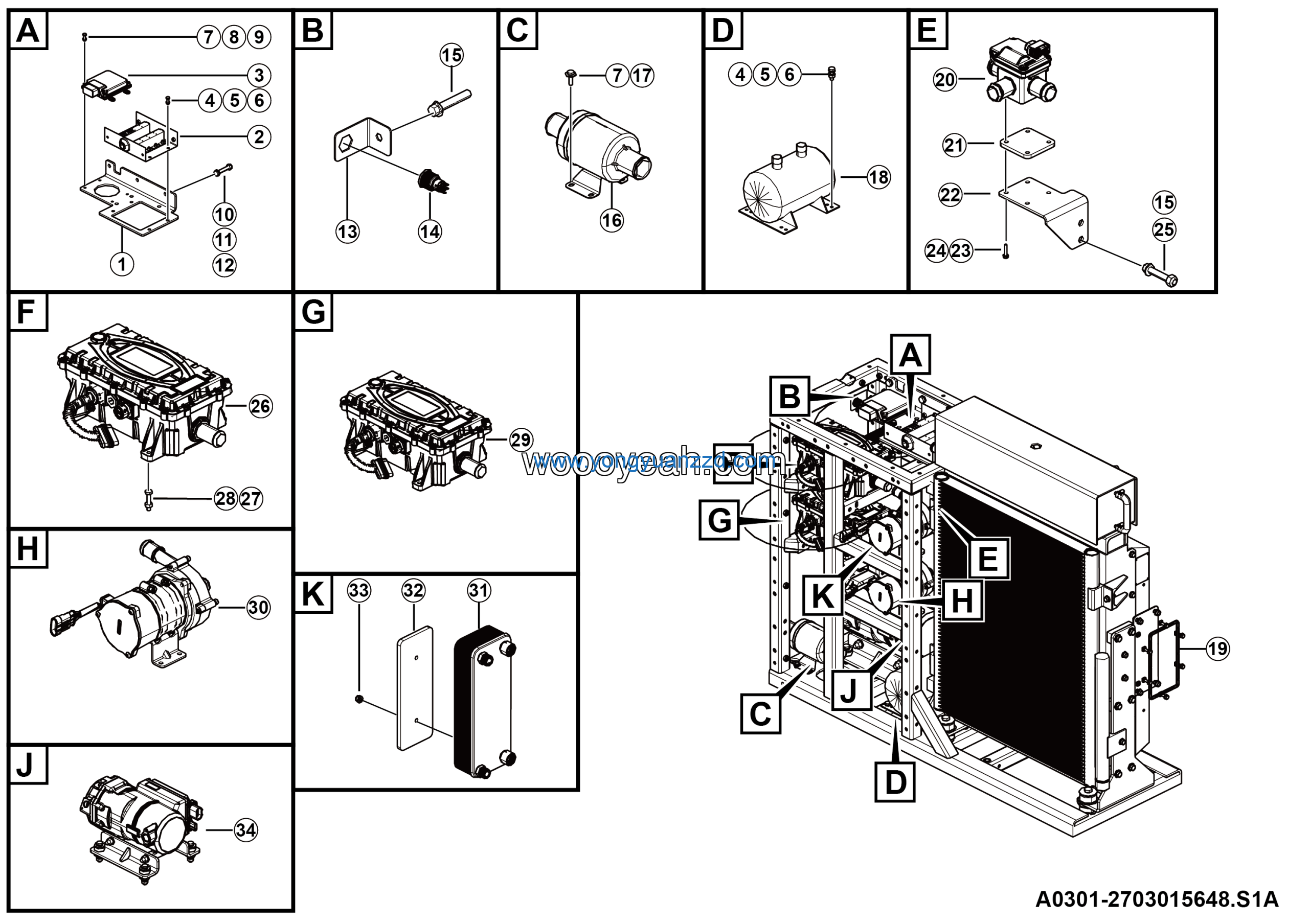

LGMG Off-Highway Dump Truck 2023 – compressor unit – A0301-2703015648.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE86 > C0860E0A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 3 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 3 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 3 |
| 4 | Support | 27030155171 | 1 |
| 5 | Water pump power switch 24V | 4190708858 | 1 |
| 6 | Bolt GB16674.1-M10*55EpZn-8.8 | 4011000473 | 3 |
| 7 | Coolant filter | 4110705783 | 1 |
| 8 | Washer GB96.1-6EpZn-300HV | 4015000198 | 12 |
| 9 | 2.2L Horizontal air/water separator | 4190709132 | 1 |
| 10 | Heat exchangers assy | 27030157011 | 1 |
| 11 | Irregularly shaped bracket 350*186*62*6 | 27030156831 | 1 |
| 12 | Elec three-way valve φ28 | 4190708860 | 1 |
| 13 | Rubber | 27030153321 | 1 |
| 14 | Bracket 110*80*85*4 | 27030156841 | 1 |
| 15 | Bolt GB5783-M4*20EpZn-8.8 | 4011000615 | 4 |
| 16 | Washer GB97.1-4EpZn-300HV | 4015000135 | 4 |
| 17 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 18 | PTC(12kW) | 4130705587 | 1 |
| 19 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 8 |
| 20 | Nut GB6170-M6EpZn-8 | 4013000028 | 8 |
| 21 | PTC(12kW) | 4130705587 | 1 |
| 22 | Box | 4190709034 | 1 |
| 23 | ELEK water pump 240W | 4190708844 | 2 |
| 24 | Heat exchanger 24kW | 4190708843 | 1 |
| 25 | Rubber | 27030153261 | 1 |
| 26 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 2 |
| 27 | Compressor shock absorber assy | 27030156951 | 1 |
| 28 | Thermal management controller 48pin | 4190708861 | 1 |
| 29 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 8 |
| 30 | Washer GB97.1-8EpZn-300HV | 4015000072 | 18 |
| 31 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 32 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 16 |
| 33 | Washer GB97.1-6EpZn-300HV | 4015000207 | 20 |
| 34 | Nut GB6185.1-M6EpZn-8 | 4013010117 | 12 |
