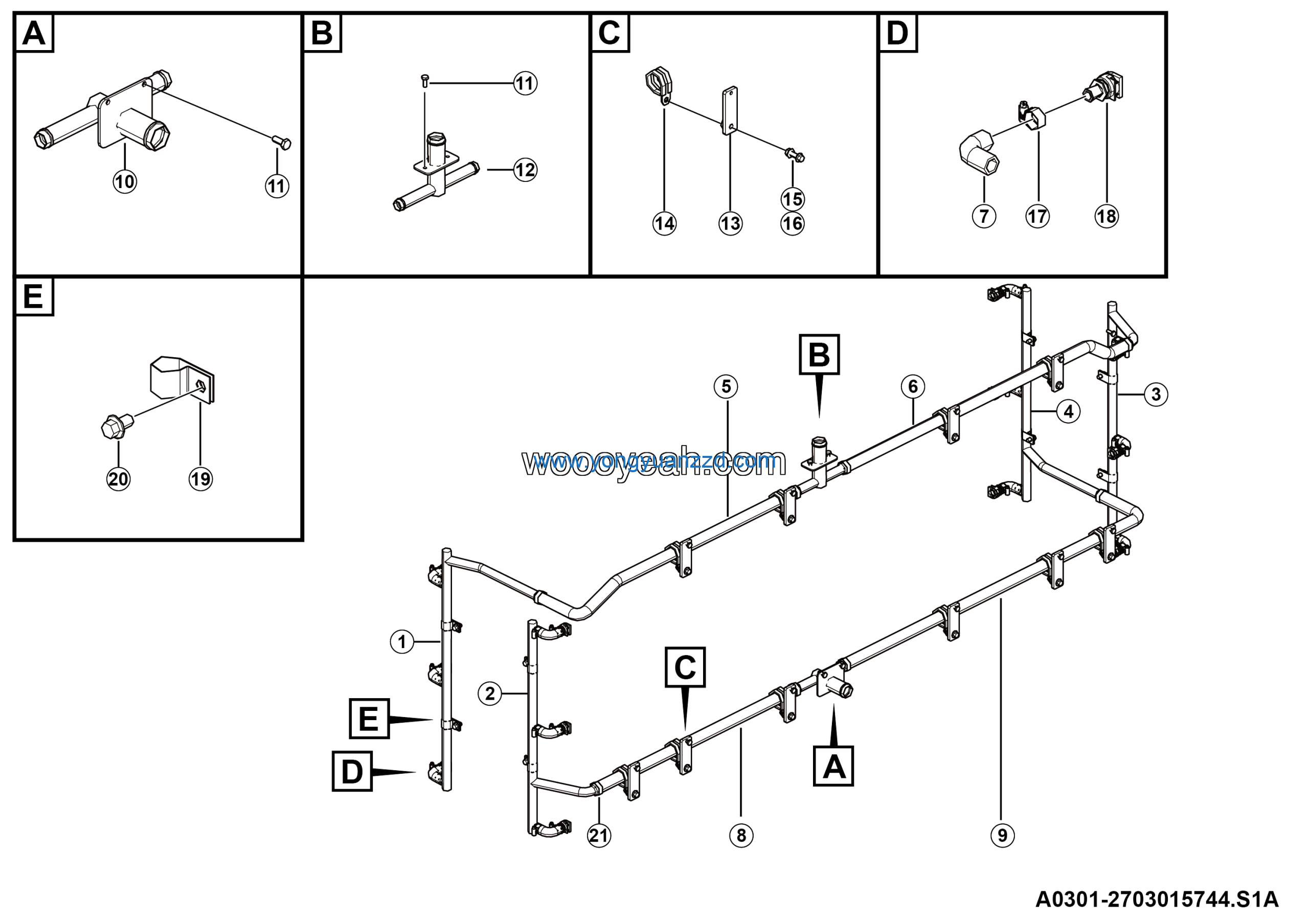

LGMG Off-Highway Dump Truck 2023 – Cooling lines assy (right battery) – A0301-2703015744.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE86 > C0860E0A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Battery water oulet manifold | 27030156631 | 1 |
| 2 | Bolt GB5783-M8*20-8.8 | 4011000723 | 15 |
| 3 | Battery water inlet manifold | 27030156681 | 1 |
| 4 | Bracket welding | 27030153161 | 10 |
| 5 | Pipe clamp R-D40-M10 | 4190707973 | 10 |
| 6 | Bolt GB16674.1-M10*35EpZn-8.8 | 4011000164 | 10 |
| 7 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 10 |
| 8 | Hose clamp JB8870-D25 | 4017000015 | 24 |
| 9 | Battery quick joint NW12-ID12-180° | 4190708866 | 12 |
| 10 | Clamp R-D26-M10 | 4190707971 | 8 |
| 11 | Battery rear water inlet branch | 27030157521 | 1 |
| 12 | Bolt GB16674.1-M10*16EpZn-8.8 | 4011000488 | 8 |
| 13 | Clamp φ17-φ38 | 4190708280 | 8 |
| 14 | Battery rear water return branch | 27030157511 | 1 |
| 15 | Battery front water inlet branch | 27030157531 | 1 |
| 16 | Battery water return branch | 27030157501 | 1 |
| 17 | Hose 33*996 | 27030157571 | 1 |
| 18 | Hose 33*1123 | 27030157581 | 1 |
| 19 | Hose | 27030153071 | 12 |
| 20 | Hose 33*784 | 27030157491 | 1 |
| 21 | Hose 33*1307 | 27030157461 | 1 |
