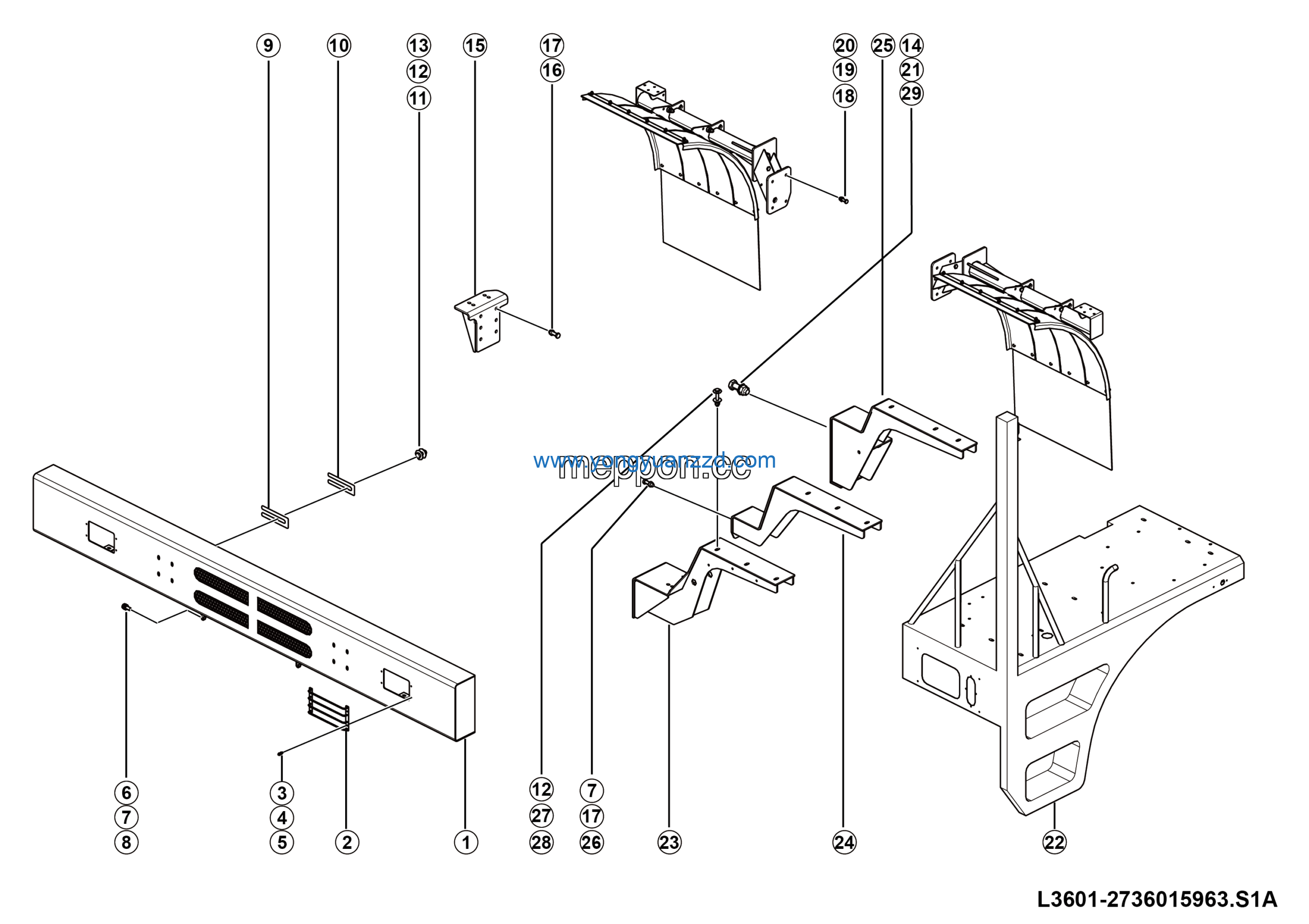

LGMG Off-Highway Dump Truck 2023 – Cover assembly – L3601-2736015963.S1A
Category: 2023 > Off-Highway Dump Truck > MT60 > M060DW3E0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Adjustment shim 1 | 27130111491 | 4 |
| 2 | Bolt GB5783-M14*40EpZn-8.8 | 4011000814 | 8 |
| 3 | Washer GB96.1-14EpZn-300HV | 4015000188 | 34 |
| 4 | Nut GB6170-M14EpZn-8 | 4013000013 | 17 |
| 5 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 6 |
| 6 | THE BACK DOOR AND FLOOR | 27360113861 | 1 |
| 7 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 6 |
| 8 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 9 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 8 |
| 10 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 11 | RIGHT PANEL ASSEMBLY | 27360113882 | 1 |
| 12 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 13 | Washer GB97.1-14EpZn-300HV | 4015000177 | 6 |
| 14 | Fixed LH platform | 4190708876 | 1 |
| 15 | SIGN | 27360116281 | 1 |
| 16 | The former case board | 27360142131 | 1 |
| 17 | Backstage welding | 27360159691 | 1 |
| 18 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 2 |
| 19 | Bolt GB5782-M14*90EpZn-8.8 | 4011000420 | 9 |
| 20 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 9 |
| 21 | Bolt GB5783-M14*45EpZn-10.9 | 4011000820 | 6 |
| 22 | Fog light protecting cap | 27130102161 | 2 |
| 23 | Bolt GB16674.1-M5*20EpZn-8.8 | 4011010518 | 8 |
| 24 | Washer GB97.1-5EpZn-300HV | 4015000110 | 8 |
| 25 | Nut GB6170-M5EpZn-8 | 4013010029 | 8 |
| 26 | Bolt GB5786-M16*1.5*40EpZn-8.8 | 4011000126 | 2 |
| 27 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 28 | Trim washer | 27130104412 | 2 |
| 29 | Adjustment shim 2 | 27130111501 | 4 |
