LGMG Off-Highway Dump Truck 2023 – Covering assy – L3602-2736015472
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M020

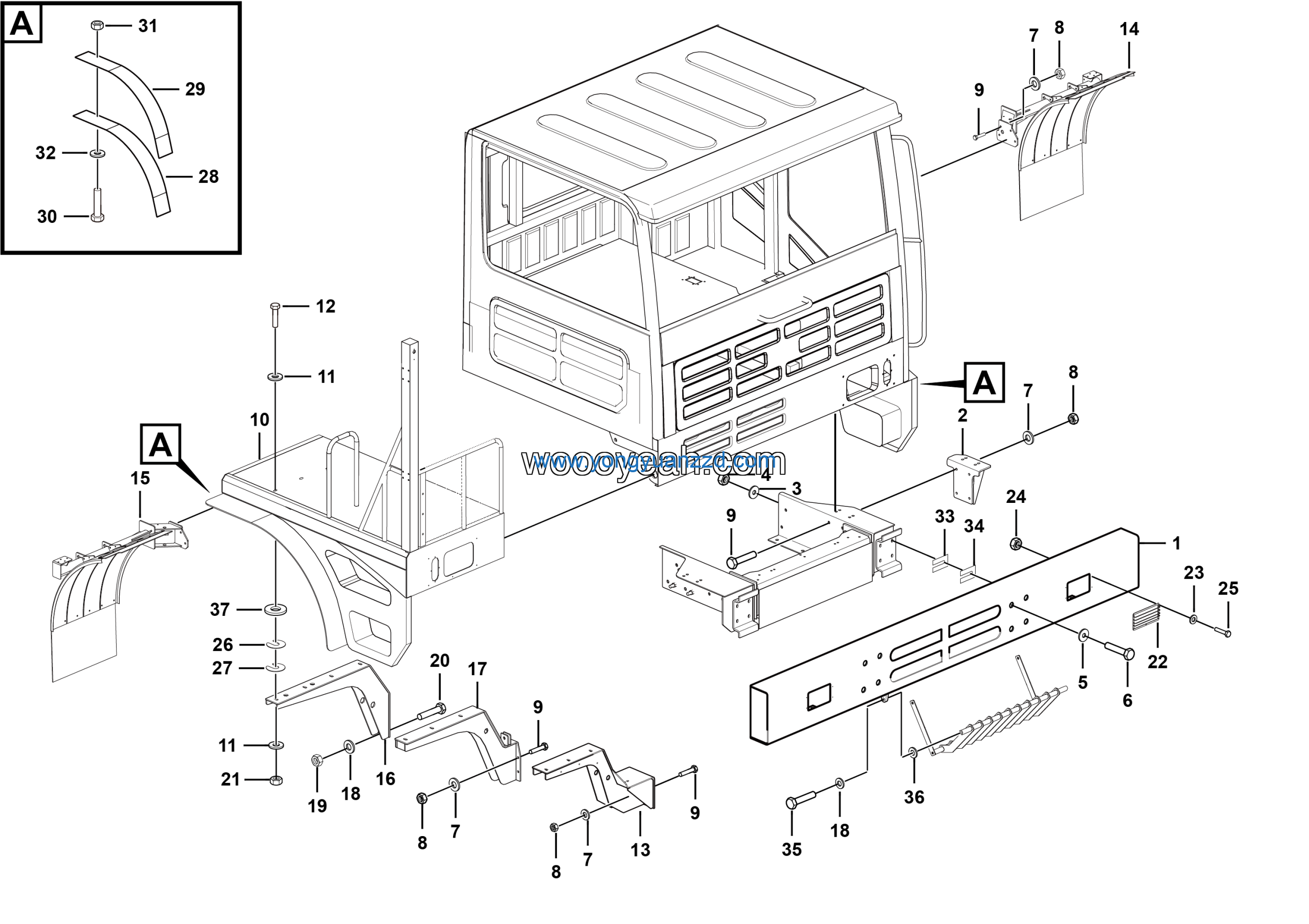

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fixed RH platform LG13-JSS-8510 | 4190708510 | 1 |
| 2 | Washer GB96.1-14EpZn-300HV | 4015000188 | 18 |
| 3 | Bolt GB5782-M14*100EpZn-8.8 | 4011010155 | 9 |
| 4 | Platform front bracket assy | 27360120681 | 1 |
| 5 | Left mudguard tile assembly | 27360153441 | 1 |
| 6 | Right mudguard tile assembly | 27360153451 | 1 |
| 7 | Platform rear bracket assy | 27360120651 | 1 |
| 8 | Platform middle bracket assy | 27360120752 | 1 |
| 9 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 10 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 11 | Bumper assembly | 27130114152 | 1 |
| 12 | Bolt GB5783-M16*55EpZn-10.9 | 4011000562 | 6 |
| 13 | Nut GB6170-M14EpZn-8 | 4013000013 | 9 |
| 14 | Fog light protecting cap | 27130102161 | 2 |
| 15 | Washer GB97.1-5EpZn-300HV | 4015000110 | 8 |
| 16 | Nut GB6170-M5EpZn-8 | 4013010029 | 8 |
| 17 | Bolt GB16674.1-M5*20EpZn-8.8 | 4011010518 | 8 |
| 18 | Adjustment shim 2 | 27130113181 | 3 |
| 19 | Adjustment shim 1 | 27130113171 | 3 |
| 20 | Mudflap supporting plate | 27360112581 | 2 |
| 21 | Rubber | 27360112601 | 2 |
| 22 | Front support base | 27130102495 | 1 |
| 23 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 12 |
| 24 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 25 | Washer GB96.1-8EpZn-300HV | 4015000256 | 24 |
| 26 | Trimmed gasket | 27130107671 | 4 |
| 27 | Trimmed gasket | 27130107681 | 4 |
| 28 | Bolt GB5786-M16*1.5*50EpZn-8.8 | 4011000244 | 2 |
| 29 | Trim washer | 27130104412 | 2 |
| 30 | Rubber mat | 27130103912 | 9 |
| 31 | Washer GB1230-16EpZn-45 | 4015000001 | 8 |
| 32 | Nut GB6170-M16EpZn-8 | 4013000016 | 8 |
| 33 | Washer GB96.1-16EpZn-300HV | 4015000279 | 8 |
| 34 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 8 |
| 35 | Washer GB97.1-14EpZn-300HV | 4015000177 | 14 |
| 36 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 23 |
| 37 | Bolt GB5783-M14*60EpZn-8.8 | 4011000266 | 14 |
