LGMG Off-Highway Dump Truck 2023 – Coverings electrical module – K2001-2720014515
Category: 2023 > Off-Highway Dump Truck > CMT106 > C1060W3E0A011

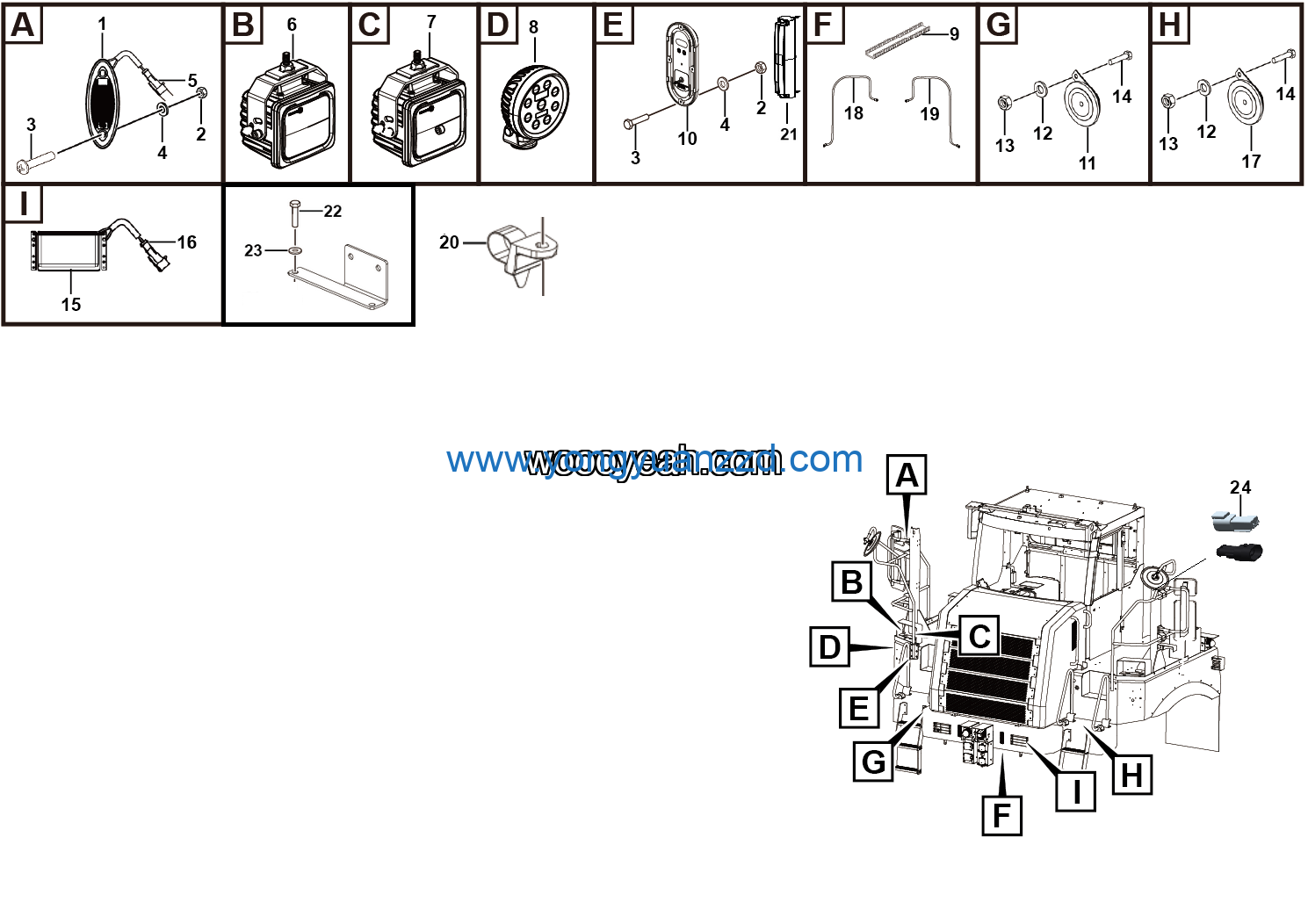

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering lamp DI-621 | 4130001146 | 2 |
| 2 | Monophonic disc woofer | 4130000906 | 1 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 5 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 6 | LED Fog lamp SM6053（three pin plug） | 4130000921 | 2 |
| 7 | Cmt fog lamp | 27200106591 | 1 |
| 8 | Monophonic disc wooFer（treble） | 4130000907 | 1 |
| 9 | Left platform wire | 27200107571 | 1 |
| 10 | Wire | 27200145171 | 1 |
| 11 | SMG-011 Side marker lamp 3112040324 | 4130001148 | 2 |
| 12 | Cable tie 14400342 | 4130703098 | 4 |
| 13 | Daytime running lamp | 4130001212 | 2 |
| 14 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 4 |
| 15 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 16 | Wire | 27200145181 | 1 |
| 17 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 16 |
| 18 | Bolt GB5783-M4*20EpZn-8.8 | 4011000615 | 16 |
| 19 | Washer GB97.1-4EpZn-300HV | 4015000135 | 16 |
| 20 | Wire | 27200107861 | 1 |
| 21 | Spotlamp work lamp WK-55HL（3312040131） | 4130001153 | 2 |
| 22 | Floodlamp work lamp WK-55HL（3312040210） | 4130001152 | 2 |
| 23 | White lamp work lamp WK-005 | 4130001150 | 2 |
| 24 | Fagging | 27130123361 | 2 |
