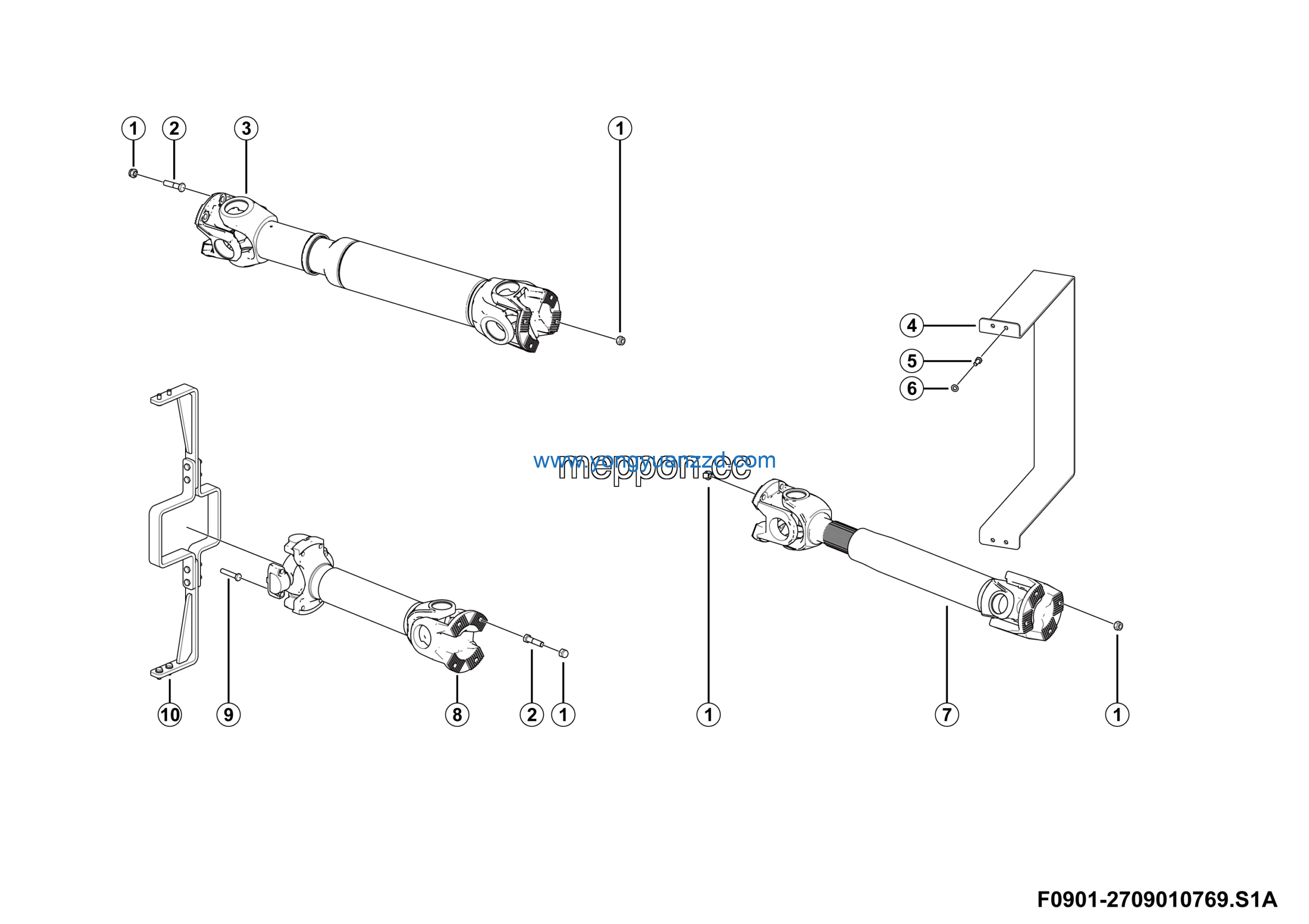

LGMG Off-Highway Dump Truck 2023 – Drive shafts installation – F0901-2709010769.S1A
Category: 2023 > Off-Highway Dump Truck > RT100 > R1000W3A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Drive shaft protection installation | 27090107701 | 1 |
| 2 | Nut GB6185.2-M14*1.5flZnyc-12-480 | 4013010568 | 20 |
| 3 | Bolt GB5785-M14*1.5*55flZnyc-12.9-480 | 4011011613 | 8 |
| 4 | Mid transmission shaft | 4110000957 | 1 |
| 5 | Drive shaft lwr guard | 27090107751 | 1 |
| 6 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 4 |
| 7 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 8 | RR trabsmission shaft-LG82-HCDZ-945 | 4110705663 | 1 |
| 9 | FR drive shaft LG09-QCDZ-680 | 4110707443 | 1 |
| 10 | Bolt GB5783-M12*60flZnyc-12.9-480 | 4011011681 | 4 |
