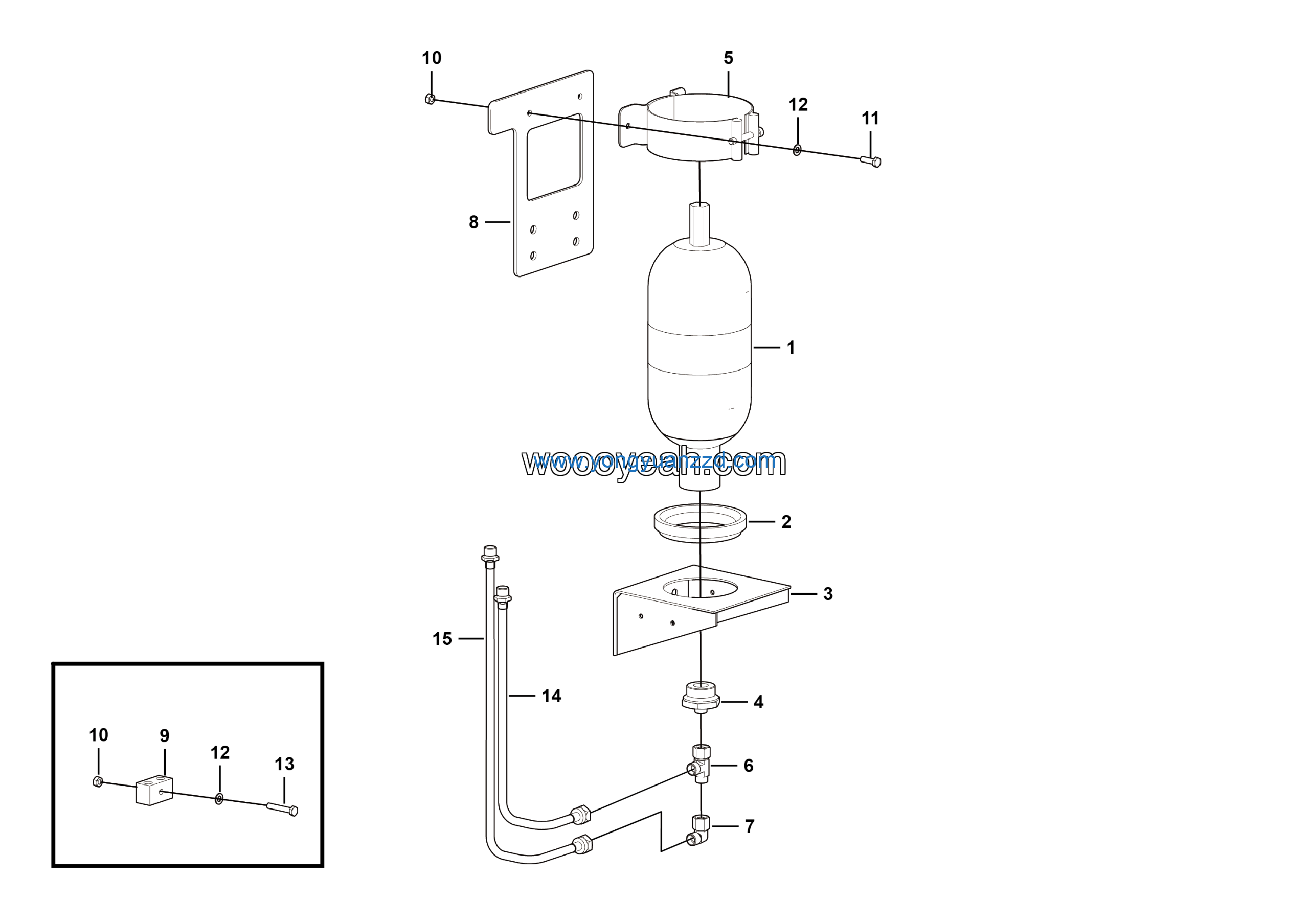

LGMG Off-Highway Dump Truck 2023 – Driving accumulator assy（2.5L） – J1001-2710012014
Category: 2023 > Off-Highway Dump Truck > RTH136(EQ) > R1260Y3A0A504
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 3 |
| 2 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 3 |
| 4 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 1 |
| 5 | Steel tube | 27100120181 | 1 |
| 6 | Steel tube | 27100120161 | 1 |
| 7 | Accumulator NXQ-A-2.5/31.5-L-Y | 4120001987 | 1 |
| 8 | Gasket | 4120703204 | 1 |
| 9 | Bracket | 27100110261 | 1 |
| 10 | Nipple | 23220000531 | 1 |
| 11 | Accumulator clamp | 4120000736 | 1 |
| 12 | Tee CC-18 | 4190000997 | 1 |
| 13 | Combination joint LGB143-01810 | 4041001063 | 1 |
| 14 | Armor plate | 27100120152 | 1 |
| 15 | Clamp TTPG4-112 | 4120708220 | 1 |
