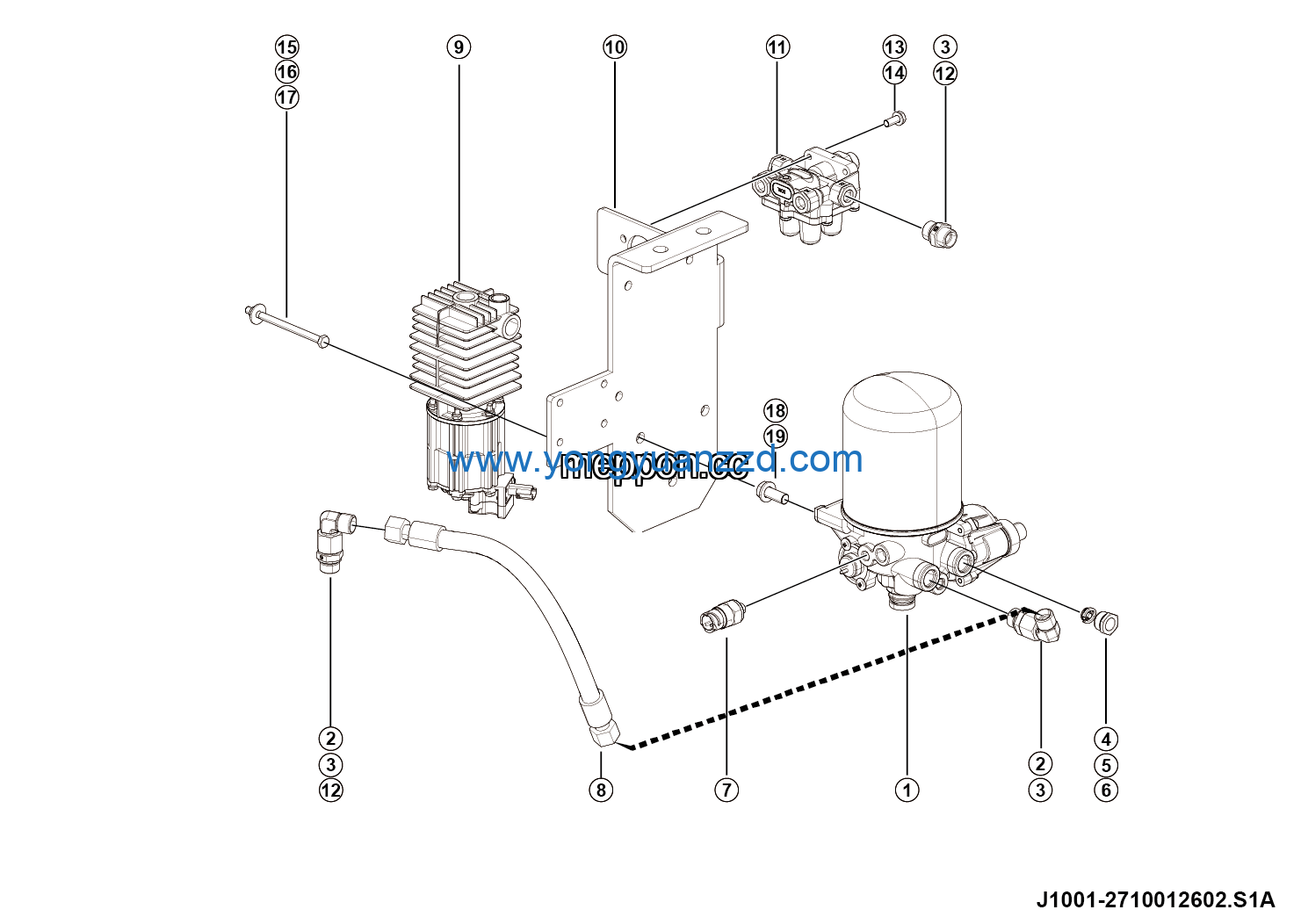

LGMG Off-Highway Dump Truck 2023 – Dryer and condenser assy – J1001-2710012602.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE86 > C0860E0A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bent plate | 27100126031 | 1 |
| 2 | Protection valve 35150083730 | 4120707080 | 1 |
| 3 | O-ring LGB168-11924 | 4041000771 | 3 |
| 4 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 5 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 6 | Bolt GB5782-M8*120EpZn-8.8 | 4011000697 | 4 |
| 7 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 9 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 3 |
| 10 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 11 | Multifunctional dryer 35110085540 | 4120711952 | 1 |
| 12 | Combination joint LGB143-02213 | 4041001156 | 3 |
| 13 | Straight joint LGB177-02222 | 4041010528 | 3 |
| 14 | Nut seat NG12 | 4120000190 | 1 |
| 15 | Clip spring NG12 | 4120000192 | 1 |
| 16 | Elastic element NG12 | 4120000193 | 1 |
| 17 | Differential pressure sensor 37570060580 | 4120711953 | 1 |
| 18 | Steel wire hose-450 | 2710012559-002 | 1 |
| 19 | Condenser 35290040020 | 4120710291 | 1 |
