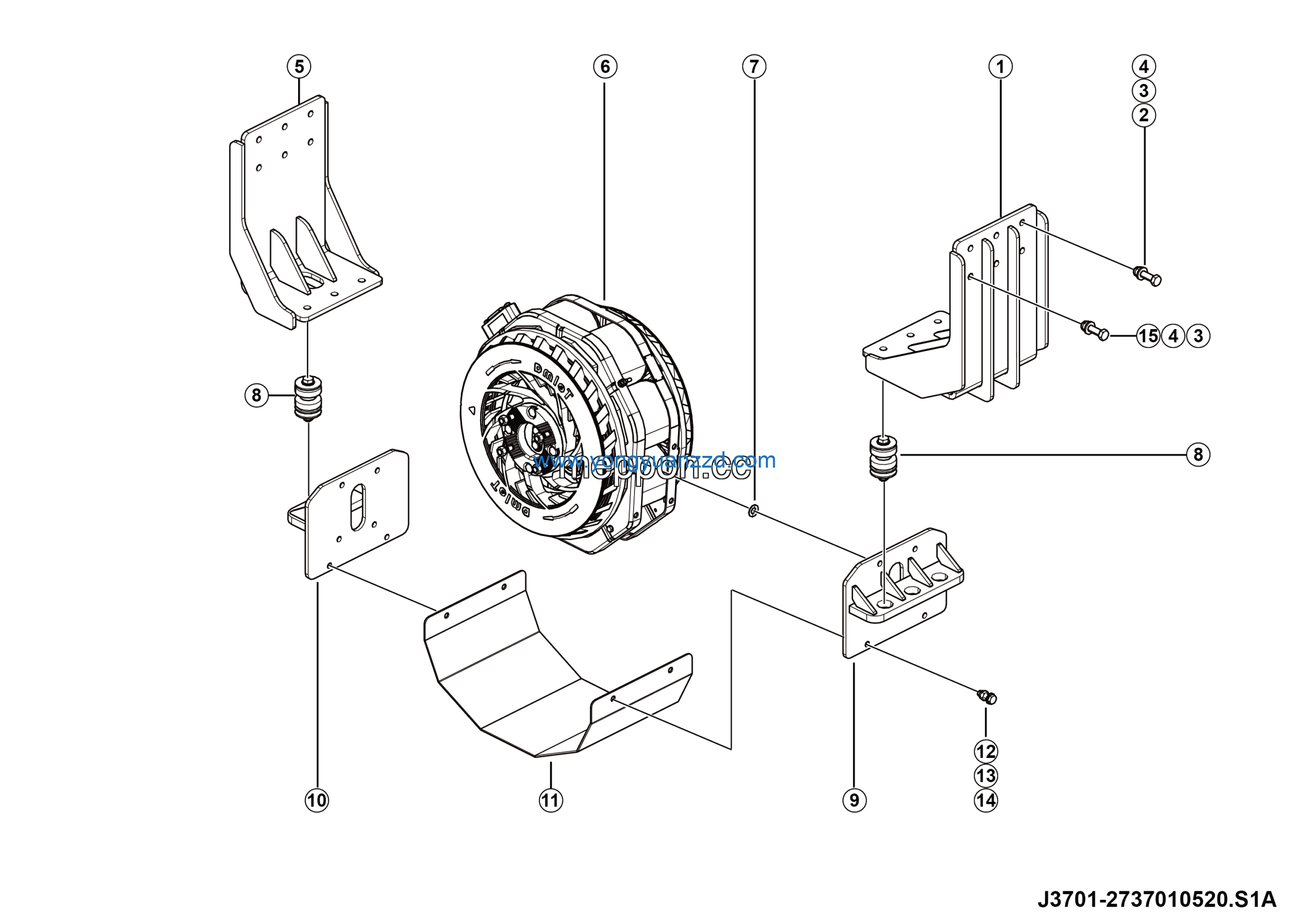

LGMG Off-Highway Dump Truck 2023 – Eddy current retarder assy – J3701-2737010520.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A402
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Right leg weldment | 27370105241 | 1 |
| 2 | Fender | 27370105261 | 1 |
| 3 | Bolt GB5783-M14*40EpZn-8.8 | 4011000814 | 4 |
| 4 | Washer GB97.1-14EpZn-300HV | 4015000177 | 4 |
| 5 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 4 |
| 6 | Bolt GB5785-M16*1.5*75flZnyc-12.9-480 | 4011010587 | 2 |
| 7 | Left support weldment | 27370105251 | 1 |
| 8 | Bolt GB5785-M16*1.5*65flZnyc-12.9-480 | 4011010698 | 10 |
| 9 | Washer GB1230-16flZnyc-45-480 | 4015010563 | 12 |
| 10 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 12 |
| 11 | Right support welding | 27370105221 | 1 |
| 12 | Electromagnetic retarder | 4110001635 | 1 |
| 13 | Conical shim | 4110001136 | 8 |
| 14 | Rubber cushion assy | 4110001135 | 6 |
| 15 | Left leg weldment | 27370105211 | 1 |
