LGMG Off-Highway Dump Truck 2023 – Electrical assembly – K2001-2720014905.S
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A409

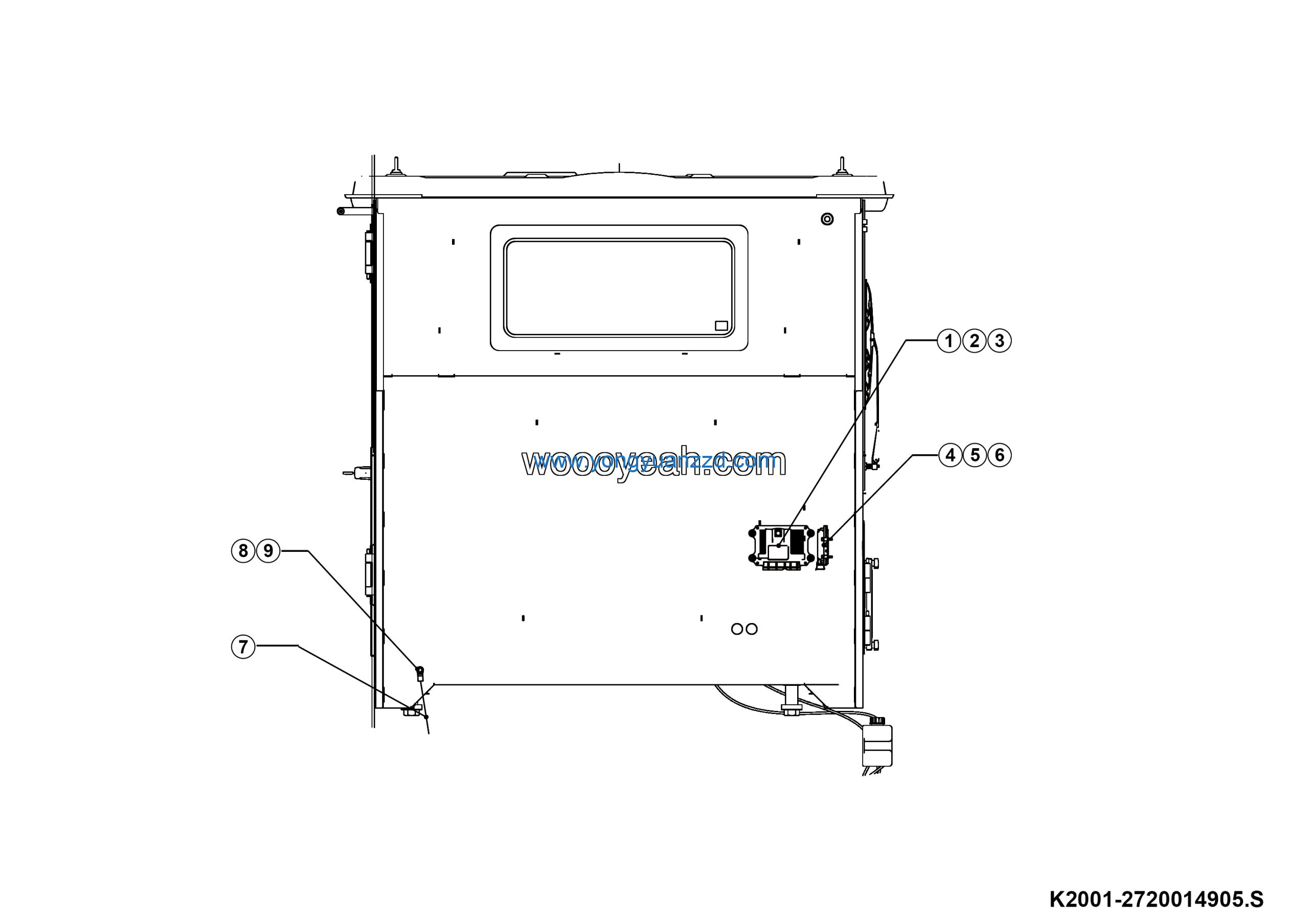

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Vehicle Controller VECU | 4130704605 | 1 |
| 2 | Screw GB70.1-M6*50EpZn-8.8 | 4014010019 | 4 |
| 3 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 4 | TCU Controller 1745604-2-106 | 4130705791 | 1 |
| 5 | Screw GB70.1-M6*30EpZn-10.9 | 4014000153 | 4 |
| 6 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 7 | Ground wire BZW-50*350 | 2762000155-076 | 1 |
| 8 | Bolt GB16674.1-M10*16EpZn-8.8 | 4011000488 | 2 |
| 9 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 1 |
