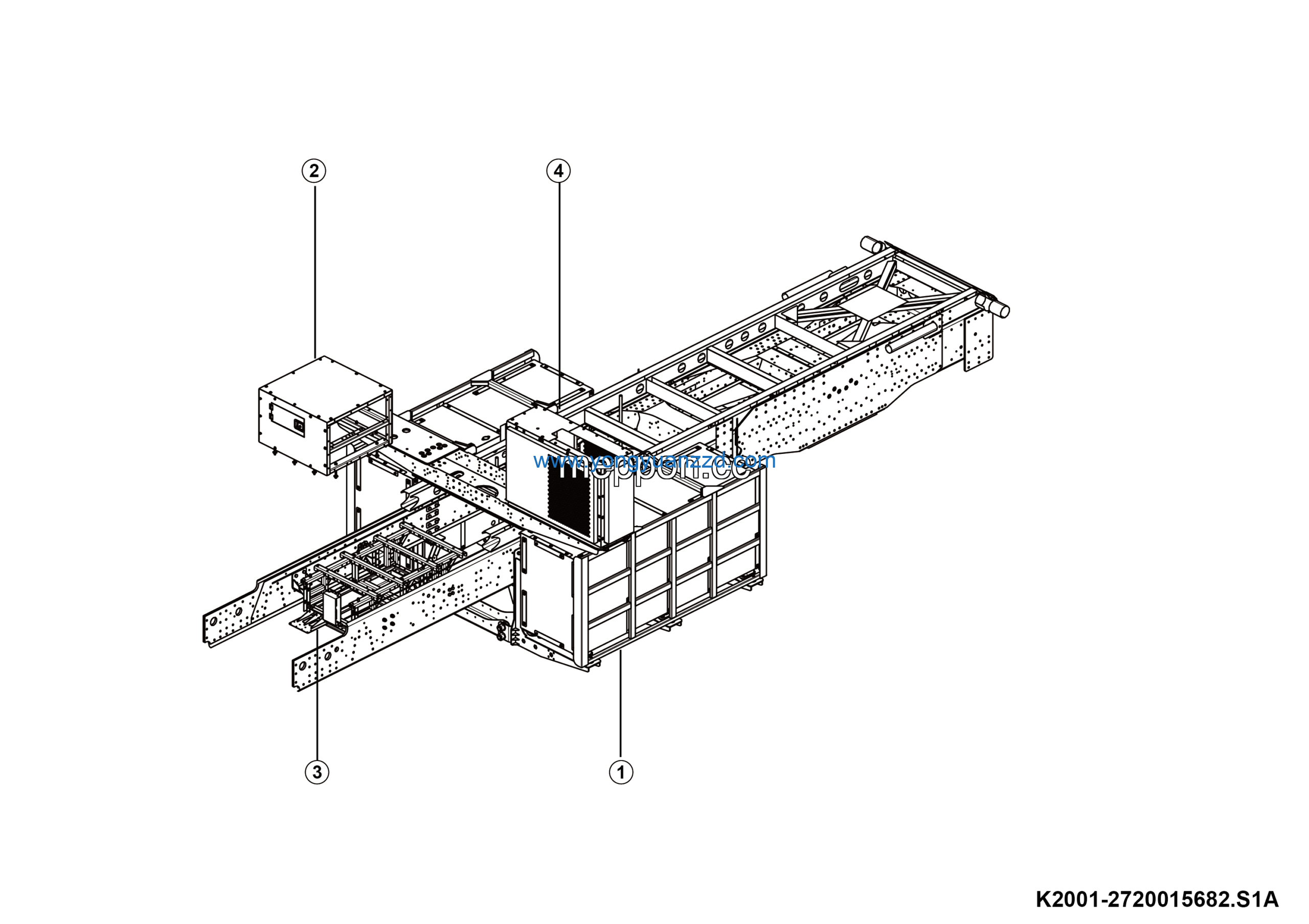

LGMG Off-Highway Dump Truck 2023 – Electrical frame assy – K2001-2720015682.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A409
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Side battery bracket assembly | 27200156831 | 1 |
| 2 | Bdu control cabinet bracket assembly | 27200155811 | 1 |
| 3 | Five-in-one integrated controller bracket assy | 27200155991 | 1 |
| 4 | Liquid cooling unit bracket assy | 27200156271 | 1 |
