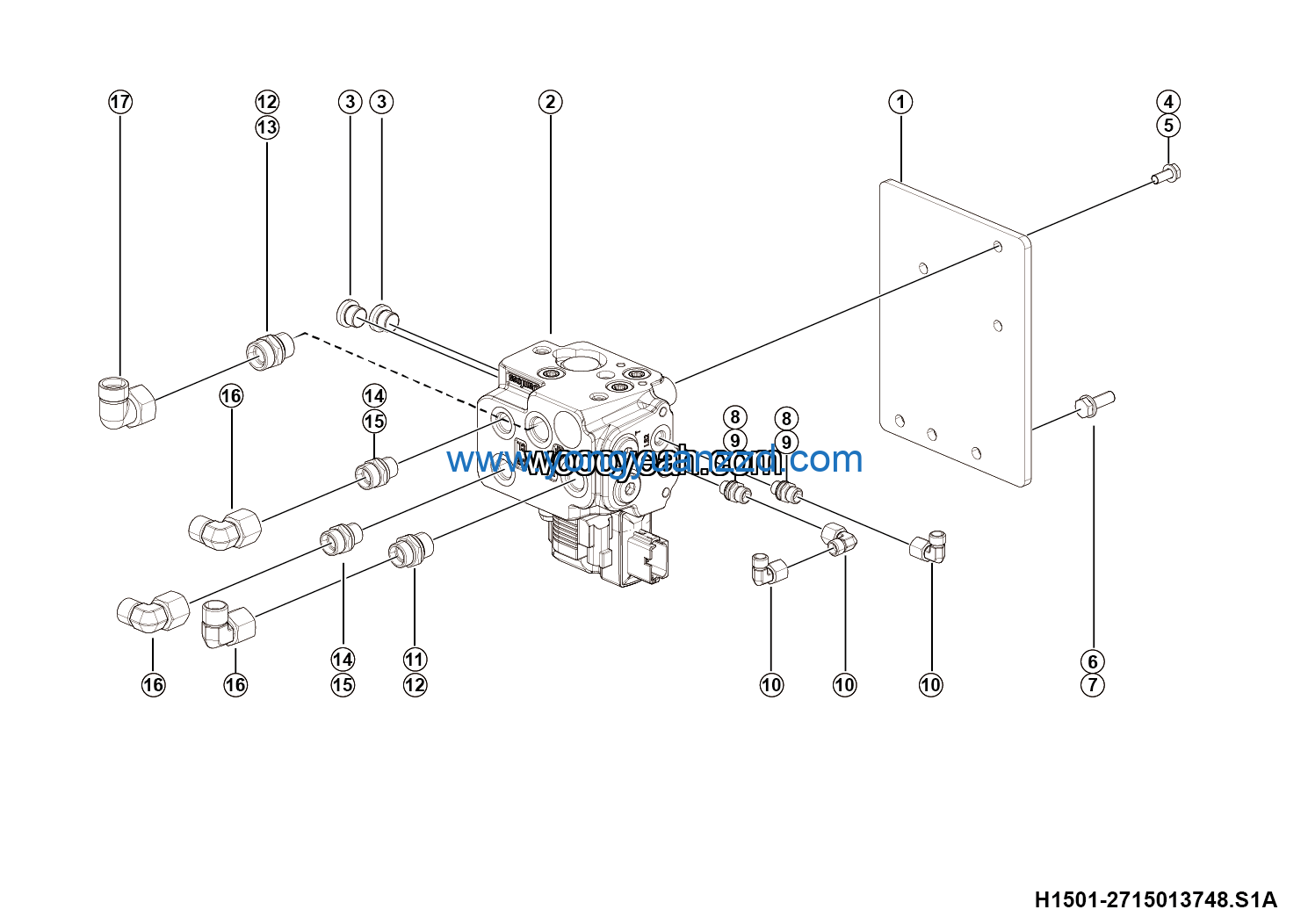

LGMG Off-Highway Dump Truck 2023 – Electrohydraulic steering valve assy – H1501-2715013748.S1A
Category: 2023 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A103
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Combination joint LGB143-01406 | 4041001047 | 3 |
| 2 | Combination joint LGB143-01406 | 4041001047 | 3 |
| 3 | Straight joint LGB120-02222 | 4041000143 | 1 |
| 4 | Straight joint LGB120-02222 | 4041000143 | 1 |
| 5 | O-ring LGB168-11924 | 4041000771 | 2 |
| 6 | O-ring LGB168-11924 | 4041000771 | 2 |
| 7 | Straight joint LGB120-02622 | 4041000187 | 1 |
| 8 | Straight joint LGB120-02622 | 4041000187 | 1 |
| 9 | JOINT LGB120-02218 | 4041000095 | 2 |
| 10 | JOINT LGB120-02218 | 4041000095 | 2 |
| 11 | O-ring LGB168-11524 | 4041000768 | 2 |
| 12 | O-ring LGB168-11524 | 4041000768 | 2 |
| 13 | Combination joint LGB143-02213 | 4041001156 | 3 |
| 14 | Combination joint LGB143-02213 | 4041001156 | 3 |
| 15 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 16 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 17 | Electrohydraulic steering valve bracket 240*180*8 | 27150135861 | 1 |
| 18 | Electrohydraulic steering valve bracket 240*180*8 | 27150135861 | 1 |
| 19 | Elec control steering valve EHI 70 | 4120706417 | 1 |
| 20 | Elec control steering valve EHI 70 | 4120706417 | 1 |
| 21 | Plug VSTI18*1.5OR | 4120707032 | 2 |
| 22 | Plug VSTI18*1.5OR | 4120707032 | 2 |
| 23 | Bolt GB5783-M8*20EpZn-10.9 | 4011000754 | 3 |
| 24 | Bolt GB5783-M8*20EpZn-10.9 | 4011000754 | 3 |
| 25 | Washer GB97.1-8EpZn-300HV | 4015000072 | 3 |
| 26 | Washer GB97.1-8EpZn-300HV | 4015000072 | 3 |
| 27 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 28 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 29 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 30 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 31 | Straight joint LGB120-01412 | 4041000131 | 2 |
| 32 | Straight joint LGB120-01412 | 4041000131 | 2 |
| 33 | O-ring LGB168-10924 | 4041000784 | 2 |
| 34 | O-ring LGB168-10924 | 4041000784 | 2 |
