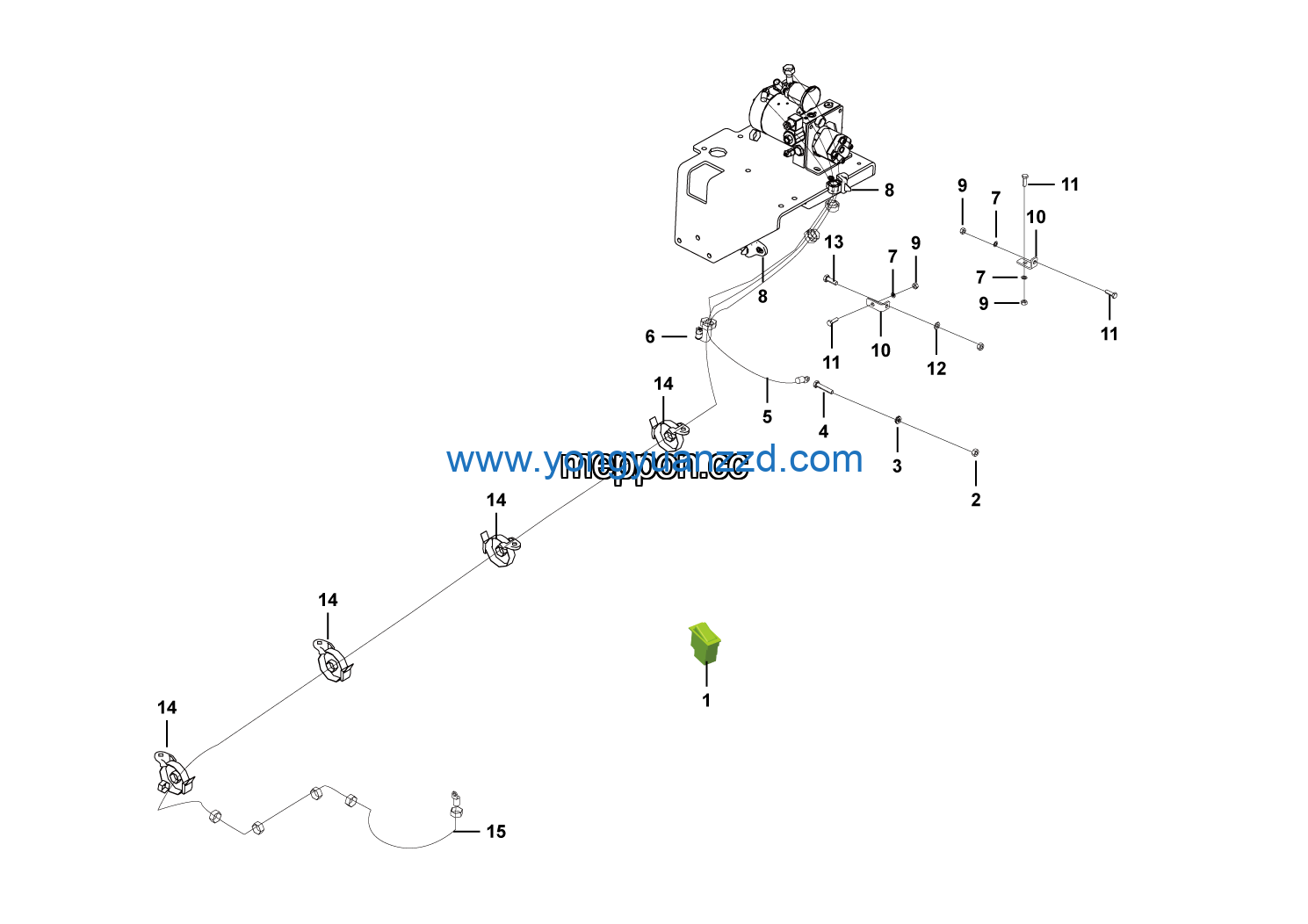

LGMG Off-Highway Dump Truck 2023 – Emergence steering electrical system – K2001-2720015311
Category: 2023 > Off-Highway Dump Truck > CMT96 > C0960WF83
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Holder | 27200142321 | 2 |
| 2 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 3 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 5 | Nylon large tie strap HS-J118 | 4130705870 | 4 |
| 6 | Emergency steering wire p35-8*8*4500-1.8 | 27200153121 | 1 |
| 7 | Emergency steering rocker switch JK939C | 4130701384 | 1 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 9 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 2 |
| 10 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 11 | Emergency steering grounding wire p35-8*10*1500-1.8 | 27200153131 | 1 |
| 12 | LINE | 2720014084-003 | 1 |
| 13 | Washer GB97.1-8EpZn-300HV | 4015000072 | 3 |
| 14 | Cable tie HS-J117 | 4130704969 | 2 |
| 15 | Nut GB6170-M8EpZn-8 | 4013000033 | 3 |
