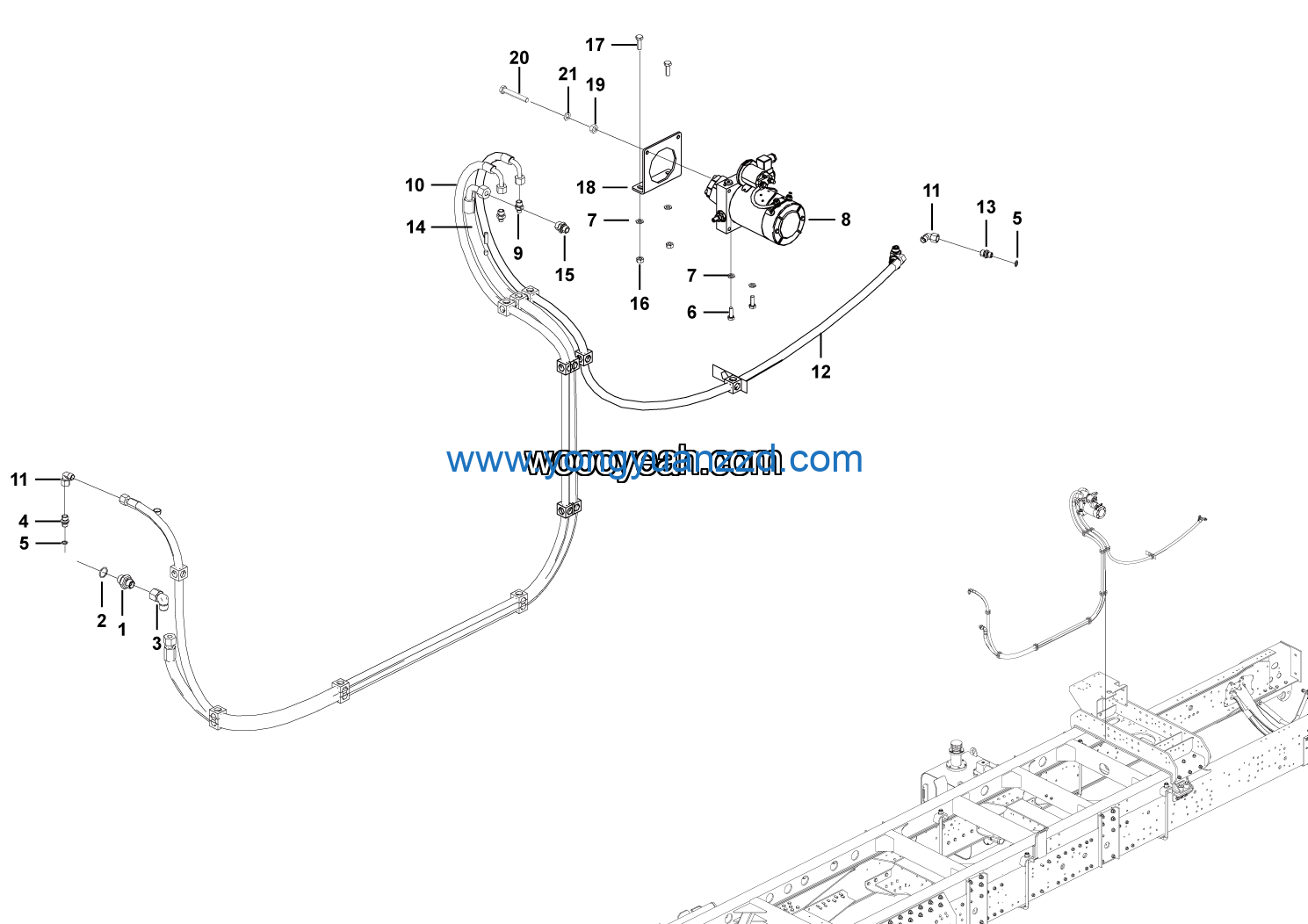

LGMG Off-Highway Dump Truck 2023 – Emergency steering assy – H6000-2760000148
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M060
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose F221FRCFCA101005-3350 | 4120711503 | 1 |
| 2 | Combination joint LGB143-01608 | 4041001023 | 2 |
| 3 | Hose F481CACF101005-2200 | 4120710767 | 1 |
| 4 | Column end 1CG-16-04 | 4120702912 | 1 |
| 5 | HOSE LGB165-006280 | 4041010876 | 1 |
| 6 | Straight joint 1CB-22-06WD | 4120005156 | 1 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 9 | Plate | 27150112741 | 1 |
| 10 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 11 | Straight joint LGB155-02222 | 4041000109 | 1 |
| 12 | BOLT GB5783-M8*55EpZn-8.8 | 4011010609 | 2 |
| 13 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 14 | O-ring GB3452.1-23.6*2.65G | 4030000097 | 1 |
| 15 | Combination joint LGB143-02213 | 4041001156 | 1 |
| 16 | Straight joint LGB120-01614 | 4041000604 | 1 |
| 17 | O-ring LGB168-11124 | 4041000767 | 2 |
| 18 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 19 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 20 | Power unit | 4120702906 | 1 |
| 21 | Straight joint 1CB-16-04WD | 4120001369 | 2 |
