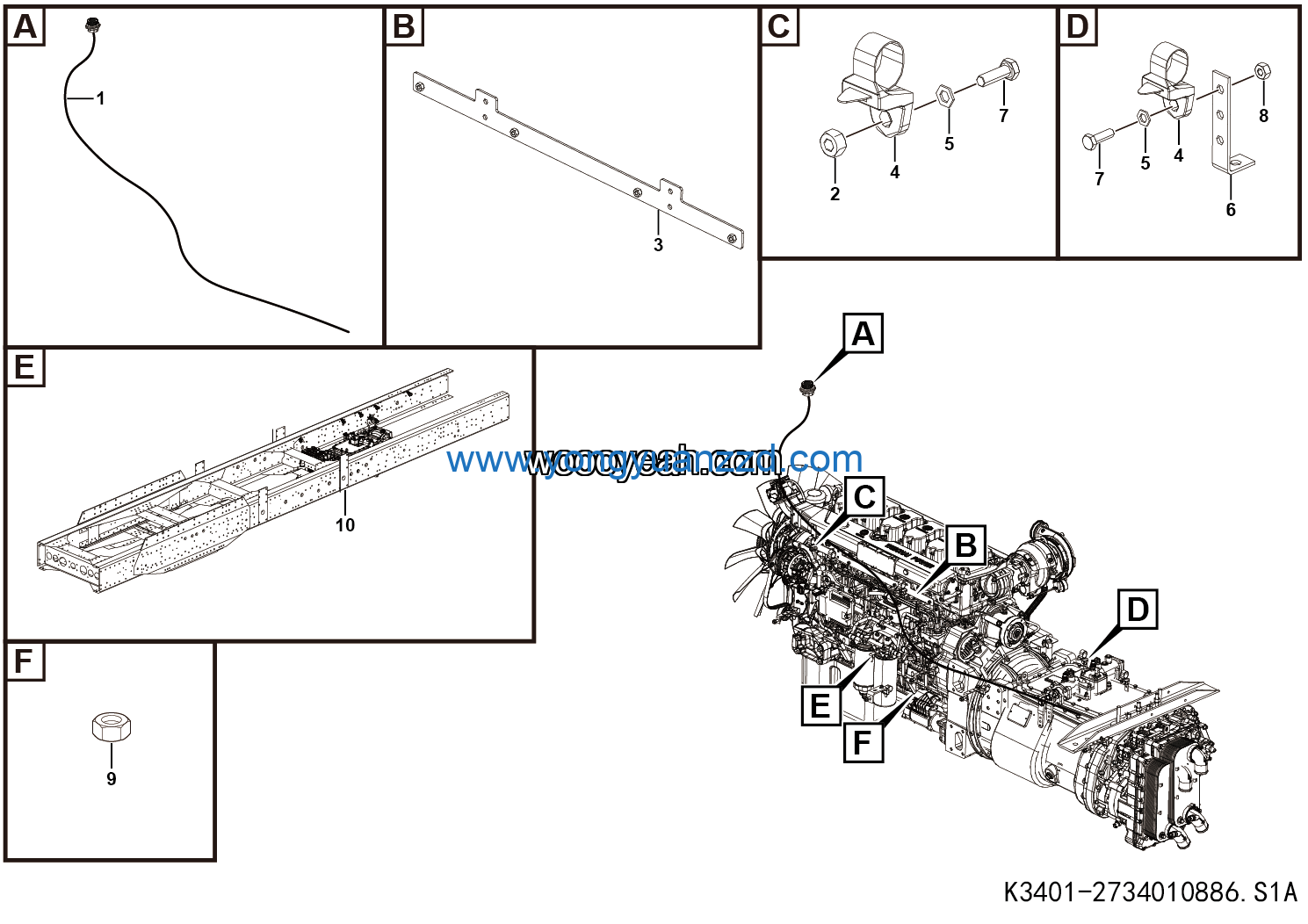

LGMG Off-Highway Dump Truck 2023 – Engine electrical system – K3401-2734010886.S1A
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M007
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Engine electrical system | 27340108871 | 1 |
| 2 | Engine wire | 27340108852 | 1 |
| 3 | Nut GB6170-M10-8 | 4013000247 | 3 |
| 4 | Holder | 27340103471 | 1 |
| 5 | Cable tie 14400342 | 4130703098 | 5 |
| 6 | Washer GB97.1-8EpZn-300HV | 4015000072 | 6 |
| 7 | Bracket 1 | 27100103561 | 2 |
| 8 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 5 |
| 9 | Nut GB6170-M8EpZn-8 | 4013000033 | 3 |
| 10 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
