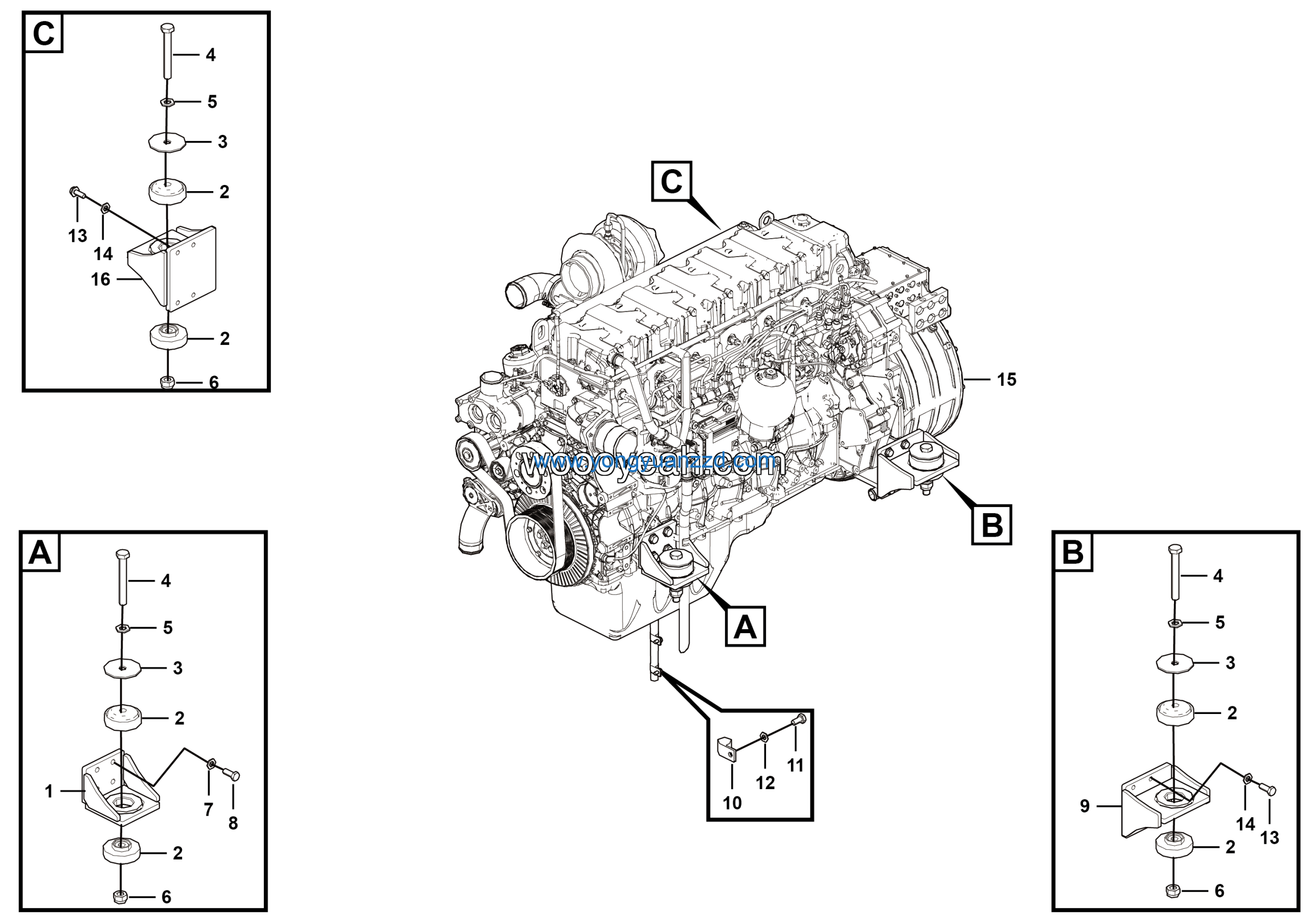

LGMG Off-Highway Dump Truck 2023 – Engine installation assy – A0101-2701013025
Category: 2023 > Off-Highway Dump Truck > RTH126 > R1260Y3A0A300
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamp R-D26-M10 | 4190707971 | 2 |
| 2 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 4 | Bolt GB5783-M14*40flZnyc-12.9-480 | 4011010750 | 8 |
| 5 | Washer GB1230-14EpZn-45 | 4015000358 | 8 |
| 6 | Engine YCRE300T-K16Z1（3SC009-1680D0） | 4110705724 | 1 |
| 7 | Bracket rr rh | 27010128031 | 1 |
| 8 | Bracket fr | 27010128061 | 2 |
| 9 | Shock absorber MDS110-75 | 4110704897 | 8 |
| 10 | Front rubber baes plate | 27010115971 | 4 |
| 11 | BOLT GB5782-M22*180flZnyc-12.9-480 | 4011011124 | 4 |
| 12 | Washer GB1230-22EpZn-45 | 4015000294 | 4 |
| 13 | Nut GB6185.1-M22flZnyc-12-480 | 4013010282 | 4 |
| 14 | Washer GB1230-16EpZn-45 | 4015000001 | 8 |
| 15 | Bolt GB5783-M16*40flZnyc-12.9-480 | 4011010676 | 8 |
| 16 | Bracket rr lh | 27010127991 | 1 |
