LGMG Off-Highway Dump Truck 2023 – Expansion water tank assy – A0301-2703014362.S1A
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M035

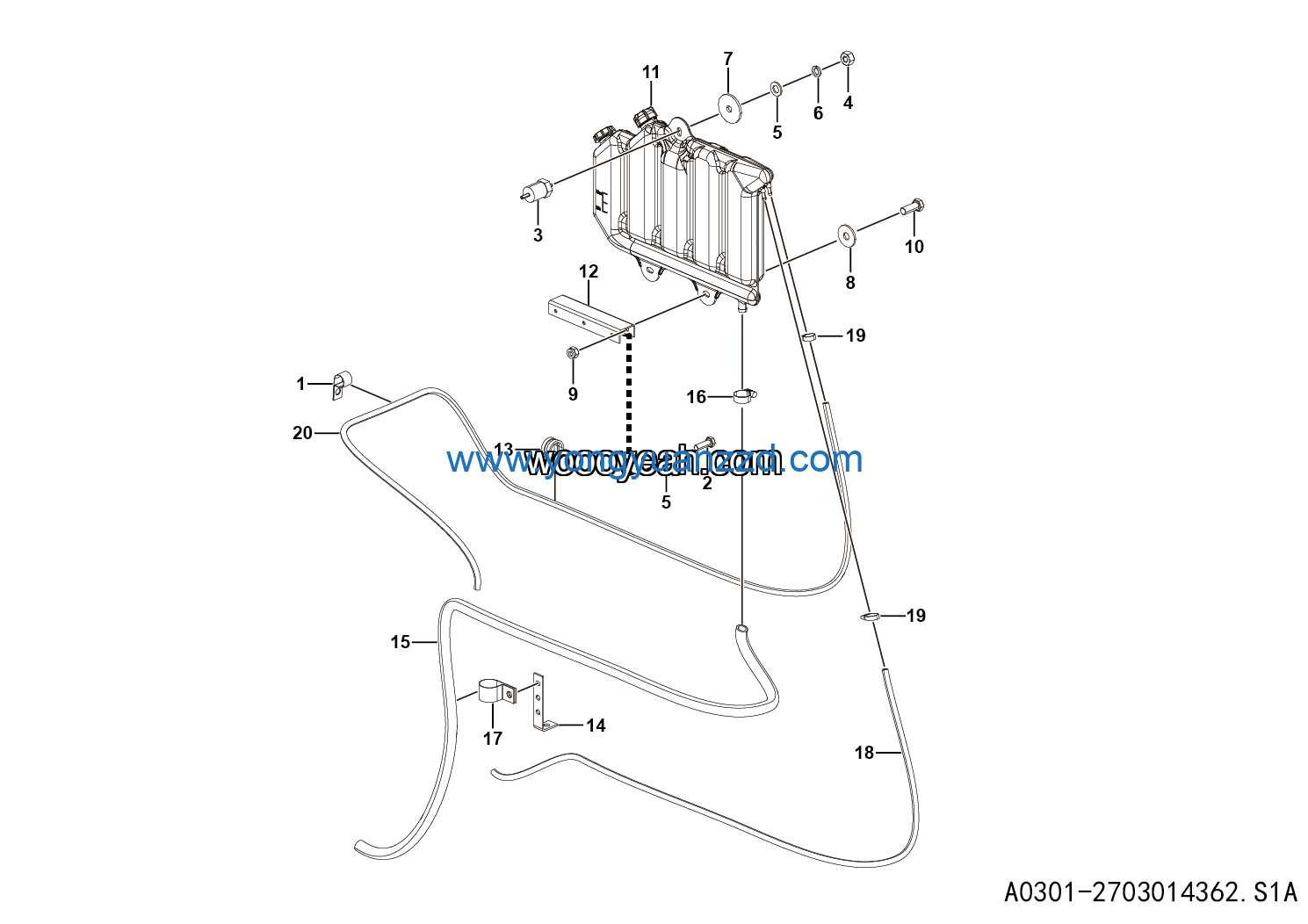

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 2 | Expansion water tank | 4110000439 | 1 |
| 3 | E*PANSION TANK BRACKET | 27030102221 | 1 |
| 4 | Pipe clamp R-D40-M10 | 4190707973 | 2 |
| 5 | Bracket 1 | 27100103561 | 1 |
| 6 | Pipe | 27030129561 | 1 |
| 7 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 8 | Clamp R-D32-M10 | 4190707972 | 1 |
| 9 | Breath tube i | 27030139981 | 1 |
| 10 | No longer used | 4190000343 | 4 |
| 11 | Pipe clamp R-D24-M10 | 4190707970 | 2 |
| 12 | Breath tube ii | 27030139991 | 1 |
| 13 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 3 |
| 14 | Rubber shock block | 4110000211 | 1 |
| 15 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 16 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 17 | Washer GB93-8-65Mn | 4015000036 | 1 |
| 18 | washer | 27030102011 | 1 |
| 19 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 20 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
