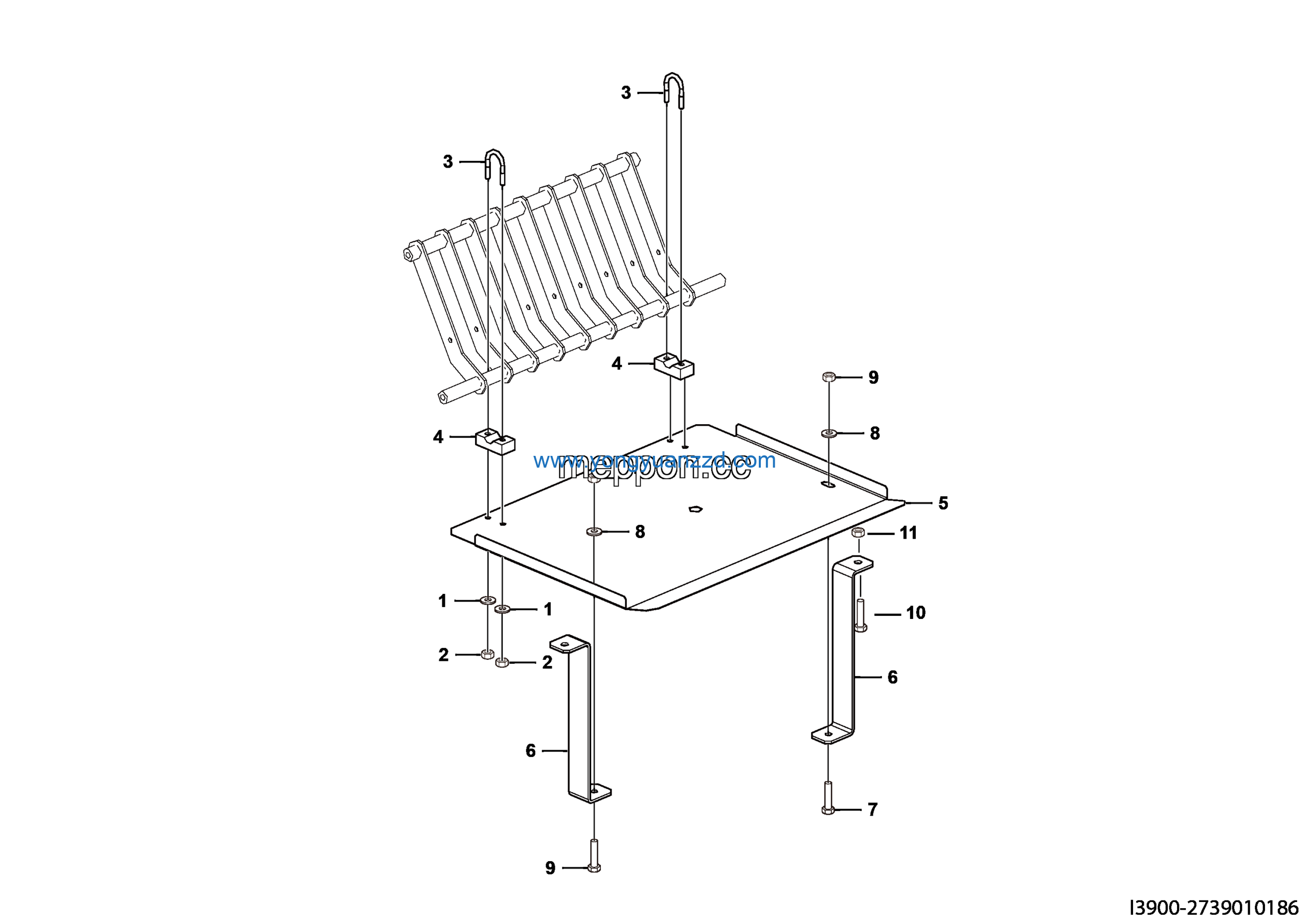

LGMG Off-Highway Dump Truck 2023 – Fan guide assy – I3900-2739010186
Category: 2023 > Off-Highway Dump Truck > MT50 > M0500W2E0M004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M14*55flZnyc-12.9-480 | 4011010548 | 2 |
| 2 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 2 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 5 | U SHAP BOLT | 27390100171 | 2 |
| 6 | Rubber mat | 27390100201 | 2 |
| 7 | Rimq plate | 27390101881 | 1 |
| 8 | PLATE | 27390101871 | 2 |
| 9 | Nut GB6170-M14EpZn-10 | 4013010010 | 2 |
| 10 | Washer GB96.1-14EpZn-300HV | 4015000188 | 2 |
| 11 | Bolt GB5783-M14*40EpZn-8.8 | 4011000814 | 2 |
