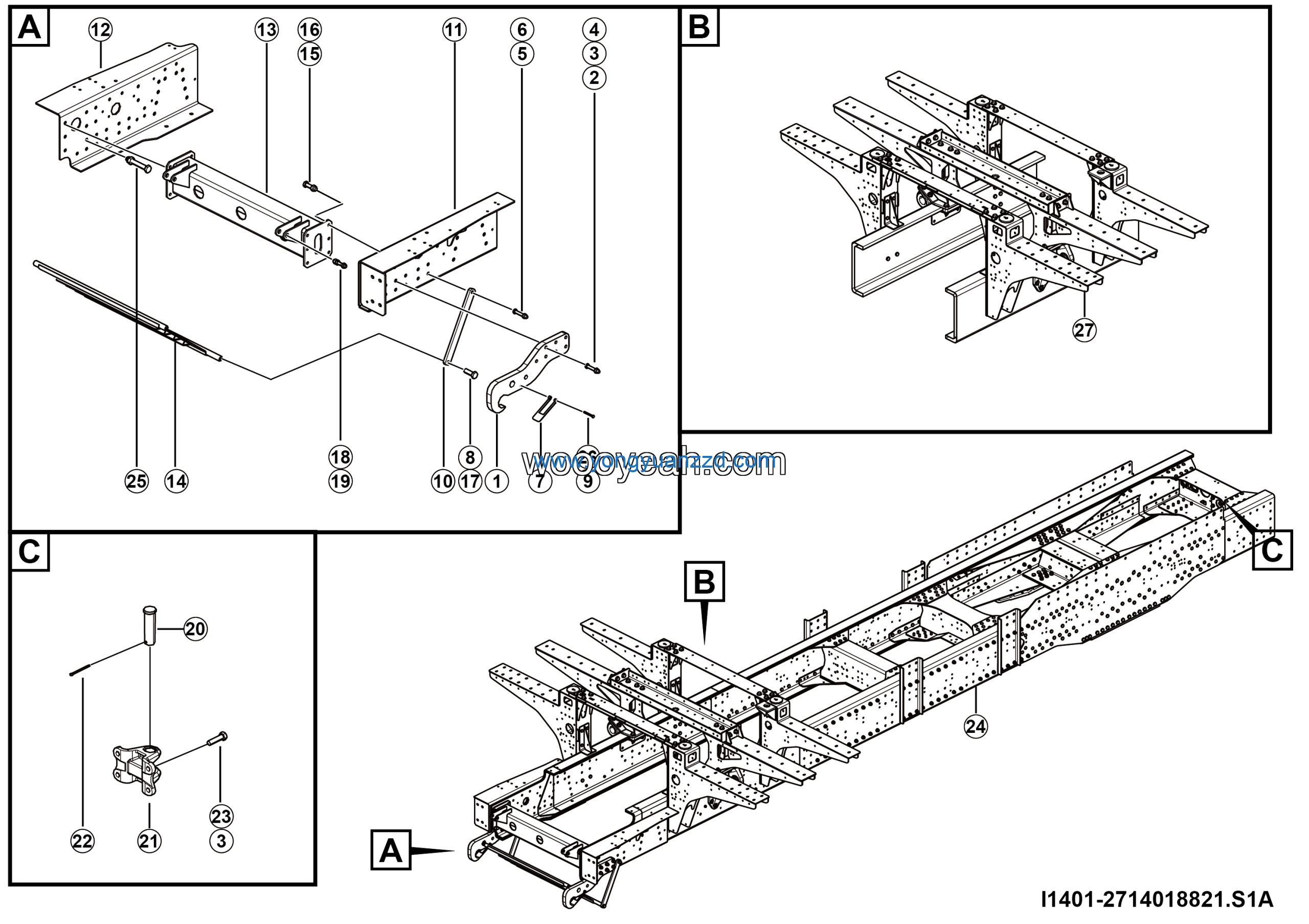

LGMG Off-Highway Dump Truck 2023 – Frame assy – I1401-2714018821.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A402
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Connecting rod 460*45*16 | 27140188851 | 2 |
| 2 | Left front connecting plate assy | 27140188461 | 1 |
| 3 | Right front connecting plate assy | 27140188481 | 1 |
| 4 | Crossbeam assy 1 | 27140188311 | 1 |
| 5 | Front protective grill weldment | 27140188841 | 1 |
| 6 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 10 |
| 7 | Nut GB6185.2-M16*1.5EpZn-8 | 4013010168 | 2 |
| 8 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 9 | Bolt GB5785-M16*1.5*75flZnyc-12.9-480 | 4011010587 | 11 |
| 10 | Nut GB6171-M16*1.5flZnyc-12-480 | 4013010250 | 22 |
| 11 | Traction hook 625*284*36 | 27140188761 | 2 |
| 12 | Pin | 27140105842 | 1 |
| 13 | Frame | 27140187581 | 1 |
| 14 | Pin GB91-6.3*71EpZn-Q235A | 4016010125 | 1 |
| 15 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 16 | Frame | 27140188221 | 1 |
| 17 | BOLT GB5785-M16*1.5*100flZnyc-12.9-480 | 4011010594 | 2 |
| 18 | Bolt GB5782-M8*70EpZn-8.8 | 4011000591 | 2 |
| 19 | Platform support assy | 27140188321 | 1 |
| 20 | Bolt GB5785-M16*1.5*90flZnyc-12.9-480 | 4011010558 | 12 |
| 21 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 16 |
| 22 | Washer GB97.1-16-300HV | 4015000314 | 13 |
| 23 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 2 |
| 24 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 2 |
| 25 | Plate 191*56*4 | 27140188791 | 2 |
| 26 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 4 |
| 27 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 2 |
