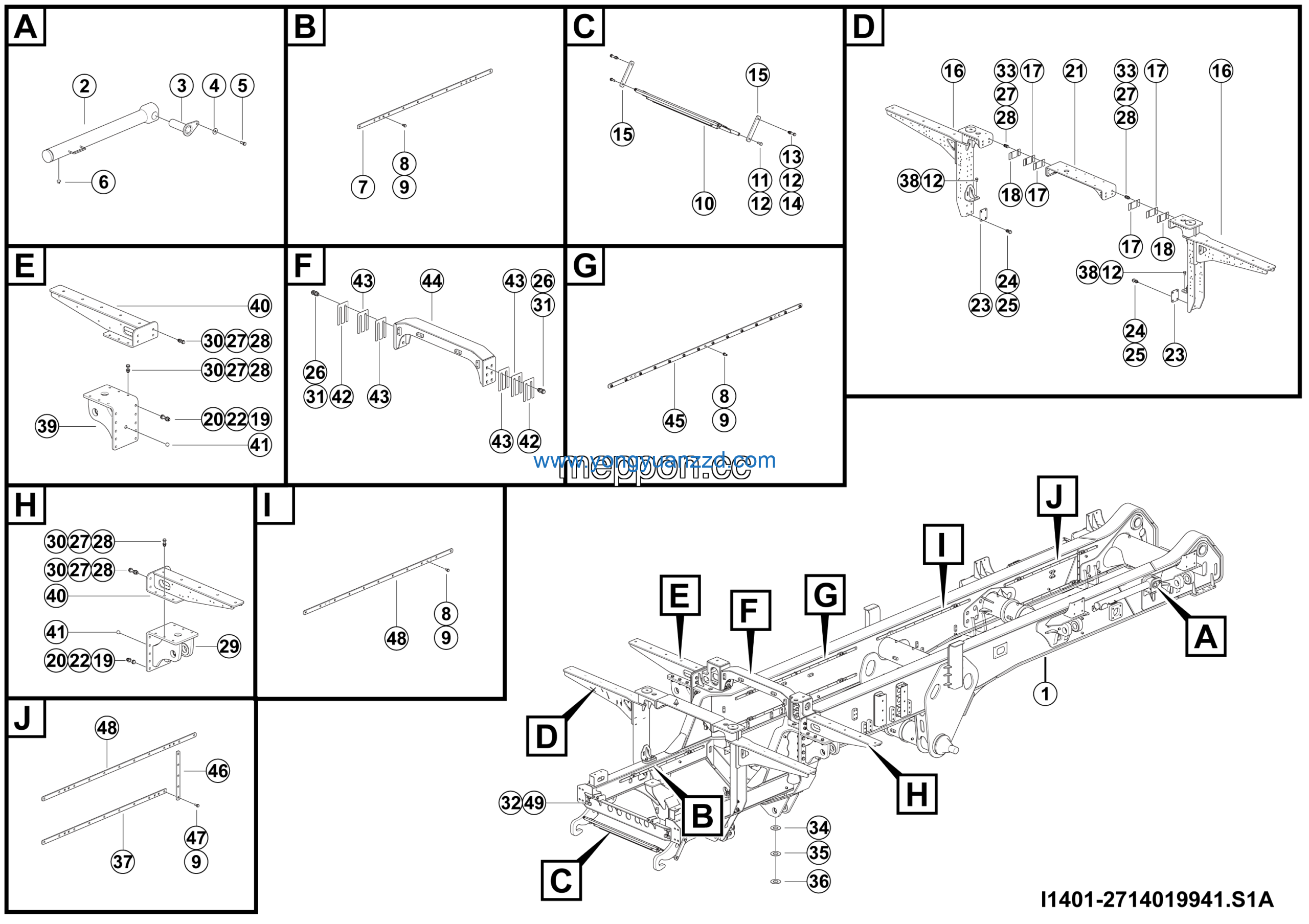

LGMG Off-Highway Dump Truck 2023 – Frame assy – I1401-2714019941.S1A
Category: 2023 > Off-Highway Dump Truck > RT100 > R1000W3A0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fr guard wldmt | 27140198721 | 1 |
| 2 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 4 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 12 |
| 4 | Bolt GB5785-M16*1.5*90EpZn-10.9 | 4011000879 | 2 |
| 5 | Nut GB6185.2-M16*1.5EpZn-10 | 4013010171 | 2 |
| 6 | Linkage 287*50*16 | 27140187831 | 2 |
| 7 | Platform fr bracket wldmt | 27140200841 | 2 |
| 8 | Plate 180*83*2 | 27140186751 | 4 |
| 9 | Plate 180*83*1 | 27140186761 | 2 |
| 10 | Nut GB6185.2-M20*1.5flZnyc-12-480 | 4013010273 | 20 |
| 11 | Frame body assy | 27140199422 | 1 |
| 12 | Bolt GB5785-M20*1.5*90flZnyc-12.9-480 | 4011010622 | 20 |
| 13 | Platform fr bracket mid crossbeam wldmt | 27140200511 | 1 |
| 14 | Washer GB1230-20flzncy-45-480 | 4015010546 | 40 |
| 15 | Plate | 27140160411 | 2 |
| 16 | Bolt QC340-M16*1.5*60EpZn-10.9 | 4011011735 | 8 |
| 17 | Nut GB6177.2-RLM16*1.5EpZn-10 | 4013010553 | 8 |
| 18 | Bolt QC340-M20*1.5*65flZnyc-12.9-480 | 4011011717 | 12 |
| 19 | Washer GB1230-16flZnyc-45-480 | 4015010563 | 56 |
| 20 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 28 |
| 21 | Plate | 27140191961 | 1 |
| 22 | Cargo safety support | 27140184091 | 2 |
| 23 | Bolt GB5785-M16*1.5*65flZnyc-12.9-480 | 4011010698 | 20 |
| 24 | Nut GB6177.2-RLM20*1.5flZnyc-12-480 | 4013010565 | 12 |
| 25 | Bolt QC340-M16*1.5*50flZnyc-12.9-480 | 4011011724 | 8 |
| 26 | Bolt GB5786-M16*1.5*55flZnyc-12.9-480 | 4011010640 | 8 |
| 27 | Wear-resistant shim 120*75*4.0 | 27140200721 | 1 |
| 28 | Wear-resistant shim 120*75*4.1 | 27140200731 | 1 |
| 29 | Wear-resistant shim 120*75*3.9 | 27140200741 | 1 |
| 30 | Strip plate wldmt | 27140200451 | 1 |
| 31 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 4 |
| 32 | Plate | 27140191971 | 1 |
| 33 | Pin welded | 27140143351 | 2 |
| 34 | Welded | 27140186632 | 2 |
| 35 | Cushion block | 27120113681 | 2 |
| 36 | Adjusting gasket 220*130*1 | 27140195531 | 2 |
| 37 | Adjusting gasket 220*130*2 | 27140195541 | 4 |
| 38 | U-frame upper beam wldmt | 27140200541 | 1 |
| 39 | Plate strip weldment 1950 | 27140191771 | 3 |
| 40 | Plate strip weldment 340 | 27140191811 | 1 |
| 41 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 42 | Plate strip weldment 1500 | 27140191791 | 3 |
| 43 | Nut GB6177.2-RLM16*1.5flZnyc-12 | 4013010558 | 8 |
| 44 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 45 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 46 | Fastening bolt damping block | 27170140901 | 4 |
| 47 | Plate strip weldment 1350 | 27140191751 | 2 |
| 48 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 34 |
| 49 | Washer GB97.1-10EpZn-300HV | 4015000162 | 35 |
