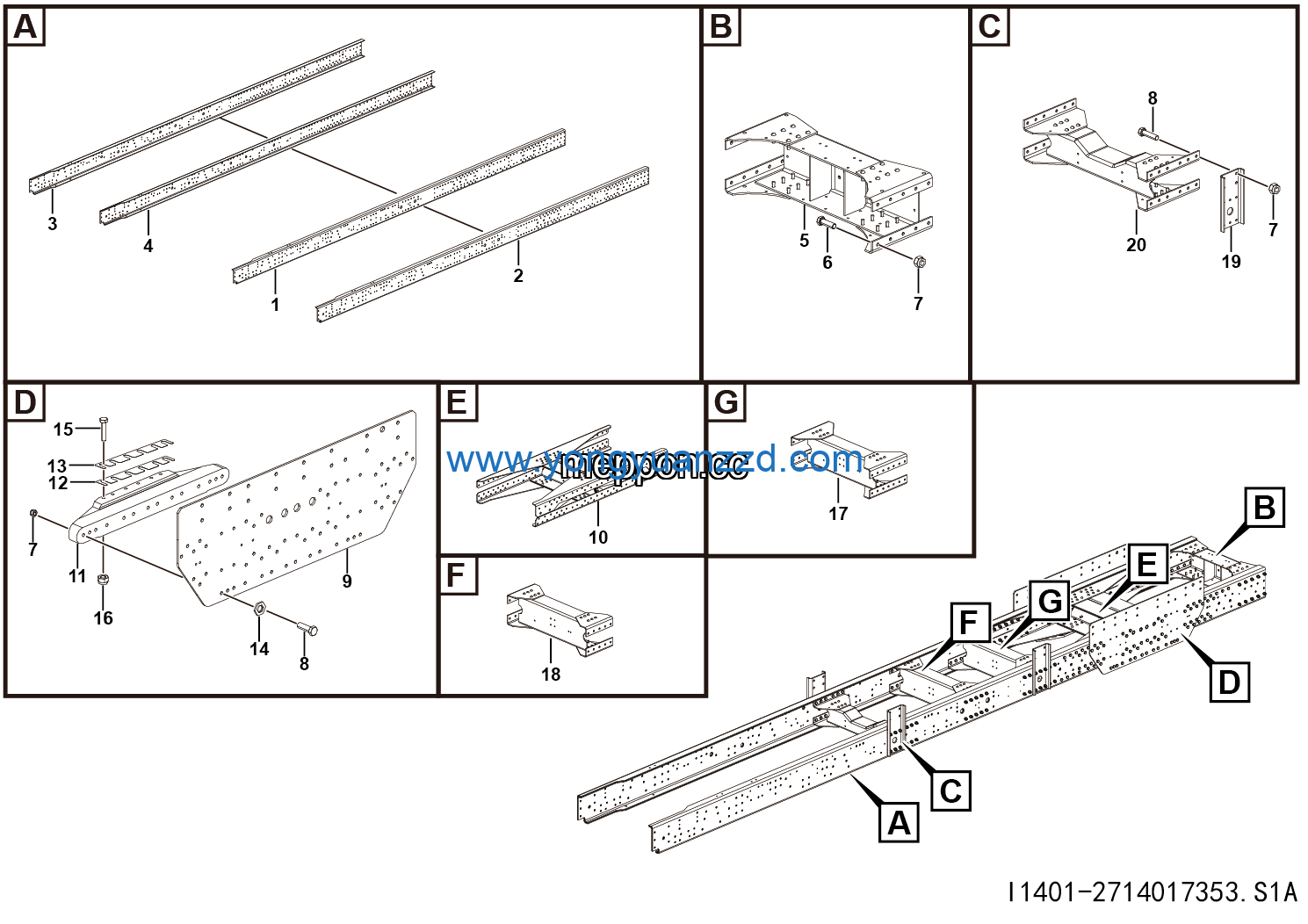

LGMG Off-Highway Dump Truck 2023 – Frame – I1401-2714017353.S1A
Category: 2023 > Off-Highway Dump Truck > CMT60A > C060AW3E0A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Beam | 27140131591 | 1 |
| 2 | Middle support | 27140123771 | 2 |
| 3 | Adjustment gasket | 27140123981 | 2 |
| 4 | Adjustment gasket | 27140123971 | 2 |
| 5 | Washer GB1230-16EpZn-45 | 4015000001 | 28 |
| 6 | Bolt GB5782-M14*60-12.9 | 4011010222 | 12 |
| 7 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 12 |
| 8 | Hood cover assy | 27140131311 | 1 |
| 9 | Plate | 27140131271 | 1 |
| 10 | Plate | 27140131801 | 4 |
| 11 | Frame | 27140173551 | 1 |
| 12 | Wind deflector | 27140131321 | 1 |
| 13 | Frame | 27140173541 | 1 |
| 14 | Frame | 27140173561 | 1 |
| 15 | Frame | 27140173571 | 1 |
| 16 | Plate | 27140160571 | 1 |
| 17 | BOLT GB5786-M16*1.5*50-12.9 | 4011010738 | 176 |
| 18 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 276 |
| 19 | Bolt GB5786-M16*1.5*60-12.9 | 4011010219 | 100 |
| 20 | Frame | 27140173841 | 2 |
