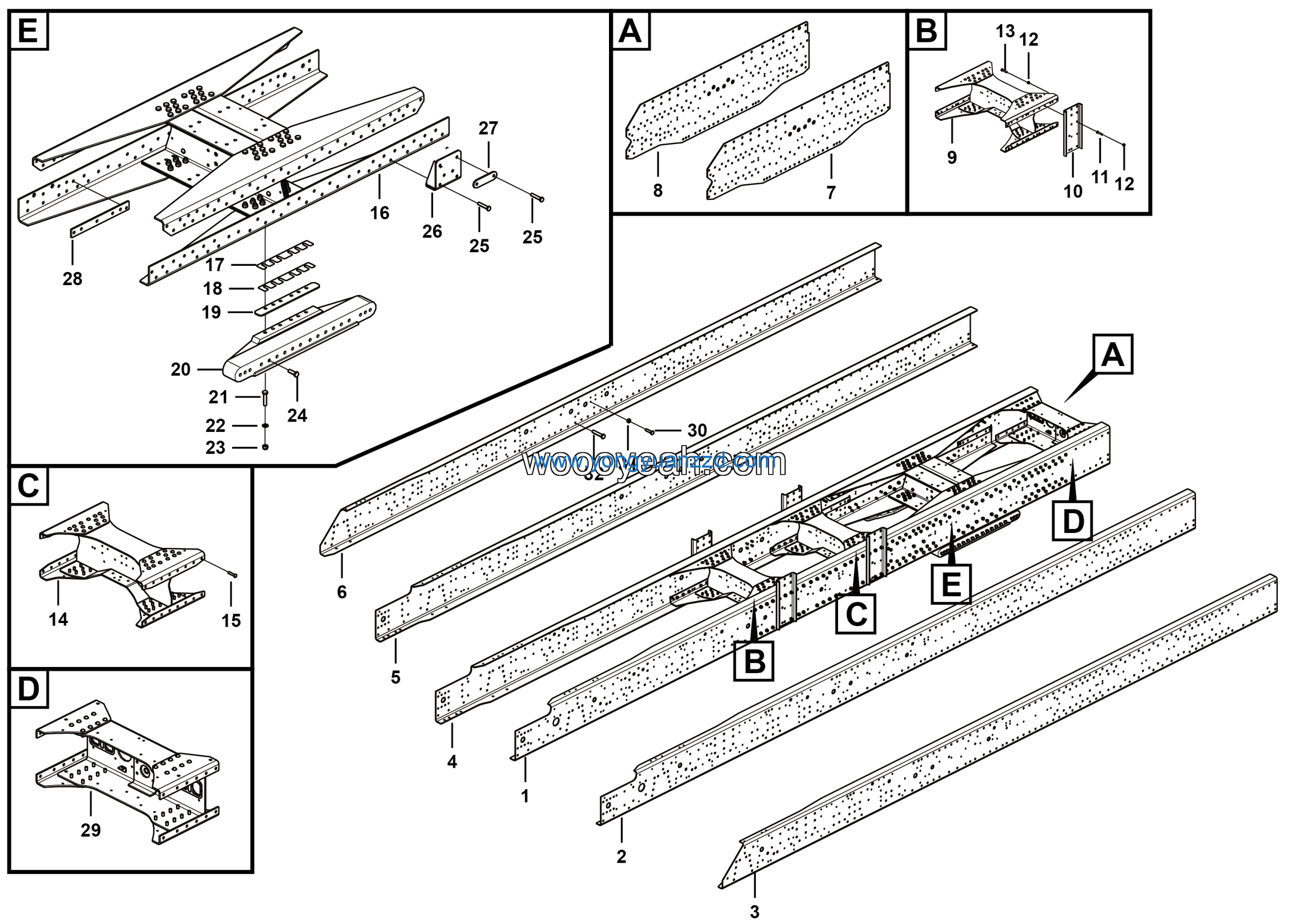

LGMG Off-Highway Dump Truck 2023 – FRAME – I1401-2714018713.S1A
Category: 2023 > Off-Highway Dump Truck > MT106H > M106HW3A0M313
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27140184282 | 4 |
| 2 | Bolt GB5786-M16*1.5*70flZnyc-12.9-480 | 4011011419 | 38 |
| 3 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 119 |
| 4 | Bolt GB5786-M16*1.5*60-12.9 | 4011010219 | 49 |
| 5 | Beam assembly | 27140187231 | 1 |
| 6 | Rivet GB867-16*70 | 4019010340 | 138 |
| 7 | Assembly | 27140184433 | 1 |
| 8 | Trimmed gasket | 27140124522 | 2 |
| 9 | Trimmed gasket | 27140124532 | 2 |
| 10 | Frame | 27140178491 | 2 |
| 11 | Left beam | 27140187142 | 1 |
| 12 | Middle seat | 27140124731 | 2 |
| 13 | Bolt GB5785-M18*1.5*80-12.9 | 4011010700 | 12 |
| 14 | Washer GB1230-18EpZn-45 | 4015010219 | 48 |
| 15 | NUT GB6185-M18*1.5EpZn-12 | 4013010252 | 48 |
| 16 | Bolt GB5786-M18*1.5*55-12.9 | 4011010739 | 36 |
| 17 | Bolt GB5785-M16*1.5*80-12.9 | 4011010792 | 12 |
| 18 | Frame | 27140184571 | 2 |
| 19 | Plate | 27140138171 | 2 |
| 20 | Frame | 27140184722 | 2 |
| 21 | Frame | 27140184511 | 1 |
| 22 | Left beam | 27140187152 | 1 |
| 23 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 7 |
| 24 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 25 | BOLT GB5786-M16*1.5*50-12.9 | 4011010738 | 20 |
| 26 | Left beam | 27140187162 | 1 |
| 27 | Right beam | 27140187172 | 1 |
| 28 | Right beam | 27140187182 | 1 |
| 29 | Right beam | 27140187192 | 1 |
| 30 | Plate | 27140184602 | 1 |
| 31 | Frame | 27140184612 | 1 |
| 32 | Beam assembly | 27140187201 | 1 |
