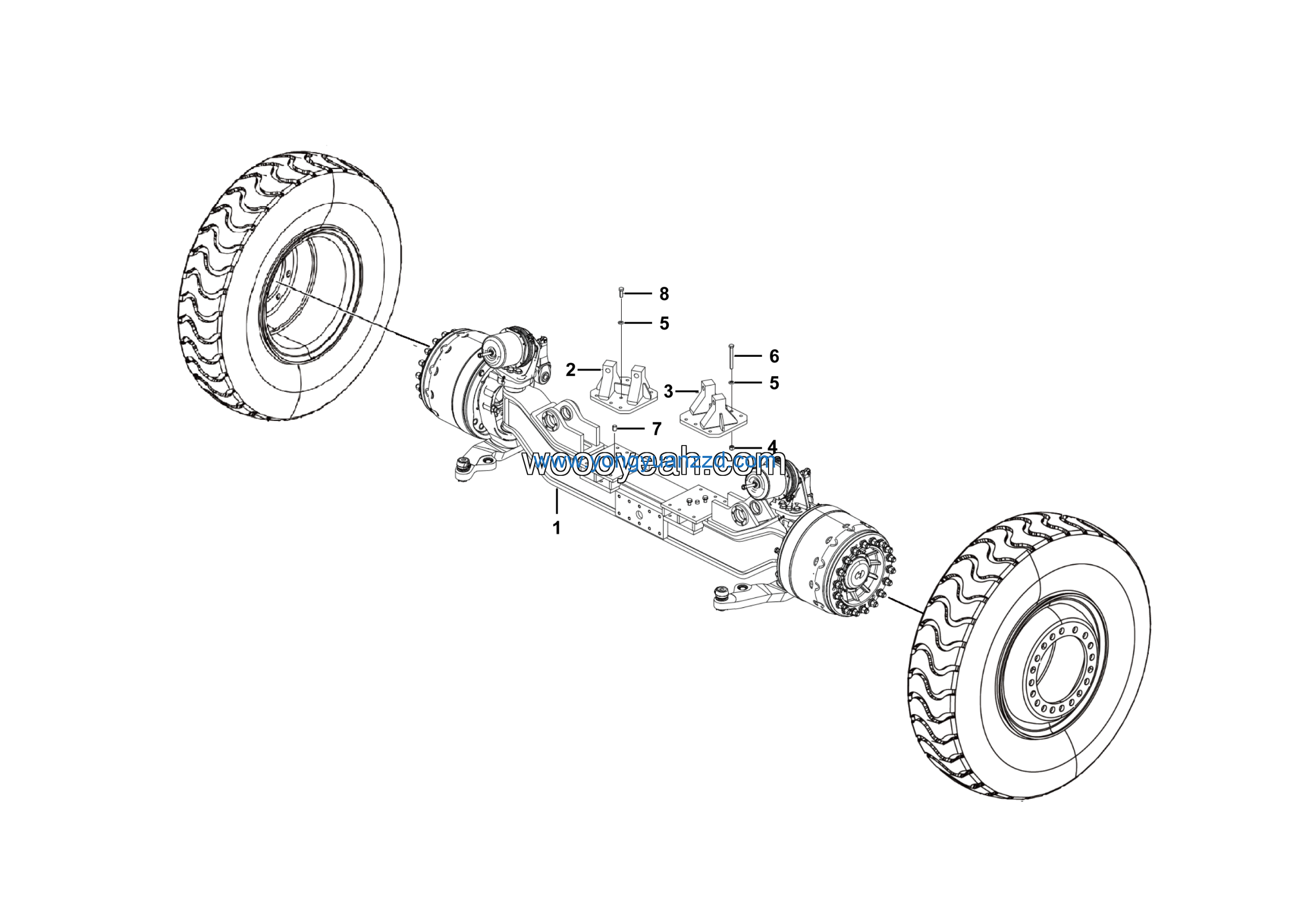

LGMG Off-Highway Dump Truck 2023 – Front axle installation assy HD25T – D0600-2706010666.S1A
Category: 2023 > Off-Highway Dump Truck > MT106H > M106HW3A0M318
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | FR axle assy HD25T（Curved axle） | 4110705532 | 1 |
| 2 | Thrust rod support | 27060105201 | 1 |
| 3 | Thrust rod support | 27060105211 | 1 |
| 4 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 12 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 16 |
| 6 | Bolt GB5785-M16*1.5*140flZnyc-12.9-480 | 4011010583 | 12 |
| 7 | Pin | 27120110901 | 2 |
| 8 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 4 |
