LGMG Off-Highway Dump Truck 2023 – Front drive shaft LG09-QCDZ-610 – F0700-4110706883
Category: 2023 > Off-Highway Dump Truck > MS40 > MS400W2E0M010

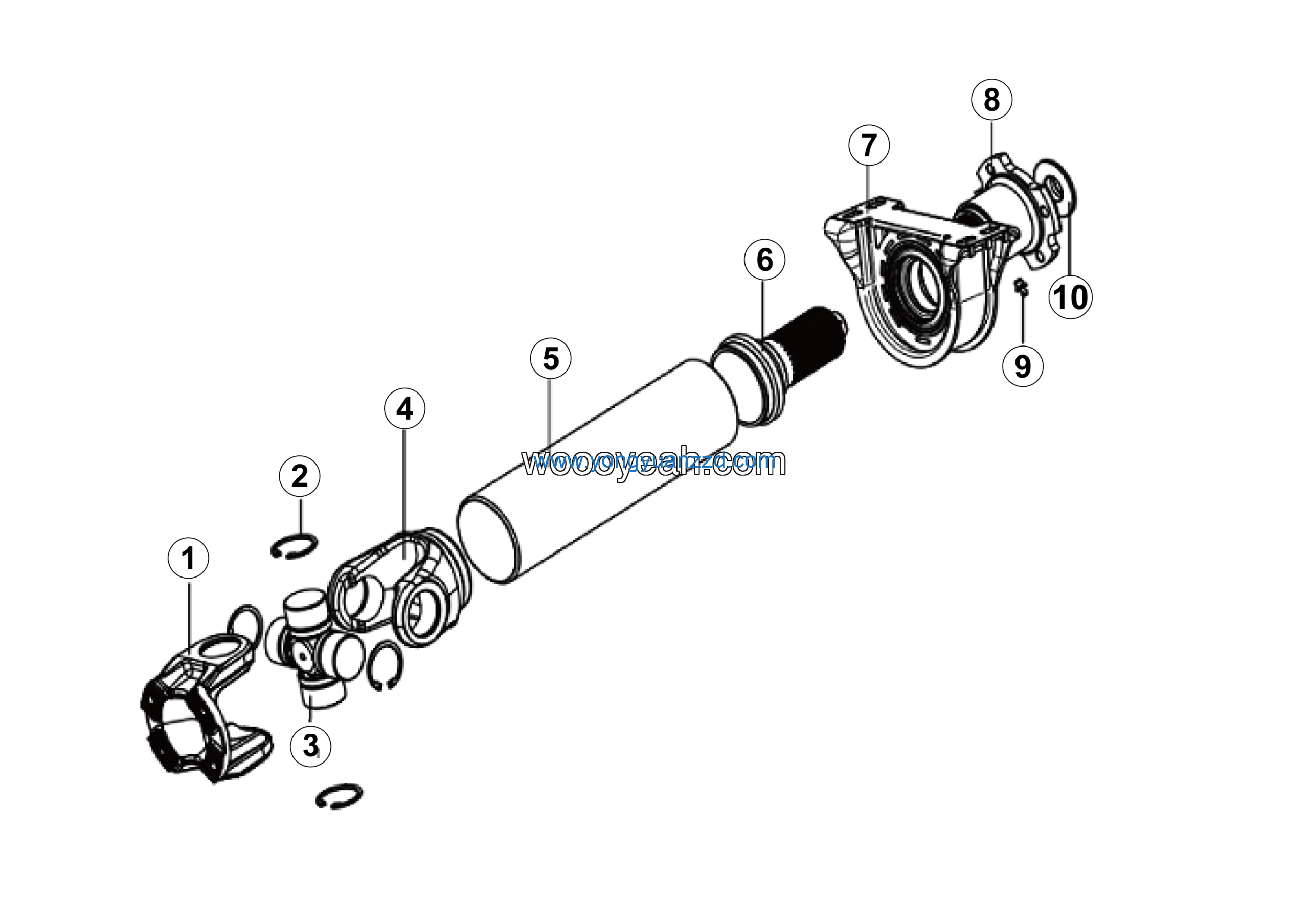

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut 5680-2204052-A | 4110703033011 | 1 |
| 2 | Connecting fork 5680-225062-A | 4110703033001 | 1 |
| 3 | Snap ring 5680-2205063 | 4110703033002 | 4 |
| 4 | Cardan assy 5680-2205080-A | 4110705648002 | 1 |
| 5 | Universal joint yoke 5680-2205090-C | 4110706880001 | 1 |
| 6 | Shaft tube 140 * 6 * 1317 | 4110706883001 | 1 |
| 7 | Spline shaft 5680-2204116-02 | 4110706880003 | 1 |
| 8 | Support assy 5680-2204030-T | 4110706880004 | 1 |
| 9 | Splines connecting disk5680-2204051-02Q1 | 4110702316002 | 1 |
| 10 | Grease nipple M6 GB1152 | 4110703033009 | 1 |
