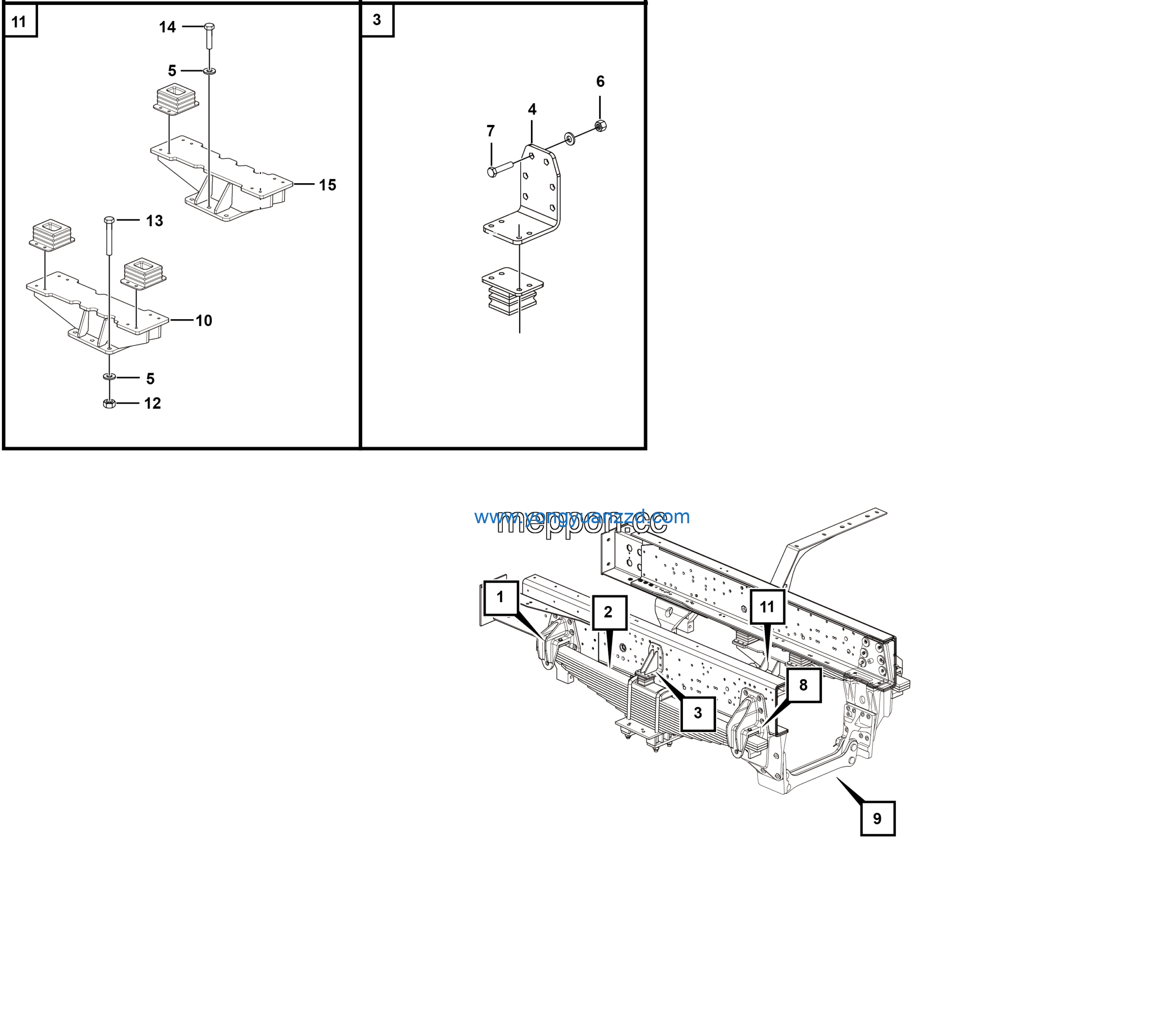

LGMG Off-Highway Dump Truck 2023 – Front leaf spring installation assy – G1201-2712017301
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M012
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Left limit bracket assembly of axle | 27120123321 | 1 |
| 2 | Seat assembly | 27120171671 | 4 |
| 3 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 4 | Bolt GB5785-M16*1.5*90flZnyc-12.9-480 | 4011010558 | 4 |
| 5 | BOLT GB5786-M16*1.5*40flZnyc-12.9-480 | 4011010582 | 10 |
| 6 | Right limit bracket assembly of axle | 27120123331 | 1 |
| 7 | Palte | 27120171581 | 2 |
| 8 | Rear the spring assembly | 27120172781 | 1 |
| 9 | Palte | 27120171661 | 2 |
| 10 | Limit bracket assembly | 27120114401 | 1 |
| 11 | Washer GB97.1-16EpZn-300HV | 4015000181 | 25 |
| 12 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 11 |
| 13 | Bolt GB5783-M16*55flZnyc-12.9-480 | 4011010617 | 11 |
| 14 | Front leaf sring rear support saddle | 27120173021 | 2 |
| 15 | Palte | 27120171651 | 1 |
