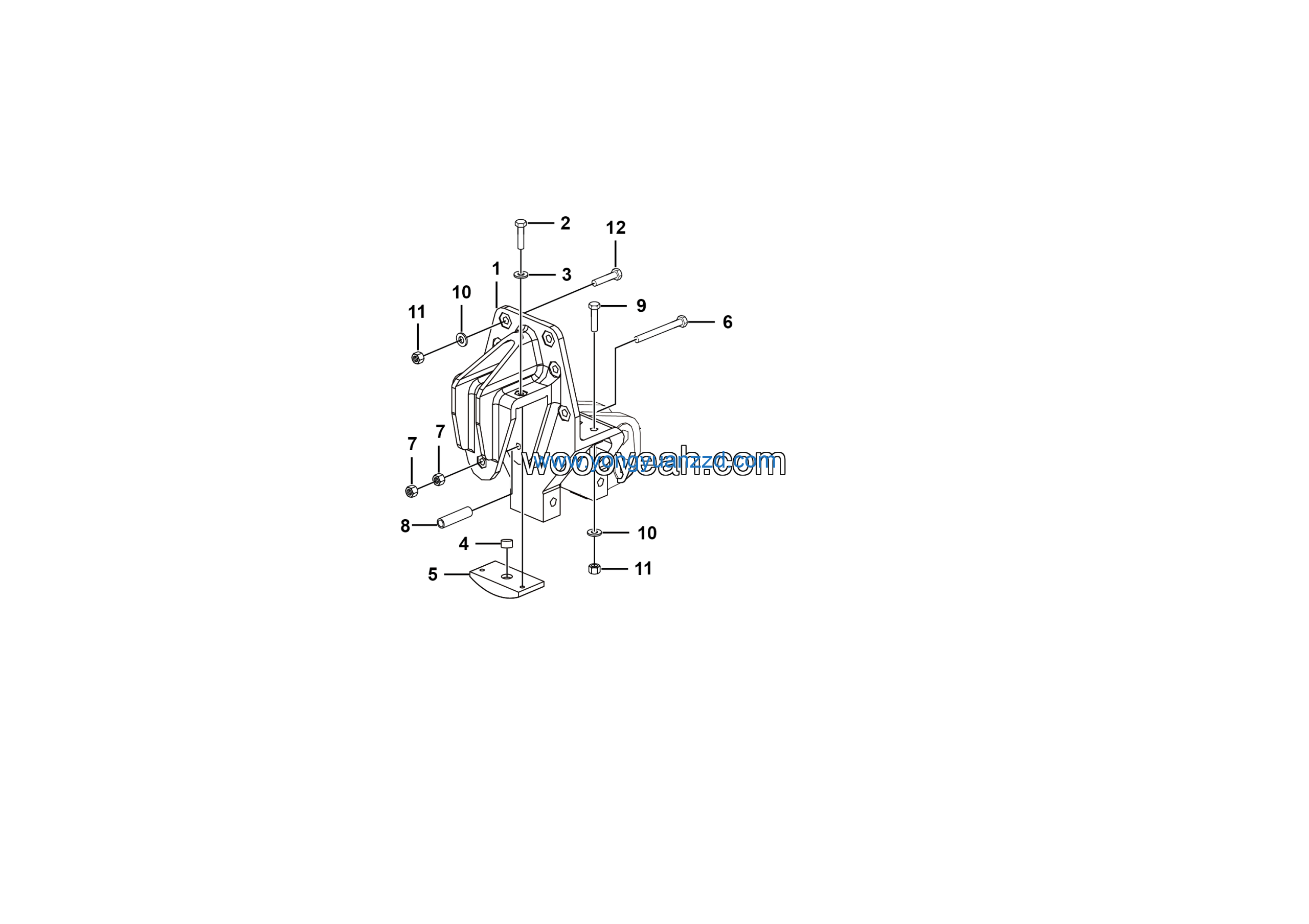

LGMG Off-Highway Dump Truck 2023 – Front Suspension Front Mount Installation Assembly – G1201-2712017580
Category: 2023 > Off-Highway Dump Truck > CMT106 > C1060W3E0A110
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer 18 | 27120105412 | 16 |
| 2 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 10 |
| 3 | Bolt GB5785-M18*1.5*70flZnyc-12.9-480 | 4011010497 | 6 |
| 4 | Front plate spring rear support | 27120118071 | 1 |
| 5 | Bolt GB5786-M12*1.25*45EpZn-8.8 | 4011010405 | 2 |
| 6 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 7 | Cushion block | 27120113681 | 1 |
| 8 | Wearing piece | 27120114992 | 1 |
| 9 | Bolt | 27120100221 | 1 |
| 10 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 2 |
| 11 | Bolt protection tube | 27120100211 | 1 |
| 12 | Bolt GB5785-M18*1.5*85flZnyc-12.9-480 | 4011010505 | 4 |
