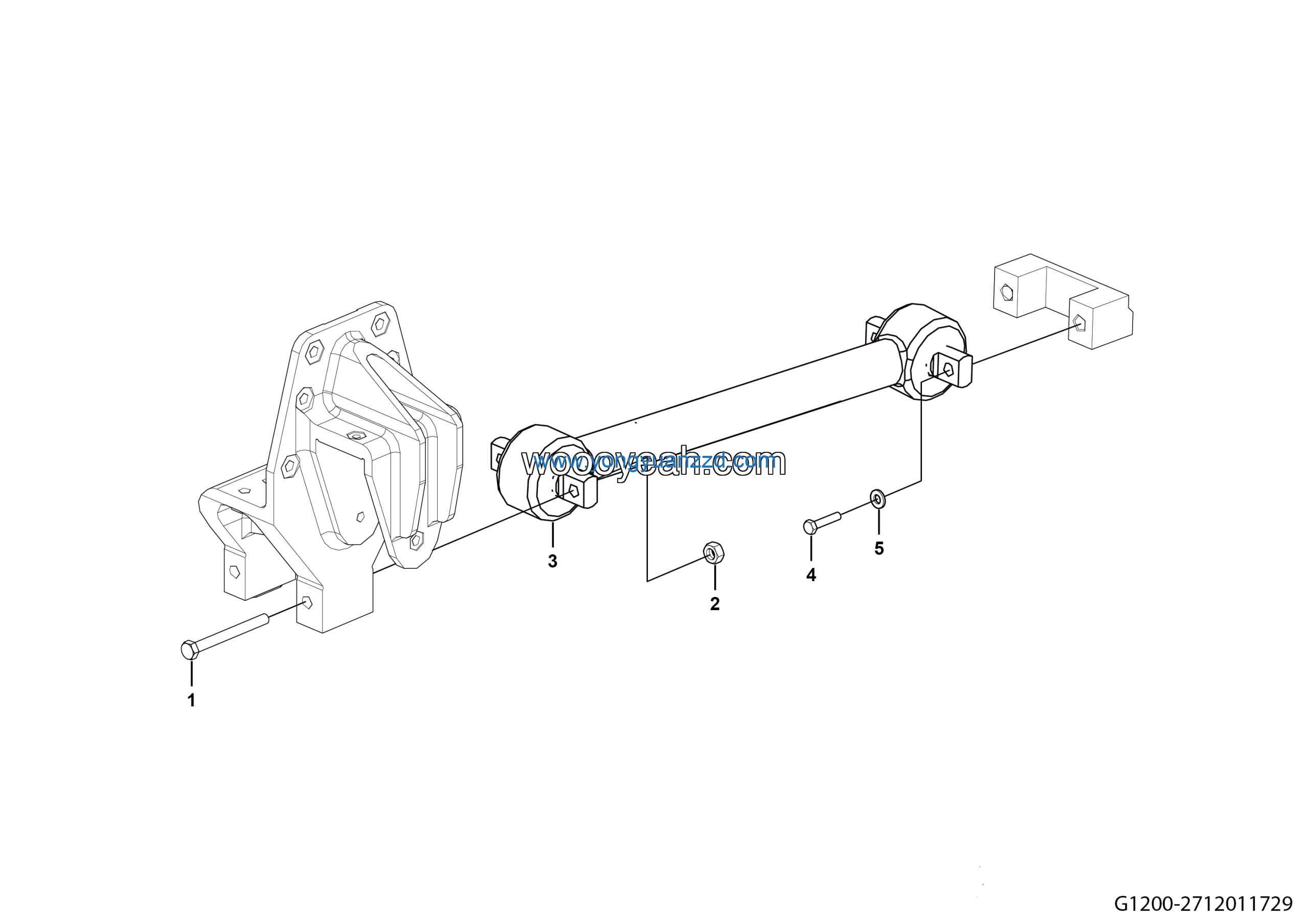

LGMG Off-Highway Dump Truck 2023 – Front thrust rod installation assy – G1200-2712011729
Category: 2023 > Off-Highway Dump Truck > MT60 > M060DW3E0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M24*245flZnyc-12.9-480 | 4011010694 | 4 |
| 2 | Self-locking nut with the shoulder | 27120103611 | 4 |
| 3 | FR thrust rod assy | 4110002003 | 2 |
| 4 | BOLT GB5783-M24*90flZnyc-12.9-480 | 4011010695 | 4 |
| 5 | Washer GB1230-24EpZn-45 | 4015000003 | 4 |
