LGMG Off-Highway Dump Truck 2023 – Fuel tank assy – A0201-2702010727.S1A
Category: 2023 > Off-Highway Dump Truck > CMT96 > C0960WF73

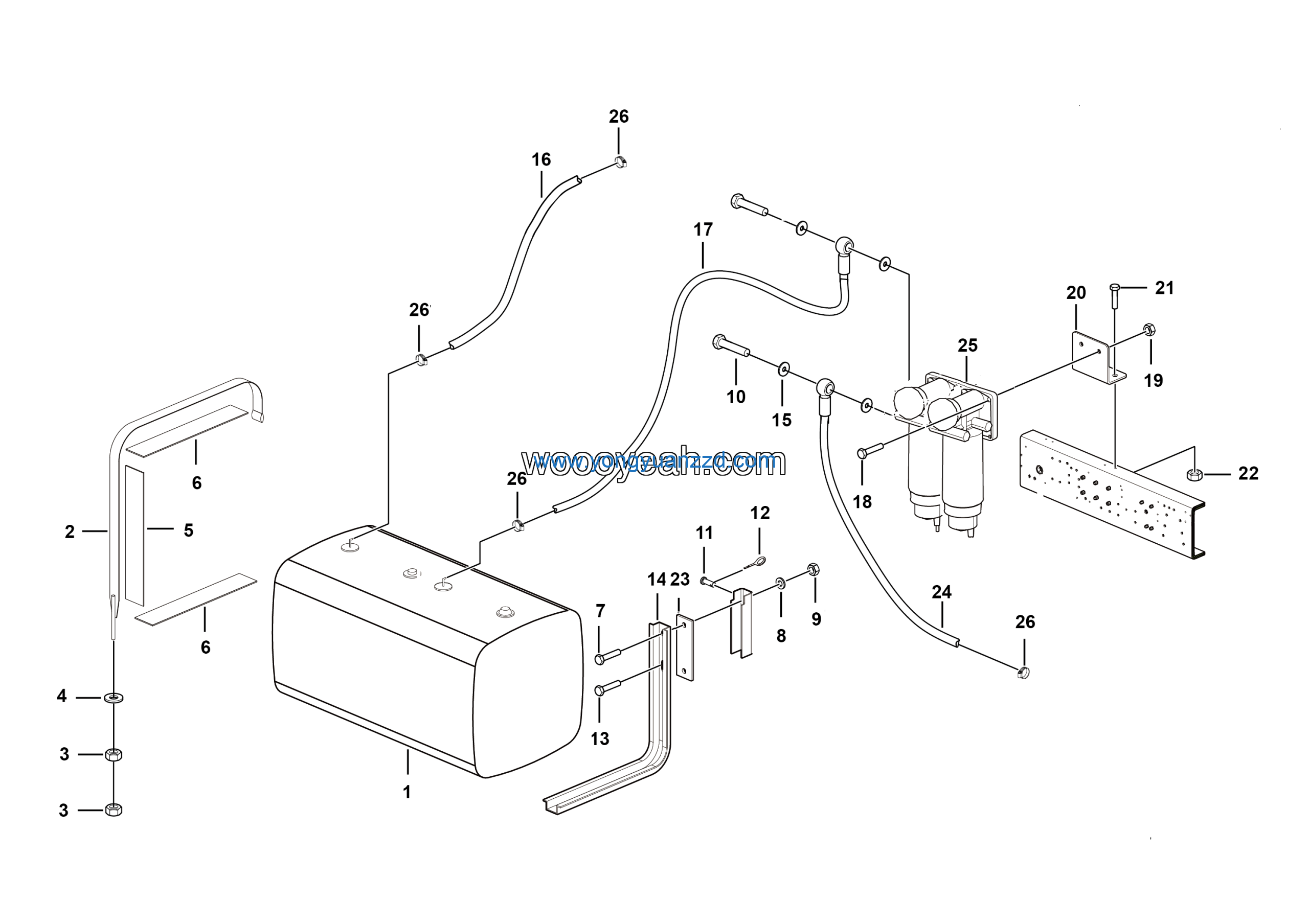

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt JB999-M16*1.5*35EpZn-35 | 4011000318 | 2 |
| 2 | Pin | 4110000120 | 3 |
| 3 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
| 4 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 2 |
| 5 | Fuel tank bracket assy | 4110000118 | 3 |
| 6 | Washer JB1002-16-T2 | 4015000120 | 5 |
| 7 | Pipe ⅱ | 27020104841 | 1 |
| 8 | Fuel pipe | 27020104321 | 1 |
| 9 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 2 |
| 10 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 11 | Iron fuel tank 530L LG02-RYX-04 | 4190707631 | 1 |
| 12 | Support | 27020104191 | 1 |
| 13 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 6 |
| 14 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 6 |
| 15 | Backing plate | 27020101971 | 2 |
| 16 | Pipe | 27020105771 | 1 |
| 17 | Engine fuel filter | 4110702781 | 1 |
| 18 | Hose clamp JB8870-D20 | 4017000010 | 6 |
| 19 | Cable tie assy | 4110000119 | 3 |
| 20 | Nut GB6170-M16EpZn-8 | 4013000016 | 6 |
| 21 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 22 | Flap | 4110000121 | 3 |
| 23 | Flap | 4110000122 | 6 |
| 24 | Bolt GB5783-M16*70EpZn-10.9 | 4011010204 | 4 |
| 25 | Washer GB97.1-16EpZn-300HV | 4015000181 | 3 |
| 26 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
