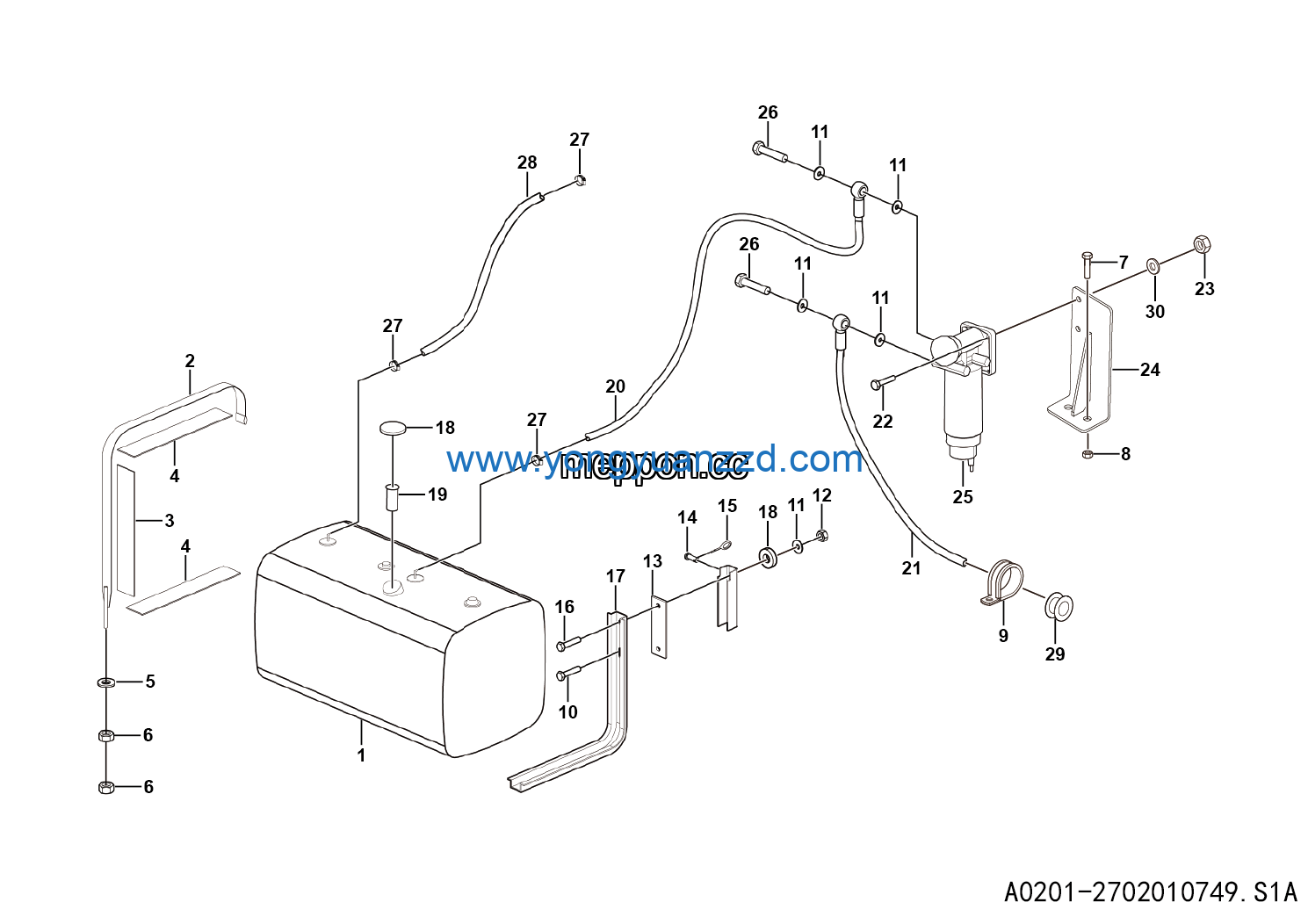

LGMG Off-Highway Dump Truck 2023 – Fuel tank assy – A0201-2702010749.S1A
Category: 2023 > Off-Highway Dump Truck > MT86HF > M0860W4A0M010
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M16*75EpZn-10.9 | 4011010232 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 10 |
| 3 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 4 | Backing plate | 27020101971 | 1 |
| 5 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
| 6 | Pin | 4110000120 | 3 |
| 7 | Bolt GB5783-M16*70EpZn-10.9 | 4011010204 | 5 |
| 8 | Fuel tank bracket assy | 4110000118 | 3 |
| 9 | Plate | 27020105041 | 1 |
| 10 | Pipe clamp LGB169-B30*12.5 | 4043015522 | 5 |
| 11 | Iron fuel tank 530L LG02-RYX-04 | 4190707631 | 1 |
| 12 | Fuel tube LZB103-14*3500-P | 4049010234 | 1 |
| 13 | Fuel tube LZB103-14*4000-P | 4049010236 | 1 |
| 14 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 3 |
| 15 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 3 |
| 16 | Support | 27020104141 | 1 |
| 17 | Engine fuel filter | 4110702781 | 1 |
| 18 | Bolt GB16674.1-M10*40EpZn-8.8 | 4011000163 | 8 |
| 19 | Hose clamp JB8870-D20 | 4017000010 | 6 |
| 20 | Fuel tube LZB103-14*4300-P | 4049010235 | 1 |
| 21 | String casing | 27140105021 | 4 |
| 22 | Cable tie assy | 4110000119 | 3 |
| 23 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 24 | Flap | 4110000121 | 3 |
| 25 | Flap | 4110000122 | 6 |
| 26 | Washer GB97.1-16EpZn-300HV | 4015000181 | 9 |
| 27 | Nut GB6170-M16EpZn-8 | 4013000016 | 6 |
| 28 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 2 |
| 29 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 10 |
| 30 | Pipe clamp LGB169-A30*12.5 | 4041002382 | 3 |
