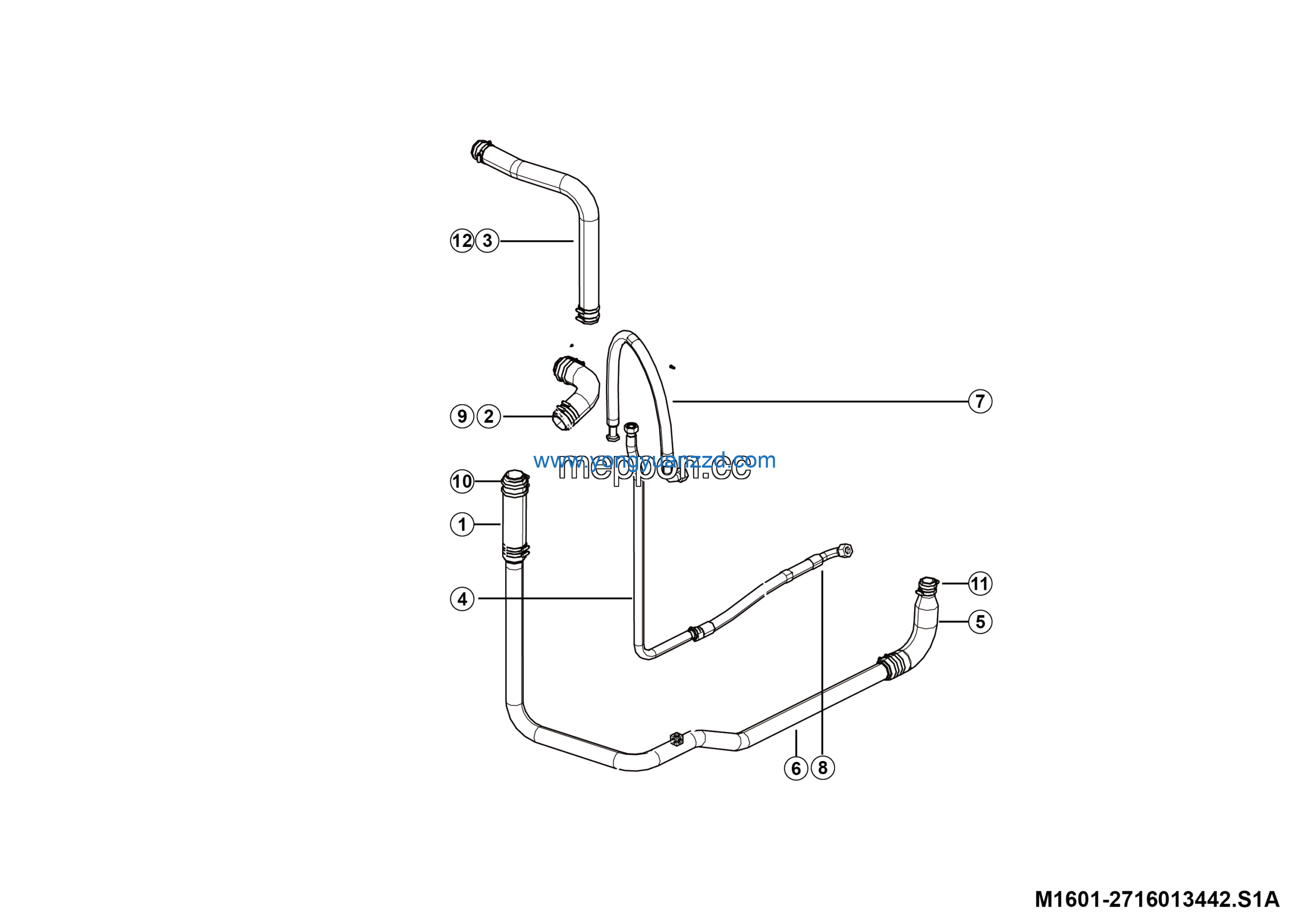

LGMG Off-Highway Dump Truck 2023 – Hoisting lines assy – M1601-2716013442.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A404
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose clamp JB8870-D90 | 4017000013 | 4 |
| 2 | Hose clamp JB8870-D60 | 4017000007 | 2 |
| 3 | Hose clamp JB8870-D70 | 4017000017 | 4 |
| 4 | Oil suction hose | 27160133231 | 1 |
| 5 | Oil suction hose | 27160133241 | 1 |
| 6 | Oil return hose | 27160133251 | 1 |
| 7 | Pipe weldment 34*3.5*933 | 27160134261 | 1 |
| 8 | Oil suction hose 80*6*269 | 27160134431 | 1 |
| 9 | Pipe weldment 60*3*1450 | 27160134451 | 1 |
| 10 | Hose-F48715CA162816-1200-SG | 4120712534 | 1 |
| 11 | Hose-F487CACF282816-770 | 4120712561 | 1 |
| 12 | Hose clamp JB8870-D80 | 4017000014 | 6 |
