LGMG Off-Highway Dump Truck 2023 – Hydraulic lifting assembly – M1601-2716013248.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A402

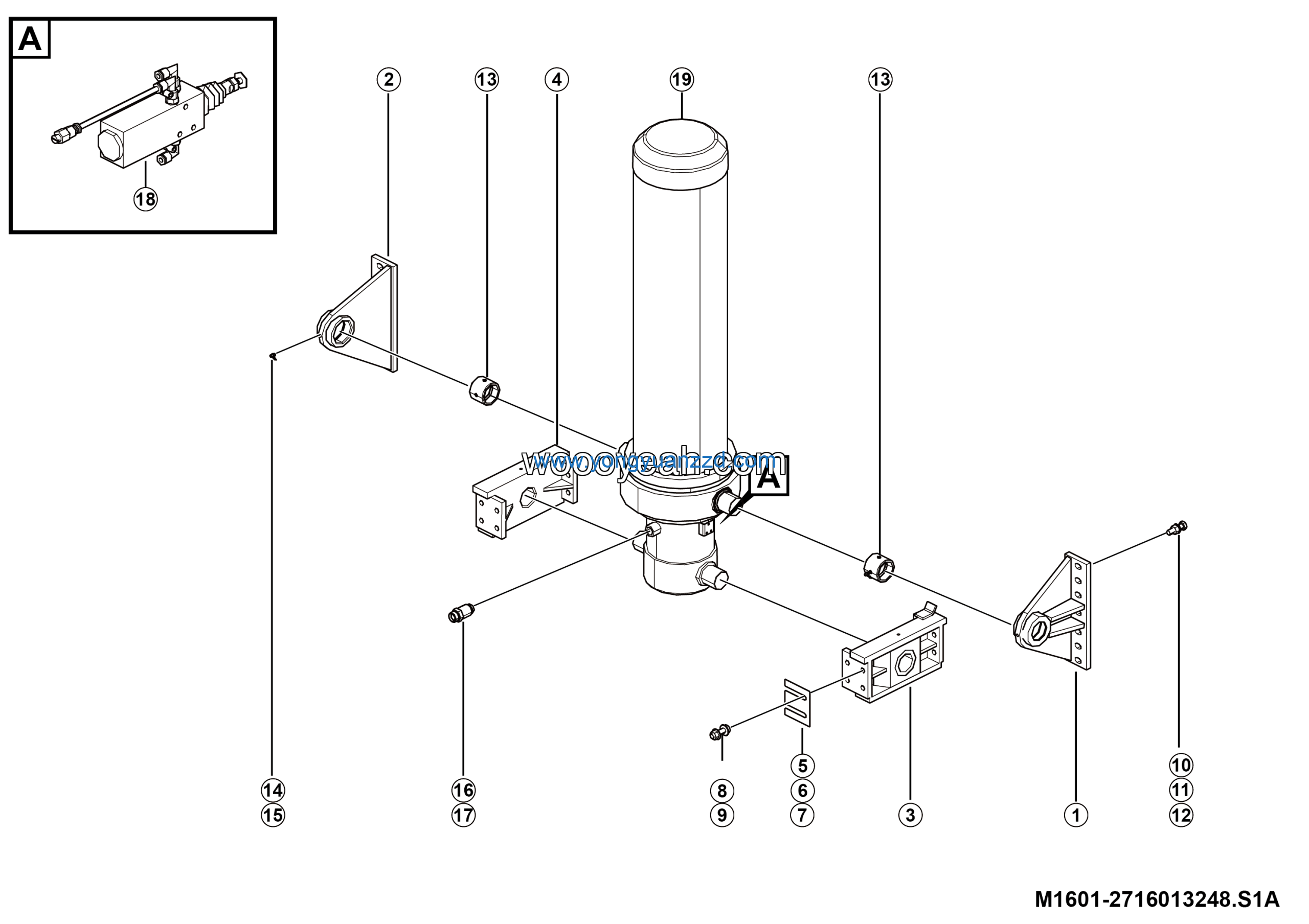

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M18*65flZnyc-12.9-480 | 4011010912 | 14 |
| 2 | Washer GB1230-18EpZn-45 | 4015010219 | 14 |
| 3 | Nut GB6185.1-M18flZnyc-12-480 | 4013010321 | 14 |
| 4 | BUSHING LGB302-70*65B3 | 4043015519 | 2 |
| 5 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 6 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 7 | Nipple | 27160120241 | 1 |
| 8 | O-ring GB3452.1-32.5*2.65G | 4030000276 | 1 |
| 9 | Limit valve | 4120001018 | 1 |
| 10 | Lifting cylinder 4TG-F196*5060ZZ-02 | 4120708553 | 1 |
| 11 | Bracket | 27160121391 | 1 |
| 12 | Bracket | 27160121401 | 1 |
| 13 | Frame bracket（LH） | 4120710300 | 1 |
| 14 | Frame bracket（RH） | 4120710299 | 1 |
| 15 | Trimmed gasket | 27160106411 | 1 |
| 16 | Trimmed gasket | 27160106421 | 1 |
| 17 | Trimmed gasket | 27160106431 | 1 |
| 18 | Bolt QC340-M18*1.5*60EpZn-10.9 | 4011011616 | 16 |
| 19 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 16 |
