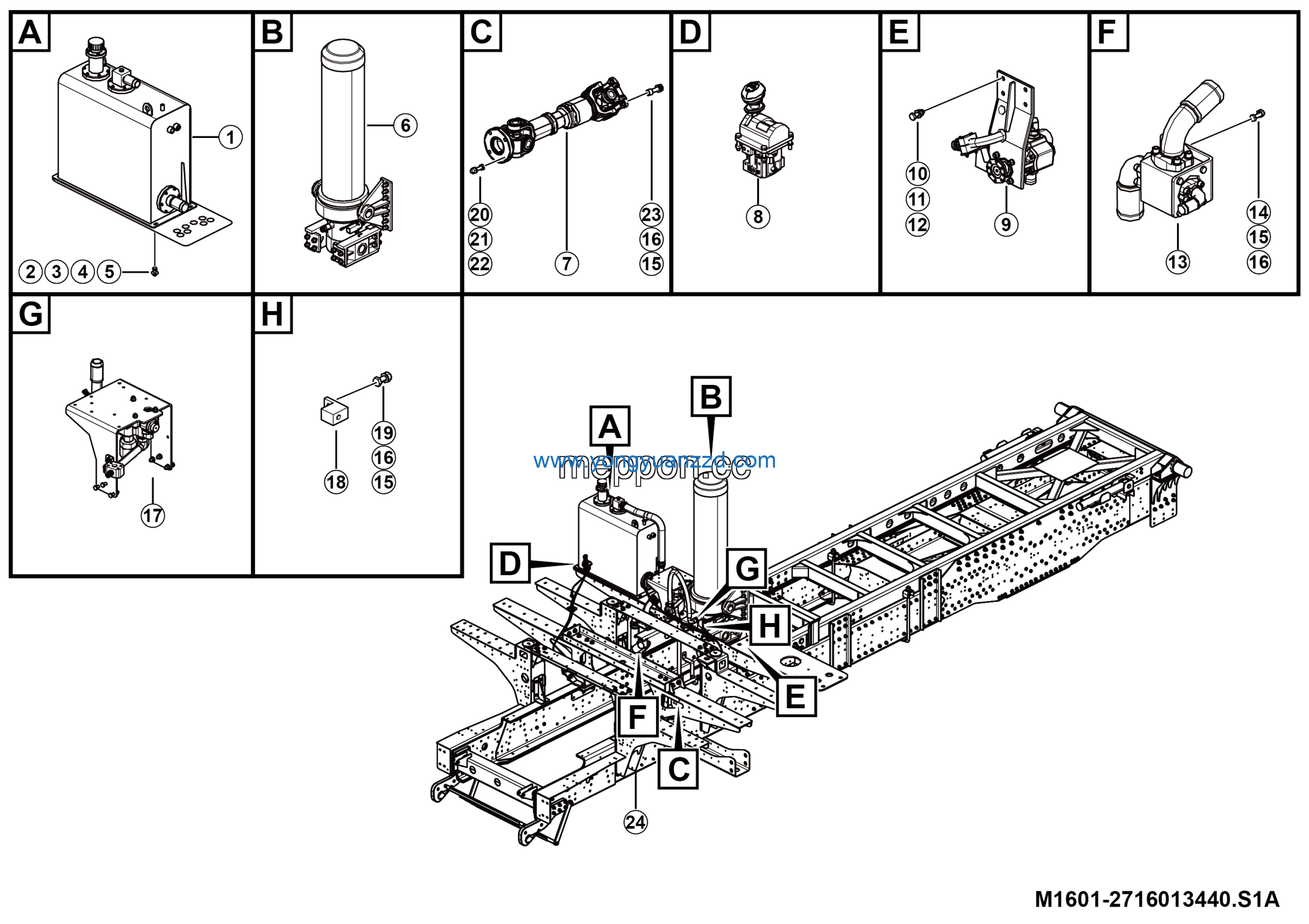

LGMG Off-Highway Dump Truck 2023 – Hydraulic lifting assy – M1601-2716013440.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A402
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5786-M16*1.5*50flZnyc-12.9-480 | 4011010555 | 4 |
| 2 | Washer GB1230-16-45 | 4015010101 | 4 |
| 3 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 4 | Oil suction valve assembly | 27160134331 | 1 |
| 5 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 7 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 8 | Lift valve installation assembly | 27160134271 | 1 |
| 9 | Support | 27160129731 | 1 |
| 10 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 11 | Hydraulic oil tank assy | 27160134221 | 1 |
| 12 | Bolt GB5783-M8*35EpZn-10.9 | 4011000764 | 4 |
| 13 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 14 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 15 | Screw GB70.1-M10*35EpZn-10.9 | 4014000178 | 4 |
| 16 | Hydraulic hoisting accessories assy | 27160134411 | 1 |
| 17 | Bolt GB5783-M14*45flZnyc-12.9-480 | 4011010670 | 4 |
| 18 | Washer GB97.1-14flZnyc-300HV-480 | 4015010341 | 4 |
| 19 | Washer GB96.1-14flZnyc-300HV-480 | 4015010371 | 4 |
| 20 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 4 |
| 21 | Hydraulic lifting assembly | 27160132481 | 1 |
| 22 | Power takeoff transmisson shaft LG16-CDZ-380 | 4110704976 | 1 |
| 23 | Asm-control valve | 27160128721 | 1 |
| 24 | Gear pump installation assembly | 27160134641 | 1 |
