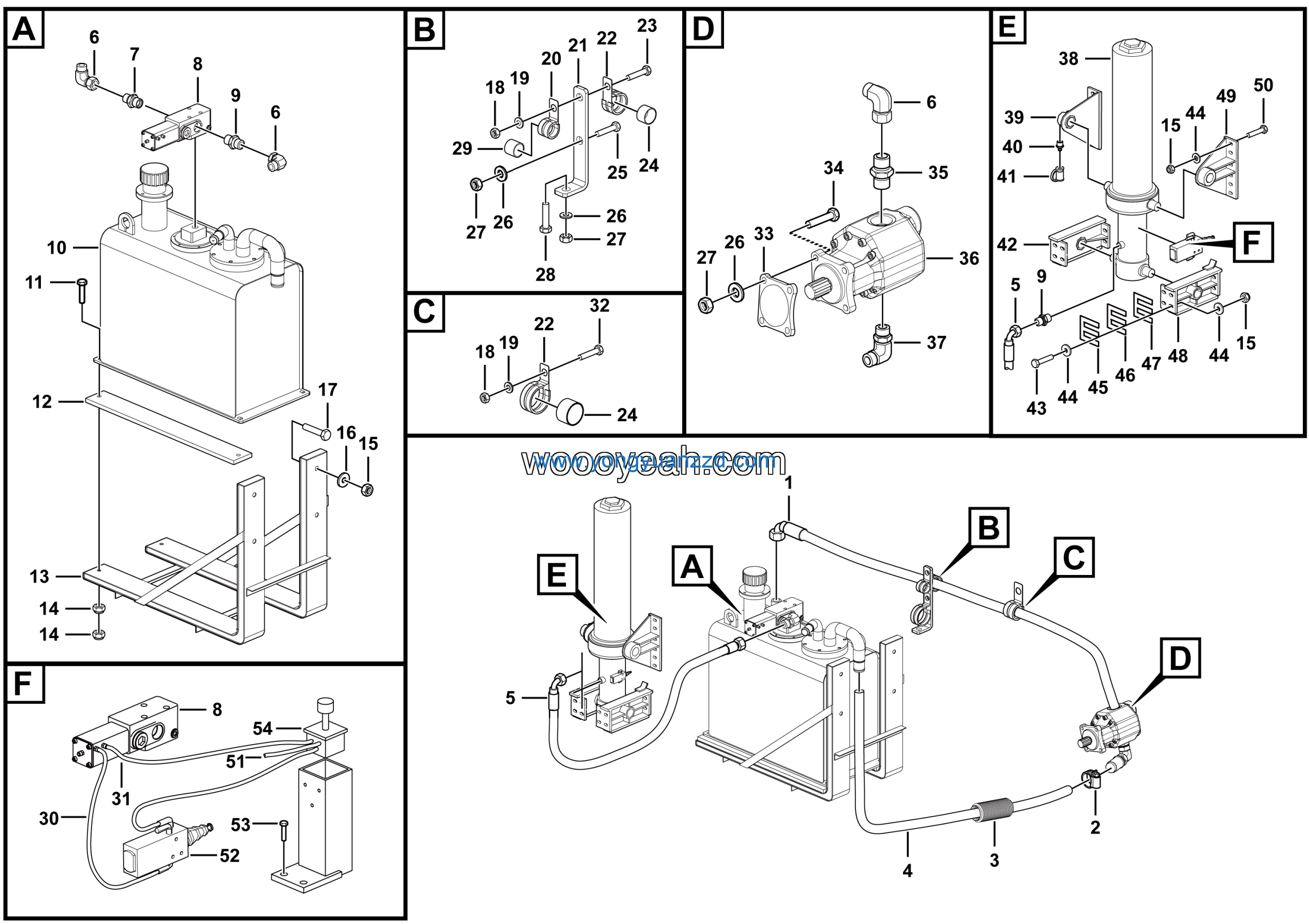

LGMG Off-Highway Dump Truck 2023 – Hydraulic lifting system – M1601-2716010836.S1B1
Category: 2023 > Off-Highway Dump Truck > MT50 > M0500WE13
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydraulic tank assembly | 27160106831 | 1 |
| 2 | Bolt GB5782-M12*80EpZn-8.8 | 4011000334 | 4 |
| 3 | Pad | 27160105341 | 2 |
| 4 | Oil tank frame assembly | 27160106331 | 1 |
| 5 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 6 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 28 |
| 7 | Washer GB96.1-16EpZn-300HV | 4015000279 | 4 |
| 8 | Bolt GB5782-M16*85EpZn-10.9 | 4011010349 | 4 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 10 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 11 | Hose assembly | 27160106951 | 1 |
| 12 | Pipe clamp LGB167-0846 | 4041010082 | 1 |
| 13 | Plate | 27160108721 | 1 |
| 14 | Pipe clamp LGB167-0635 | 4041000801 | 2 |
| 15 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 16 | Cushion sleeve LGB123-0635 | 4041001253 | 2 |
| 17 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 1 |
| 18 | Washer GB97.1-12EpZn-300HV | 4015000168 | 14 |
| 19 | Nut GB6170-M12EpZn-10 | 4013000150 | 6 |
| 20 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 1 |
| 21 | CUSHION SLEEVE LGB123-0846 | 4041001636 | 1 |
| 22 | Double head double layer clamp 50-60 | 4120000953 | 2 |
| 23 | Pipe | 27160113241 | 1 |
| 24 | Pipe | 27160113251 | 1 |
| 25 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 26 | Gasket | 27160104721 | 1 |
| 27 | Bolt GB5783-M12*55EpZn-10.9 | 4011000761 | 4 |
| 28 | Joint GE28LR11/4EDOMD | 4190001242 | 1 |
| 29 | Lifting pump 250bar | 4120001019 | 1 |
| 30 | Low pressure joint G1 1/4-φ46 | 4120001011 | 1 |
| 31 | Hyd cylinder 4TG-FV160-4300ZZ | 4120001053 | 1 |
| 32 | Hydro-cylinder bracket（RH） | 4120001007 | 1 |
| 33 | Spiral sheath | 27160100461 | 1 |
| 34 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 35 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 36 | Frame bracket | 4120001008 | 1 |
| 37 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 16 |
| 38 | Washer GB1230-16EpZn-45 | 4015000001 | 44 |
| 39 | Trimmed gasket | 27160106411 | 1 |
| 40 | Trimmed gasket | 27160106421 | 1 |
| 41 | Trimmed gasket | 27160106431 | 1 |
| 42 | Frame bracket | 27160106881 | 1 |
| 43 | Hydro-cylinder bracket（LH） | 4120001006 | 1 |
| 44 | Hose | 27160108541 | 1 |
| 45 | Bolt GB5782-M16*65flZnyc-12.9-480 | 4011010556 | 12 |
| 46 | Pipe | 27160115691 | 1 |
| 47 | Limit valve | 4120001018 | 1 |
| 48 | Bolt GB16674.1-M5*25EpZn-8.8 | 4011000586 | 4 |
| 49 | Control air valve | 4120001017 | 1 |
| 50 | High pressure hose assembly | 27160108381 | 1 |
| 51 | JOINT LGB143-03625 | 4041001211 | 3 |
| 52 | Check valve | 4120000990 | 1 |
| 53 | Lifting valve | 4120001101 | 1 |
| 54 | Straight joint 1CB-36-16 | 4120000581 | 2 |
