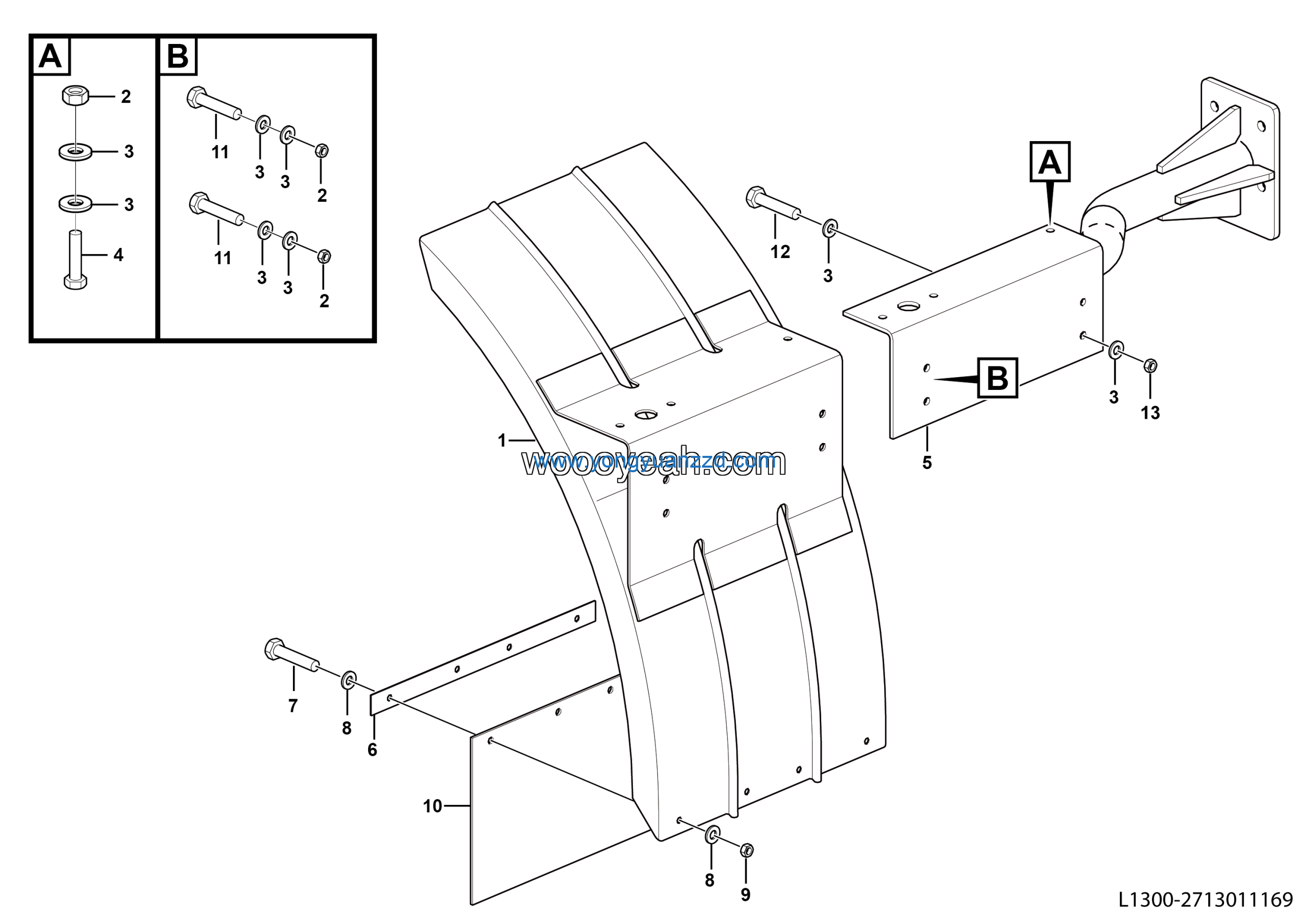

LGMG Off-Highway Dump Truck 2023 – Left mudguard assy – L1300-2713011169
Category: 2023 > Off-Highway Dump Truck > MT50 > M0500WE14
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rubber mat | 27130111753 | 1 |
| 2 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 3 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 5 | Left fender | 27130111801 | 1 |
| 6 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 5 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 10 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 9 | Plate | 27130111831 | 1 |
| 10 | Platen | 27130111762 | 1 |
| 11 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 12 | Washer GB97.1-8EpZn-300HV | 4015000072 | 8 |
| 13 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
