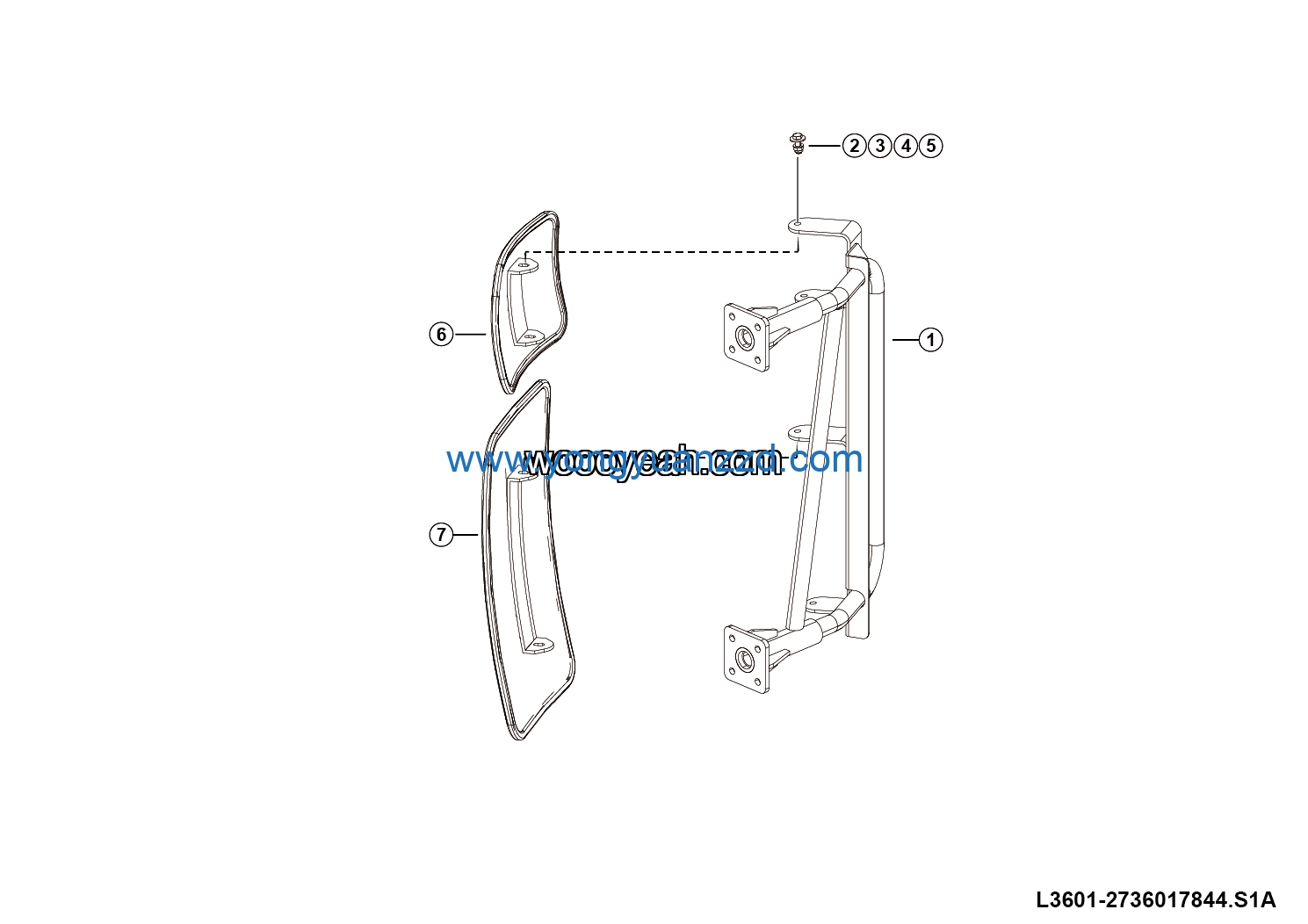

LGMG Off-Highway Dump Truck 2023 – LH rearview mirror assy – L3601-2736017844.S1A
Category: 2023 > Off-Highway Dump Truck > RT100 > R1000W3A0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lh rearview mirror bracket wldmt | 27360178451 | 1 |
| 2 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 3 | Washer GB96.1-8EpZn-300HV | 4015000256 | 5 |
| 4 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 5 | Nut GB6185.1-M8EpZn-10 | 4013010132 | 4 |
| 6 | Wide angle rearview mirror | 4190001366 | 1 |
| 7 | Main external rearview mirror | 4190001365 | 1 |
