LGMG Off-Highway Dump Truck 2023 – Lifting cylinder assy 4TG-FV180*4750ZZ-A – M1600-4120001750
Category: 2023 > Off-Highway Dump Truck > MT86H > M086HWG01

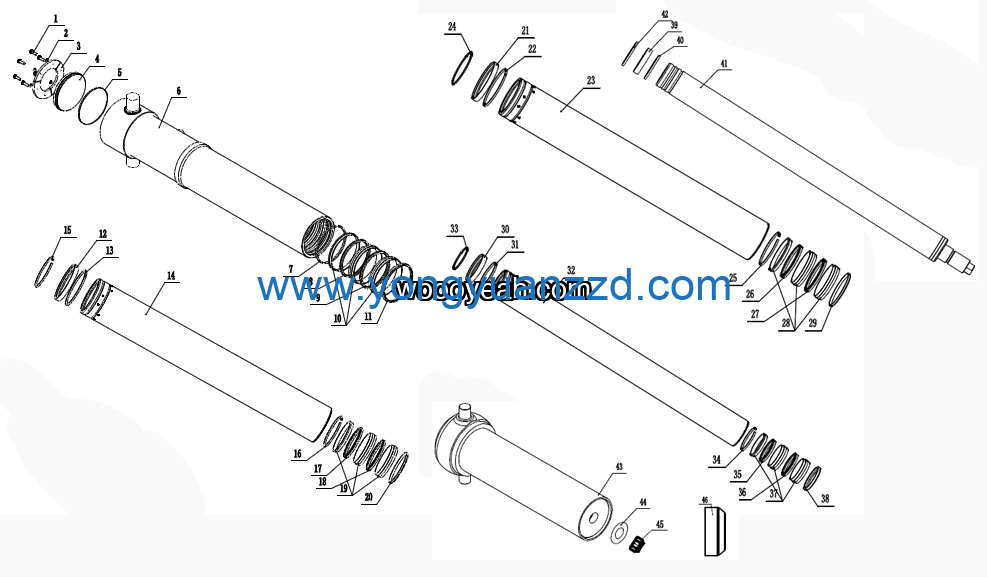

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support ring 320500180-R1（180） | 4030100198005 | 5 |
| 2 | Ring | 4030100198006 | 1 |
| 3 | Ring | 4030100198007 | 1 |
| 4 | 180 limit key 320500180-T1 | 4030100198008 | 1 |
| 5 | Primary sleeve 07204750J2 | 4120001530005 | 1 |
| 6 | Gasket | 4030100198009 | 1 |
| 7 | Gasket | 4030100198009 | 1 |
| 8 | Washer | 4030100198011 | 1 |
| 9 | Ring | 4030100198012 | 1 |
| 10 | Ring | 4030100198013 | 5 |
| 11 | Bolt GB5780-M10*30/1001030-12.9 | 4120001054001 | 6 |
| 12 | Ring | 4030100198014 | 1 |
| 13 | Ring | 4030100198015 | 1 |
| 14 | Gasket | 4030100198016 | 2 |
| 15 | Secondary sleeve 07204750J3 | 4120001530004 | 1 |
| 16 | Gasket | 4030100198018 | 1 |
| 17 | Gasket | 4030100198018 | 1 |
| 18 | Ring | 4030100198019 | 1 |
| 19 | Ring | 4030100198020 | 1 |
| 20 | Ring | 4030100198021 | 5 |
| 21 | Ring | 4030100198022 | 1 |
| 22 | Elastic washer 1001006 | 4120001699002 | 6 |
| 23 | Ring | 4030100198023 | 1 |
| 24 | Gasket | 4030100198024 | 2 |
| 25 | Three-stage sleeve 07204750J4 | 4120001530003 | 1 |
| 26 | Gasket | 4030100198026 | 1 |
| 27 | Gasket | 4030100198026 | 1 |
| 28 | Ring | 4030100198027 | 1 |
| 29 | Ring | 4030100198028 | 1 |
| 30 | Ring | 4030100198029 | 5 |
| 31 | Ring | 4030100198030 | 1 |
| 32 | Ring | 4030100198031 | 1 |
| 33 | Locking block 32050071 | 4120001047001 | 3 |
| 34 | Gasket | 4030100198032 | 1 |
| 35 | Plunger piston sleeve 07204750J5 | 4120001530002 | 1 |
| 36 | Gasket | 4030100198032 | 1 |
| 37 | Sheath sleeve 07204750J6 | 4120001530001 | 1 |
| 38 | Washer GB97.1-56 | 4120001054042 | 1 |
| 39 | Self-locking nut GB6172.2-M56*3 | 4120001054043 | 1 |
| 40 | Bottom 32050070 | 4120001047002 | 1 |
| 41 | Drum ring 32050073 | 4120001047003 | 1 |
| 42 | Seal kit 4TG-FV180*4750ZZ-A | 4120001750001 | 1 |
| 43 | Gasket | 4030100198002 | 1 |
| 44 | Washer | 4030100198003 | 1 |
| 45 | Seal ring 320500180-Y1（180） | 4030100198004 | 1 |
