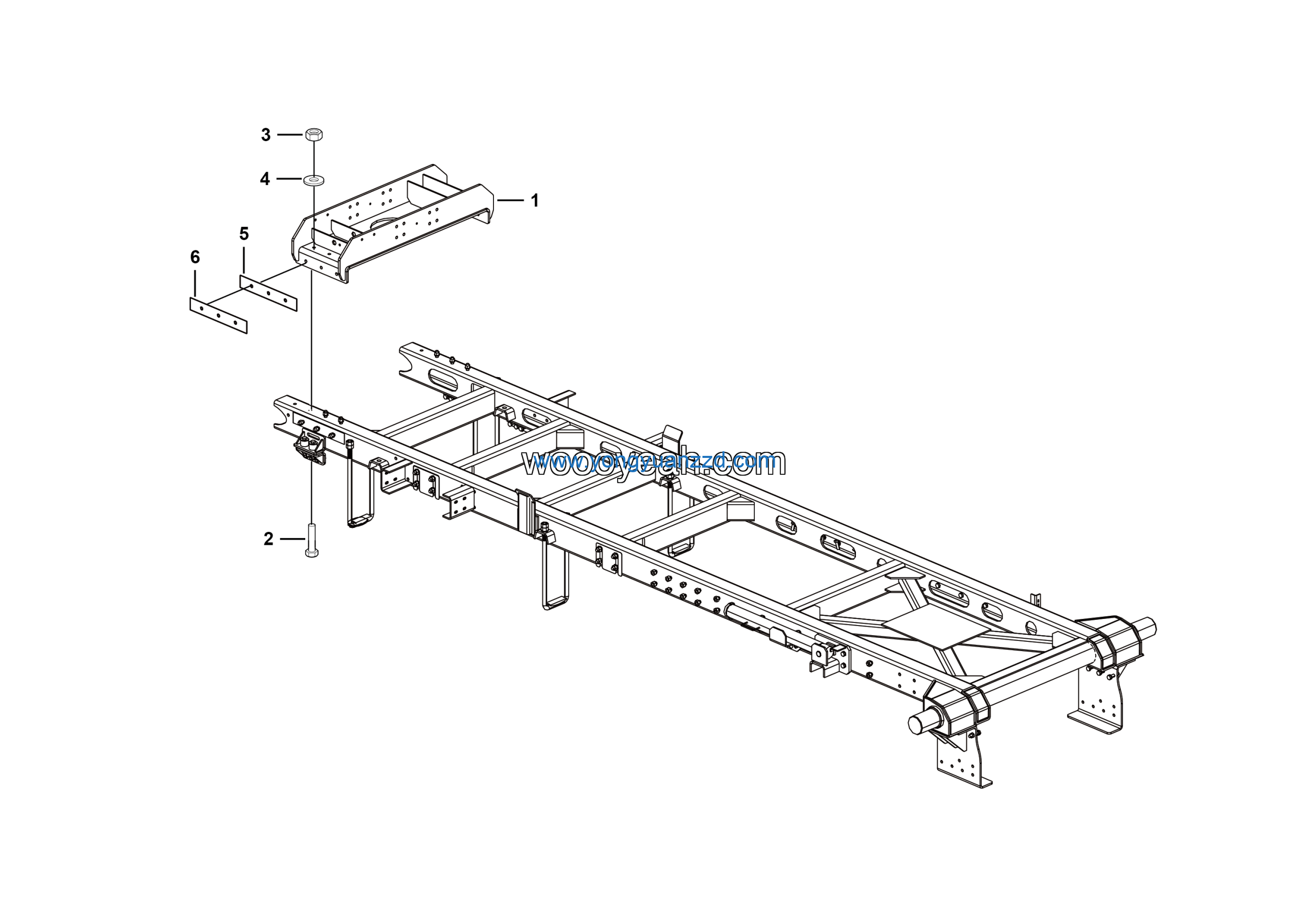

LGMG Off-Highway Dump Truck 2023 – Lifting cylinder support installation assy – I1500-2740010245
Category: 2023 > Off-Highway Dump Truck > CMT96 > C0960WF79
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assembly | 27400101953 | 1 |
| 2 | Bolt GB5786-M16*1.5*50flZnyc-12.9-480 | 4011010555 | 12 |
| 3 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 12 |
| 4 | Washer GB97.1-16EpZn-300HV | 4015000181 | 24 |
| 5 | Adjusting Shim | 27170125441 | 2 |
| 6 | Adjusting Shim | 27170125431 | 2 |
