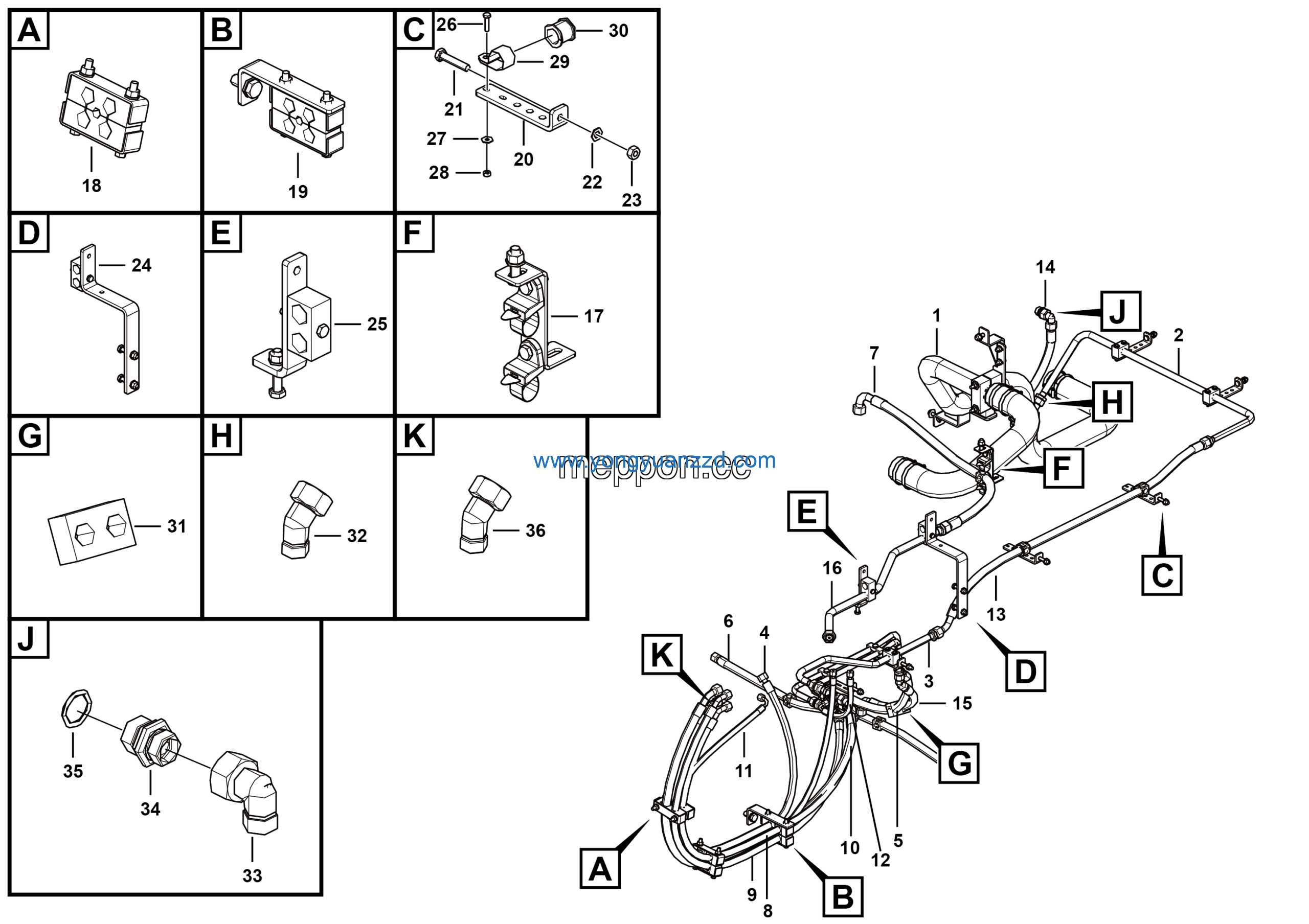

LGMG Off-Highway Dump Truck 2023 – lines GP-steering – H1501-2715012854.S1A
Category: 2023 > Off-Highway Dump Truck > MT96L > M096LW3A0M309
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose F481CACE181810-1750 | 4120711548 | 1 |
| 2 | Hose F481CACF080804-1800 | 4120711549 | 1 |
| 3 | Hose F481CACF080804-420 | 4120711464-001 | 1 |
| 4 | Hose F681CACE181810-1350 | 4120711564 | 1 |
| 5 | Hose F681CACF181810-650 | 4120711565 | 1 |
| 6 | Hose LGB128-006050 | 4041001512-001 | 1 |
| 7 | Oil pipe welding 01 | 27150131771 | 1 |
| 8 | Fixation of rubber hose | 27150128501 | 1 |
| 9 | Pipe rubber clamp assy | 27150120831 | 2 |
| 10 | Steering pipe clamp installation | 27150125021 | 1 |
| 11 | Pipe assembly | 27150128351 | 1 |
| 12 | Bracket | 27150127901 | 2 |
| 13 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 16 | Plate | 27150128651 | 1 |
| 17 | Steel pipe fixation | 27150128491 | 1 |
| 18 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 2 |
| 19 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 20 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 21 | Pipe clamp LGB167-0426 | 4041001169 | 2 |
| 22 | Asm-pipe | 27150130251 | 1 |
| 23 | Cushion sleeve LGB123-0426 | 4041001484 | 2 |
| 24 | Clamp TTPG3-323 | 4120710492 | 1 |
| 25 | Combination joint LGB143-12616 | 4041001417 | 1 |
| 26 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 27 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 28 | O-ring LGB168-12331 | 4041000779 | 1 |
| 29 | Combination joint LGB143-12213 | 4041001218 | 1 |
| 30 | Pipe assembly | 27150128441 | 1 |
| 31 | Hose F351TCCACA151508-1550 | 4120711550 | 1 |
| 32 | Hose LGB128-006070 | 4041000114-003 | 1 |
| 33 | Hose F351TCCACA151508-700-AG | 4120711551 | 2 |
| 34 | Hose F351TCCACF222212-980 | 4120712468 | 1 |
| 35 | Hose F381CACE151508-1700 | 4120711563 | 1 |
| 36 | Hose F381CACE151508-1760 | 4120711562 | 1 |
