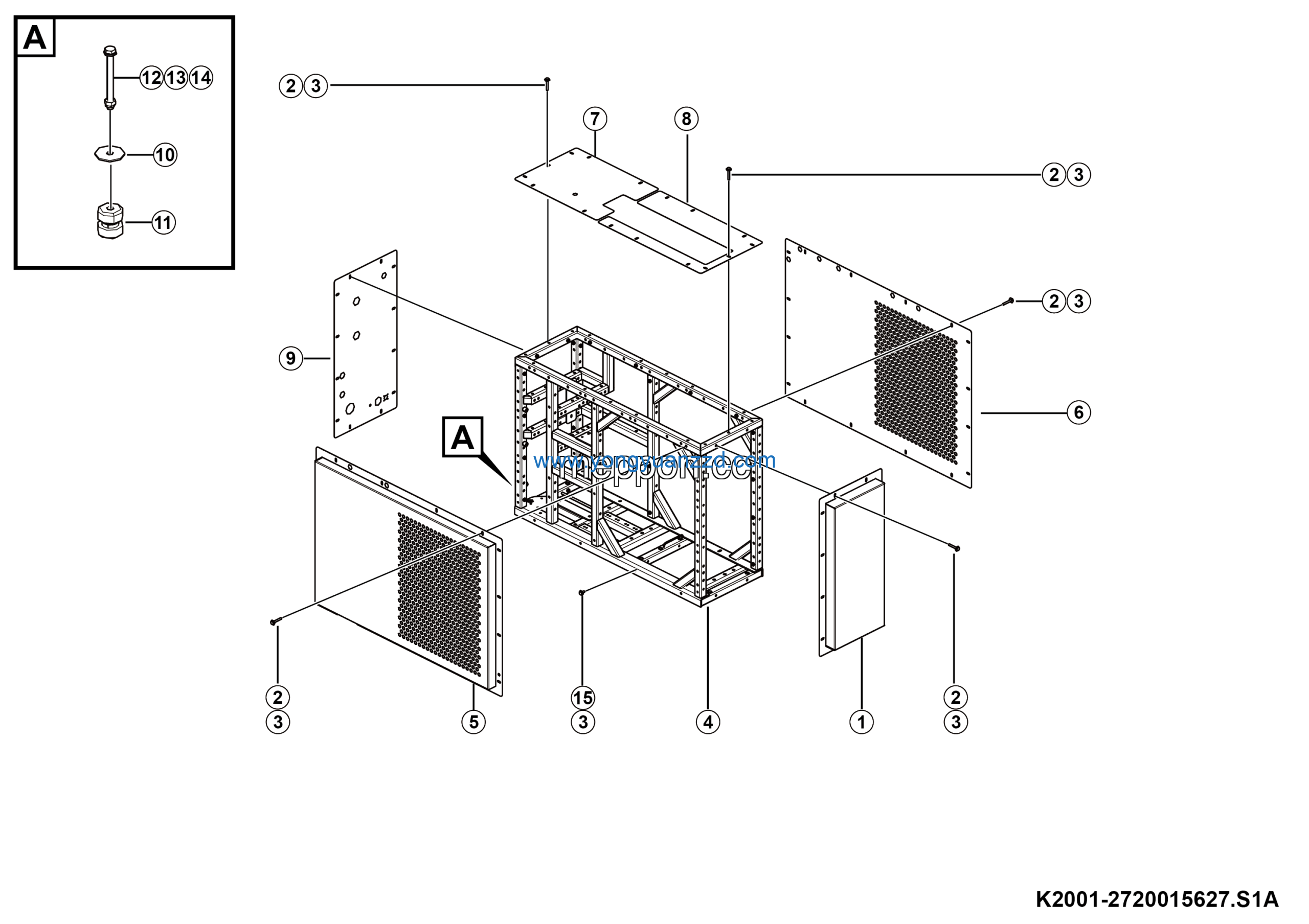

LGMG Off-Highway Dump Truck 2023 – Liquid cooling unit bracket assy – K2001-2720015627.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE86 > C0860E0A0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spacer 55*13*3 | 27200156451 | 8 |
| 2 | Shock absorber-BFR870002-13 | 4190709135 | 8 |
| 3 | Bolt GB5782-M12*120EpZn-10.9 | 4011010510 | 4 |
| 4 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 5 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 6 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 8 |
| 7 | Rear cover plate for liquid cooling unit 826*400*2 | 27200156471 | 1 |
| 8 | BOLT GB5783-M8*55EpZn-8.8 | 4011010609 | 64 |
| 9 | Washer GB96.1-8EpZn-300HV | 4015000256 | 72 |
| 10 | Liquid cooling unit bracket weldment | 27200156281 | 1 |
| 11 | Side cover plate for liquid cooling unit 1192*826*50 | 27200156461 | 1 |
| 12 | Side cover plate for liquid cooling unit 1192*826*2 | 27200156501 | 1 |
| 13 | Upper cover plate for liquid cooling unit 530*400*2 | 27200156481 | 1 |
| 14 | Upper cover plate for liquid cooling unit 662*400*2 | 27200156511 | 1 |
| 15 | Front cover plate for liquid cooling unit 826*400*2 | 27200156491 | 1 |
