LGMG Off-Highway Dump Truck 2023 – Load sensor electrical system – K2001-2720016713.S1A
Category: 2023 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A103

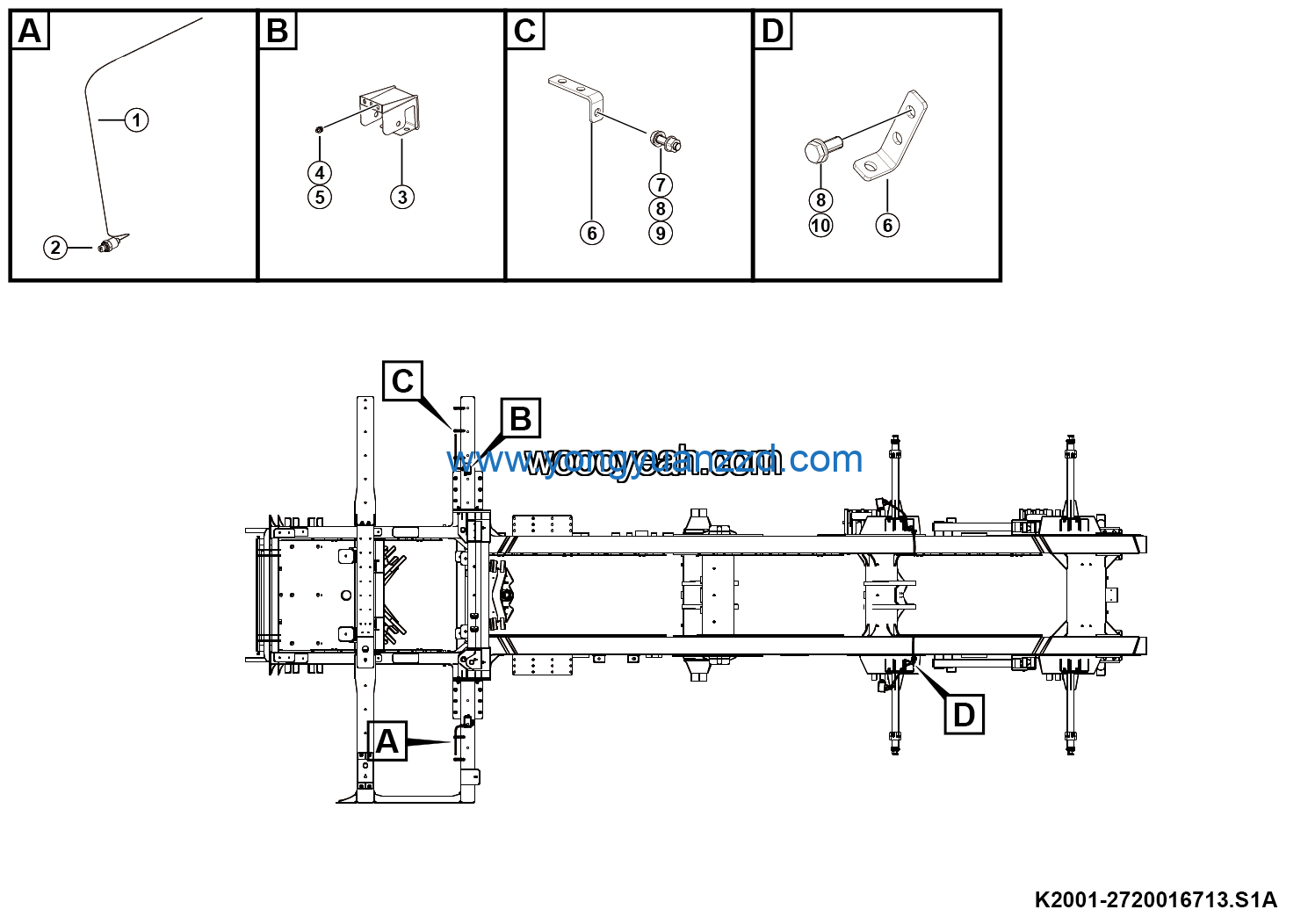

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 2 | Load sensor harness-1000 | 2720015536-002 | 4 |
| 3 | Load sensor B10-R-0400-1-4-M13-300-N-006 | 4130706128 | 4 |
| 4 | Shield weldment | 27200155421 | 4 |
| 5 | Bolt GB5783-M6*10EpZn-8.8 | 4011000866 | 12 |
| 6 | Washer GB97.1-6EpZn-300HV | 4015000207 | 24 |
| 7 | Low voltage cable bracket 80*35*20 | 27200155291 | 10 |
| 8 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 6 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 10 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
