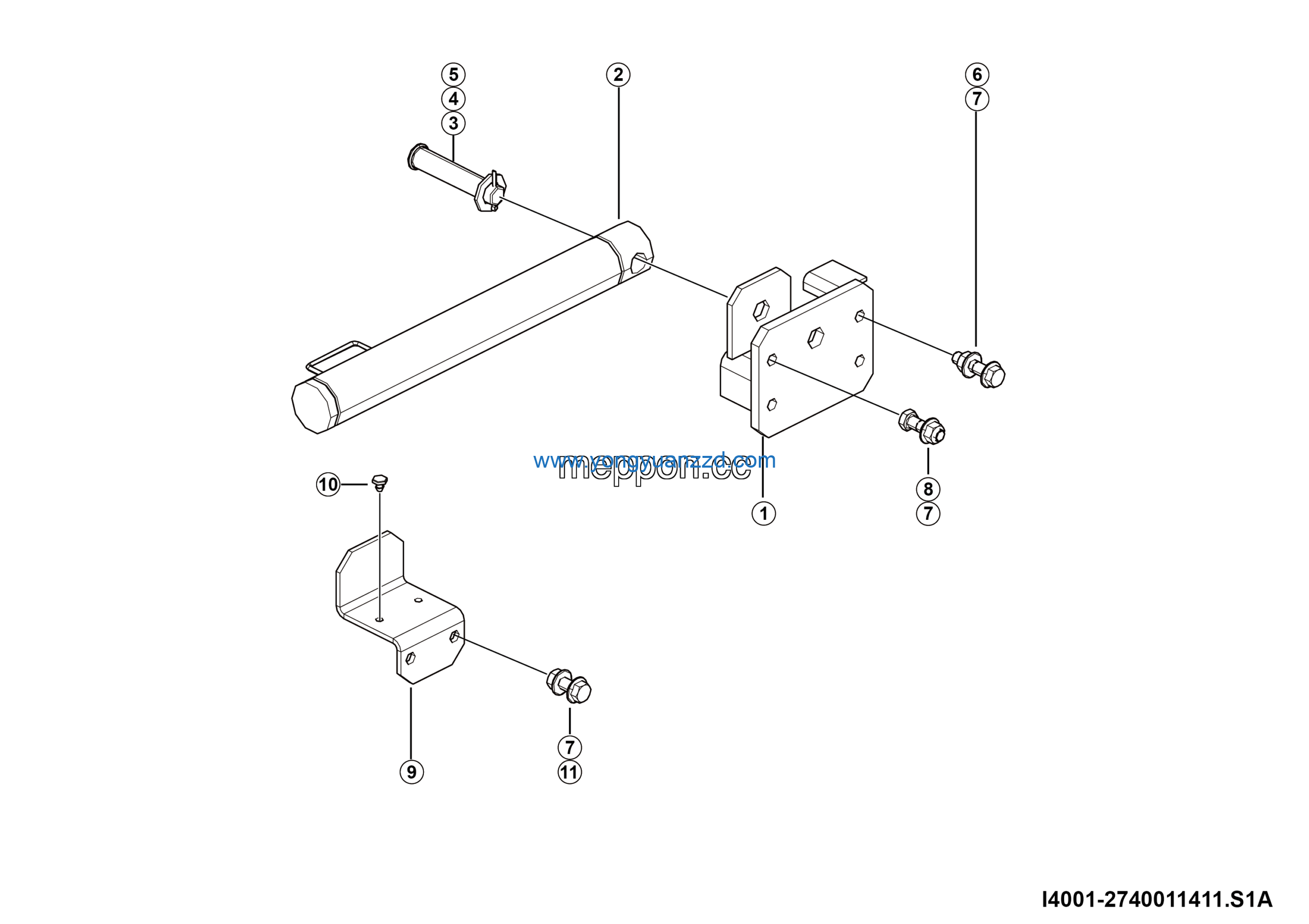

LGMG Off-Highway Dump Truck 2023 – Mounting plate – I4001-2740011411.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A406
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fastening bolt damping block | 27170140901 | 2 |
| 2 | Bolt QC340.2-M18*1.5*50EpZn-10.9 | 4011011598 | 2 |
| 3 | Body right support weldment | 27400114401 | 1 |
| 4 | Plate | 27170263411 | 1 |
| 5 | Hose assembly | 27400103401 | 1 |
| 6 | WASHER GB97.1-34EpZn-300HV | 4015010301 | 1 |
| 7 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 1 |
| 8 | Bolt QC340.2-M18*1.5*70EpZn-10.9 | 4011011599 | 3 |
| 9 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 6 |
| 10 | Bolt GB5785-M18*1.5*60EpZn-10.9 | 4011010150 | 1 |
| 11 | Bracket weldment | 27400114121 | 1 |
