LGMG Off-Highway Dump Truck 2023 – MT narrow body cab lower step assy – L3601-2736014251.S1A
Category: 2023 > Off-Highway Dump Truck > MT86H > M086HW2E0M007

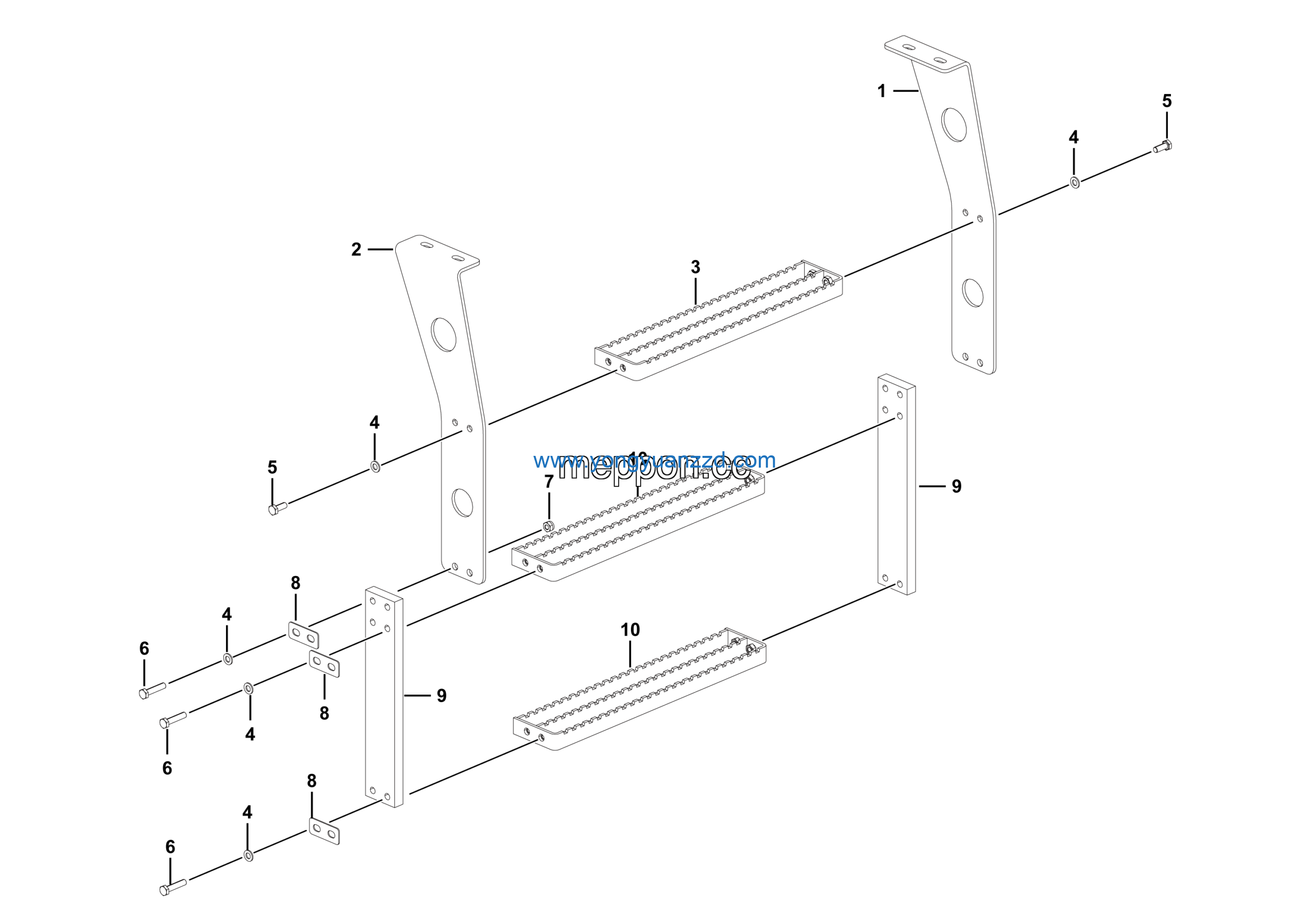

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27360140011 | 2 |
| 2 | Plate | 27360142521 | 1 |
| 3 | Plate | 27360142531 | 1 |
| 4 | Plate | 27360142551 | 1 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 6 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 7 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 12 |
| 8 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 9 | Plate | 27360140021 | 6 |
| 10 | Plate | 27360142541 | 2 |
