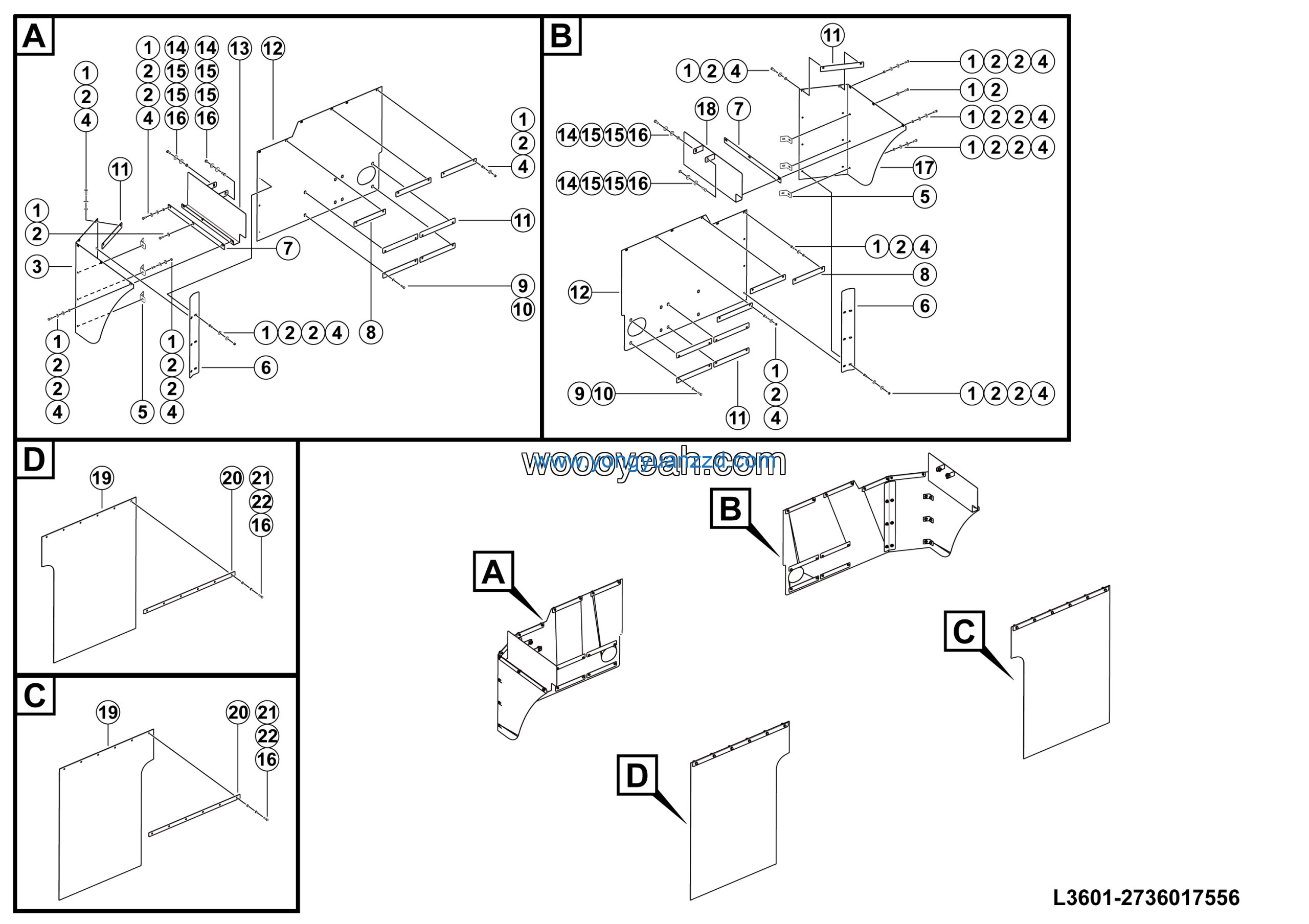

LGMG Off-Highway Dump Truck 2023 – Mudguard assy – L3601-2736017556
Category: 2023 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-8EpZn-300HV | 4015000072 | 16 |
| 2 | Plate | 27360139161 | 14 |
| 3 | Front mudguard 836.5*1072*2 | 27360175671 | 2 |
| 4 | Protective cover welding | 27360175581 | 1 |
| 5 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 6 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
| 8 | Mudguard | 27360167542 | 1 |
| 9 | Protective cover welding | 27360175601 | 1 |
| 10 | Rear mudguard 1332*1000*5 | 27360175571 | 2 |
| 11 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 46 |
| 12 | Plate | 27360139141 | 2 |
| 13 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 12 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 15 | Washer GB96.1-8EpZn-300HV | 4015000256 | 74 |
| 16 | Front side mudguard | 27360167552 | 1 |
| 17 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 44 |
| 18 | Plate | 27360139191 | 6 |
| 19 | Hold-down plate iv | 27360167862 | 2 |
| 20 | Hold-down strip | 27360167691 | 2 |
| 21 | Plate | 27360144111 | 2 |
| 22 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 16 |
