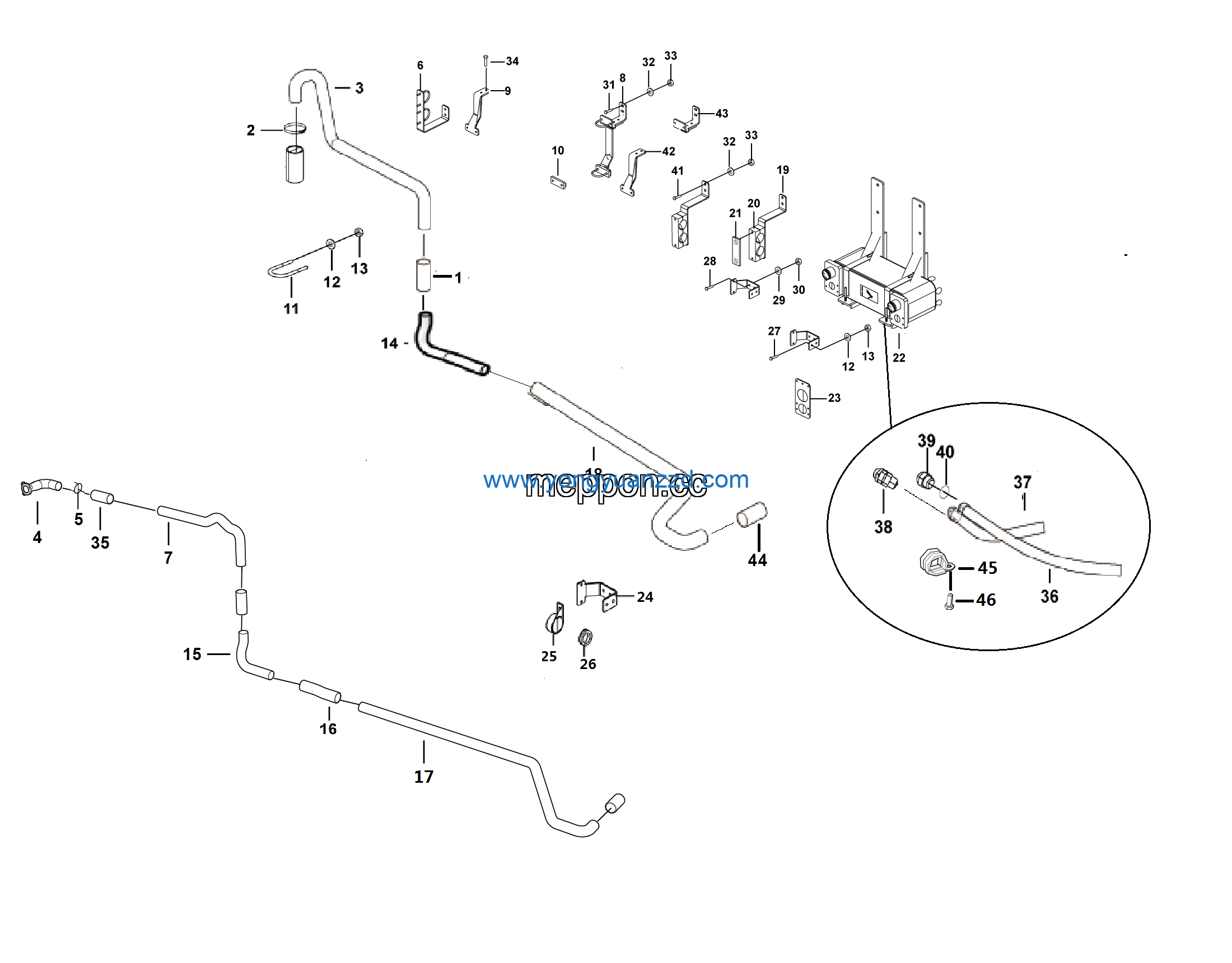

LGMG Off-Highway Dump Truck 2023 – Oil Radiator assy – A0300-2703014604

Category: 2023 > Off-Highway Dump Truck > CMT106 > C1060W3E0A109

No.	Part Name	Part Number	Qty
1	Plate	27030122771	2
2	Ubolt	27030120641	6
3	Washer GB96.1-8EpZn-300HV	4015000256	16
4	Nut GB6170-M8EpZn-8	4013000033	28
5	Pipe	27030122741	1
6	Pipe	27030123211	1
7	Pipe	27030142431	2
8	Pipe	27030123221	1
9	Pipe	27030123241	1
10	COVER ASSEMBLY	27030113822	2
11	Pipe	27030143781	2
12	WITHIN BEAM	27030112491	4
13	RIGHT CARLING	27030112501	2
14	Oil radiator assembly	27030146131	1
15	Support4	27030122451	2
16	Plate	27030123201	2
17	Pipe clamp LGB167-1060	4041000867	2
18	Cushion sleeve LGB123-1060	4041000866	2
19	Bolt GB5783-M8*30EpZn-8.8	4011000107	4
20	Bolt GB5783-M12*30EpZn-8.8	4011000089	2
21	Washer GB97.1-12EpZn-300HV	4015000168	2
22	T-bolt clamp φ68-φ76	4190707306	22
23	Nut GB6170-M12EpZn-8	4013000011	2
24	Bolt GB5782-M10*50EpZn-8.8	4011000048	10
25	Washer GB97.1-10EpZn-300HV	4015000162	27
26	Nut GB6185.1-M10EpZn-8	4013010119	19
27	Bolt GB5782-M10*35EpZn-8.8	4011010164	4
28	Pipe	27030145771	1
29	Pipe KA201-20-1000	4110705207-001	1
30	Pipe component IH001506	4110702838-001	1
31	Straight joint	4110704929	1
32	135°Joint	4110704928	3
33	Pipe	27030122751	1
34	O-ring 37.47*3（IH004104）	4110702846	4
35	Bolt GB5782-M10*100EpZn-8.8	4011000817	4
36	Plate	27030123181	1
37	Plate	27030123191	1
38	Pipe	27030144141	3
39	Pipe clamp R-D40-M10	4190707973	2
40	Bolt GB5783-M10*25EpZn-10.9	4011000993	9
41	Pipe	27030121391	1
42	Pipe	27030122951	1
43	Support1	27030122671	1
44	Pipe	27030123231	1
45	Support2	27030122681	1
46	Support3	27030122691	1
