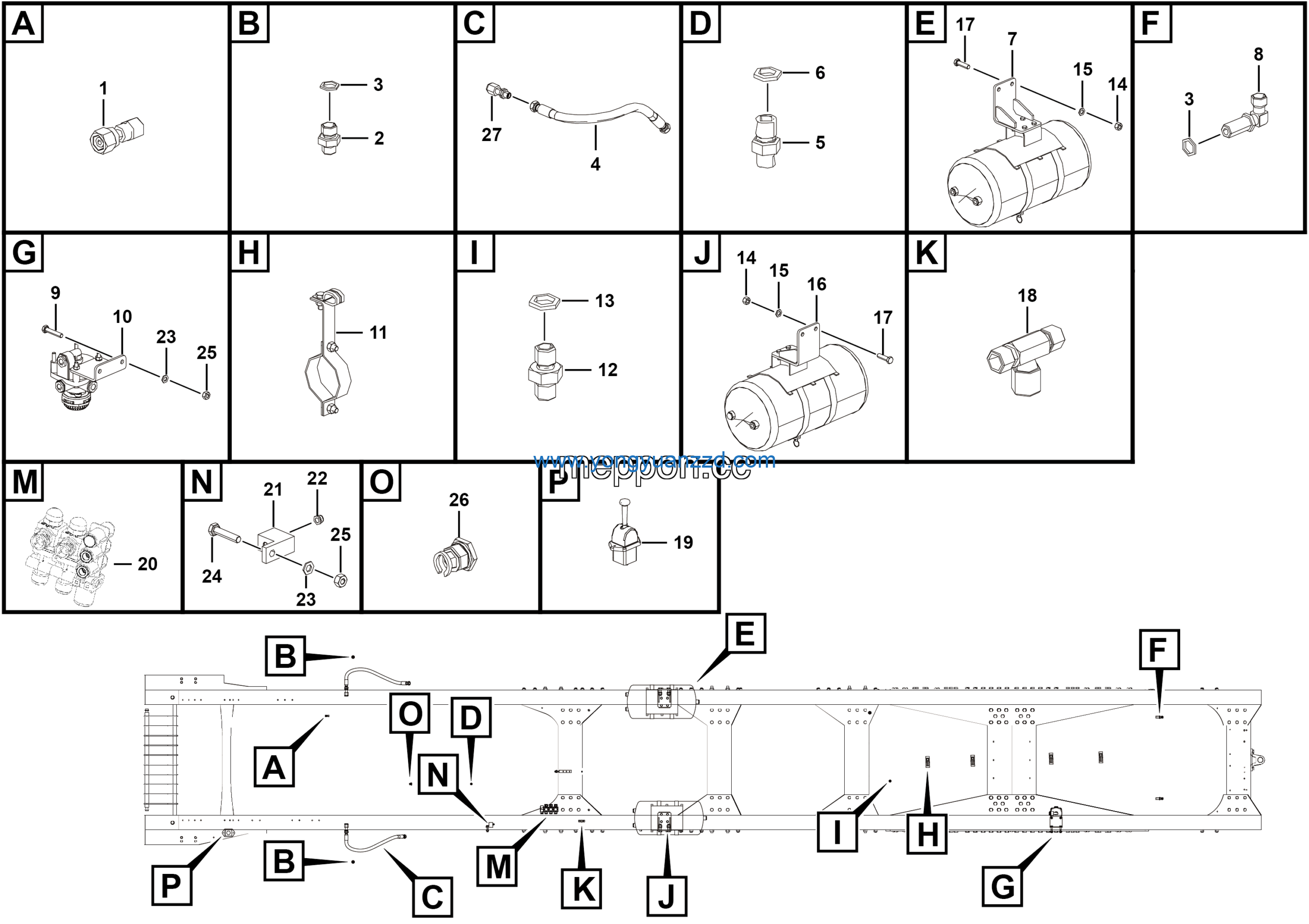

LGMG Off-Highway Dump Truck 2023 – PARKING BRAKE ASSEMBLY – J1101-2711010793
Category: 2023 > Off-Highway Dump Truck > MT86H > M086HWG11
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Relay valve installation assembly | 27100117061 | 1 |
| 2 | Asm | 27110107851 | 4 |
| 3 | Joint M12-M12 | 27110101331 | 1 |
| 4 | Washer JB982-12 | 4015000327 | 1 |
| 5 | Nut GB6170-M16EpZn-8 | 4013000016 | 4 |
| 6 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 7 | Asm | 27110107901 | 1 |
| 8 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 4 |
| 9 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 10 | Hand brake valve | 4120000134 | 1 |
| 11 | Reducing joint | 27110101891 | 1 |
| 12 | Module installation assembly | 27110106011 | 1 |
| 13 | Pressure switch block | 27110101381 | 1 |
| 14 | Seat | 27100121061 | 1 |
| 15 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 16 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 1 |
| 17 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 18 | Nut seat | 27110107611 | 1 |
| 19 | Nipple | 27100118011 | 2 |
| 20 | CONNECTOR | 27100100661 | 4 |
| 21 | Washer JB982-16 | 4015000141 | 6 |
| 22 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 23 | M10-M12 Joint | 27100102051 | 1 |
| 24 | Washer JB982-10 | 4015000140 | 1 |
| 25 | Asm | 27110107891 | 1 |
| 26 | M16-M18 rectangular connector | 27100100641 | 2 |
| 27 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
