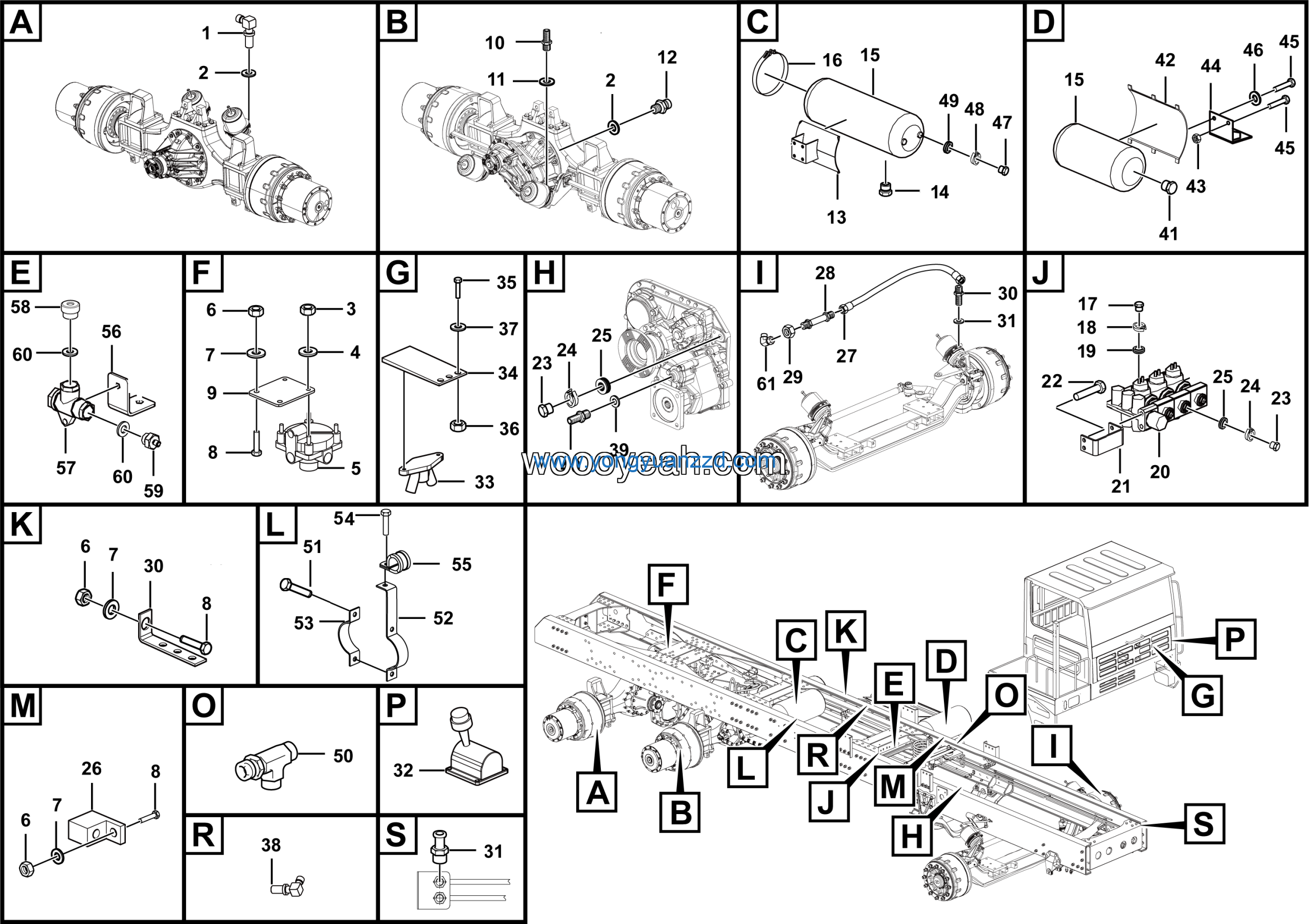

LGMG Off-Highway Dump Truck 2023 – Parking brake assy – J1100-2711010330
Category: 2023 > Off-Highway Dump Truck > MT60 > M060DW2E0M108
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Joint M12-M12 | 27110101331 | 1 |
| 2 | Washer JB982-12 | 4015000327 | 1 |
| 3 | CONNECTOR | 27100100661 | 3 |
| 4 | 30l reservoir bracket | 27110102131 | 1 |
| 5 | Drain valve | 4120000200 | 2 |
| 6 | Air reservoir 30L（246） | 4120000143 | 2 |
| 7 | Hose clamp φ246-φ250 | 4120000177 | 4 |
| 8 | Nut seat NG6 | 4120000213 | 3 |
| 9 | Clip spring NG6 | 4120000212 | 3 |
| 10 | Elastic element NG6 | 4120000211 | 3 |
| 11 | M16-M18 rectangular connector | 27100100641 | 3 |
| 12 | Two solenoid valve assy | 4120001139 | 1 |
| 13 | Plate | 27100109181 | 1 |
| 14 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 11 |
| 15 | Nut seat NG8 | 4120000194 | 4 |
| 16 | Elastic element NG8 | 4120000197 | 4 |
| 17 | Clip spring NG8 | 4120000196 | 4 |
| 18 | Pressure switch block | 27110101381 | 1 |
| 19 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 20 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 21 | Nut M18 | 4120000230 | 4 |
| 22 | Washer JB982-16 | 4015000141 | 6 |
| 23 | Bracket 1 | 27100103561 | 2 |
| 24 | connector | 27110101371 | 1 |
| 25 | Hand brake valve | 4120000134 | 1 |
| 26 | Button valve | 4120001046 | 1 |
| 27 | Foot pedal | 27110101572 | 1 |
| 28 | BOLT GB5783-M4*25EpZn-8.8 | 4011010146 | 3 |
| 29 | Nut GB6170-M4EpZn-8 | 4013000025 | 6 |
| 30 | Washer GB97.1-4EpZn-300HV | 4015000135 | 3 |
| 31 | Reducing joint | 27110101891 | 1 |
| 32 | Washer JB982-10 | 4015000140 | 1 |
| 33 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 34 | M10-M12 Joint | 27100102051 | 1 |
| 35 | Plug NG12-M22*1.5 | 4120000201 | 1 |
| 36 | Bracket of reservior | 27110102721 | 1 |
| 37 | Nut GB6170-M16EpZn-8 | 4013000016 | 2 |
| 38 | Air reservoir fixed bracket assembly | 27110102971 | 1 |
| 39 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 2 |
| 40 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 41 | Nut seat NG12 | 4120000190 | 5 |
| 42 | Clip spring NG12 | 4120000192 | 5 |
| 43 | Elastic element NG12 | 4120000193 | 5 |
| 44 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 45 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 46 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 47 | Support | 27110103051 | 4 |
| 48 | Support | 27110103061 | 4 |
| 49 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 8 |
| 50 | CLAMP | 27110102381 | 4 |
| 51 | Two-way check valve bracket | 27110101981 | 1 |
| 52 | Dual way check valve | 4120000361 | 1 |
| 53 | Joint M22-M12 | 27100104611 | 2 |
| 54 | Adapter M22-NG6 | 27110101971 | 1 |
| 55 | Relay valve | 4120001087 | 1 |
| 56 | Washer JB982-22 | 4015000092 | 3 |
| 57 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 58 | Nut GB6170-M10EpZn-8 | 4013000007 | 22 |
| 59 | Washer GB97.1-10EpZn-300HV | 4015000162 | 18 |
| 60 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 5 |
| 61 | Relay valve bracket | 27100108801 | 1 |
