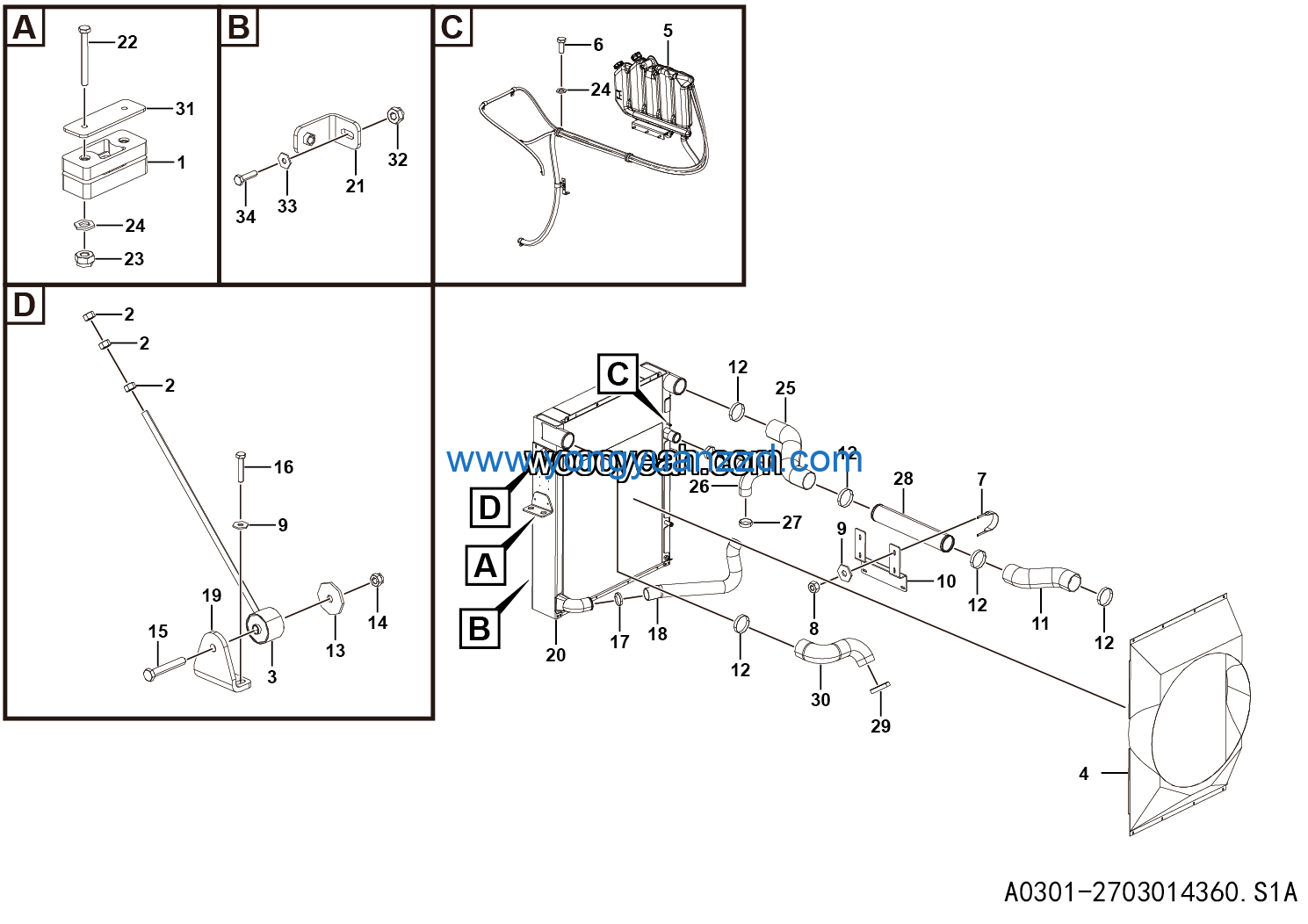

LGMG Off-Highway Dump Truck 2023 – Radiator assy – A0301-2703014360.S1A
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M066
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27030143101 | 1 |
| 2 | Pipe | 27030141391 | 1 |
| 3 | T-Hoop φ108-φ116 | 4190707345 | 5 |
| 4 | Plate | 27030109731 | 2 |
| 5 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 6 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 7 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 5 |
| 8 | T-Clamp 78-86 | 4190002212 | 2 |
| 9 | Pipe | 27030125991 | 1 |
| 10 | Support | 27030109692 | 2 |
| 11 | Radiator shock absorber assy | 4110001445 | 2 |
| 12 | Radiator assy M9116124 | 4110705267 | 1 |
| 13 | Pipe | 27030114751 | 1 |
| 14 | Bolt GB5783-M10*90EpZn-8.8 | 4011000956 | 4 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 16 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 17 | Pipe | 27030123841 | 1 |
| 18 | Pipe | 27030143611 | 1 |
| 19 | T-bolt clamp φ68-φ76 | 4190707306 | 2 |
| 20 | Inlet pipe, radiator, outlet pipe,compressor to inlet pipe,raidator | 27030134531 | 1 |
| 21 | T-Hoop φ98-φ106 | 4190707576 | 1 |
| 22 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 23 | Pipe | 27030143631 | 1 |
| 24 | Plate | 27030109021 | 2 |
| 25 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 1 |
| 26 | Washer GB96.1-8EpZn-300HV | 4015000256 | 1 |
| 27 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 1 |
| 28 | Radiator bar | 4110001451 | 2 |
| 29 | Wind guide cover DB1364 | 4110705268 | 1 |
| 30 | Tank assemble | 27030143621 | 1 |
| 31 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 32 | Exhaust pipe strap | 27240102332 | 2 |
| 33 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 34 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
